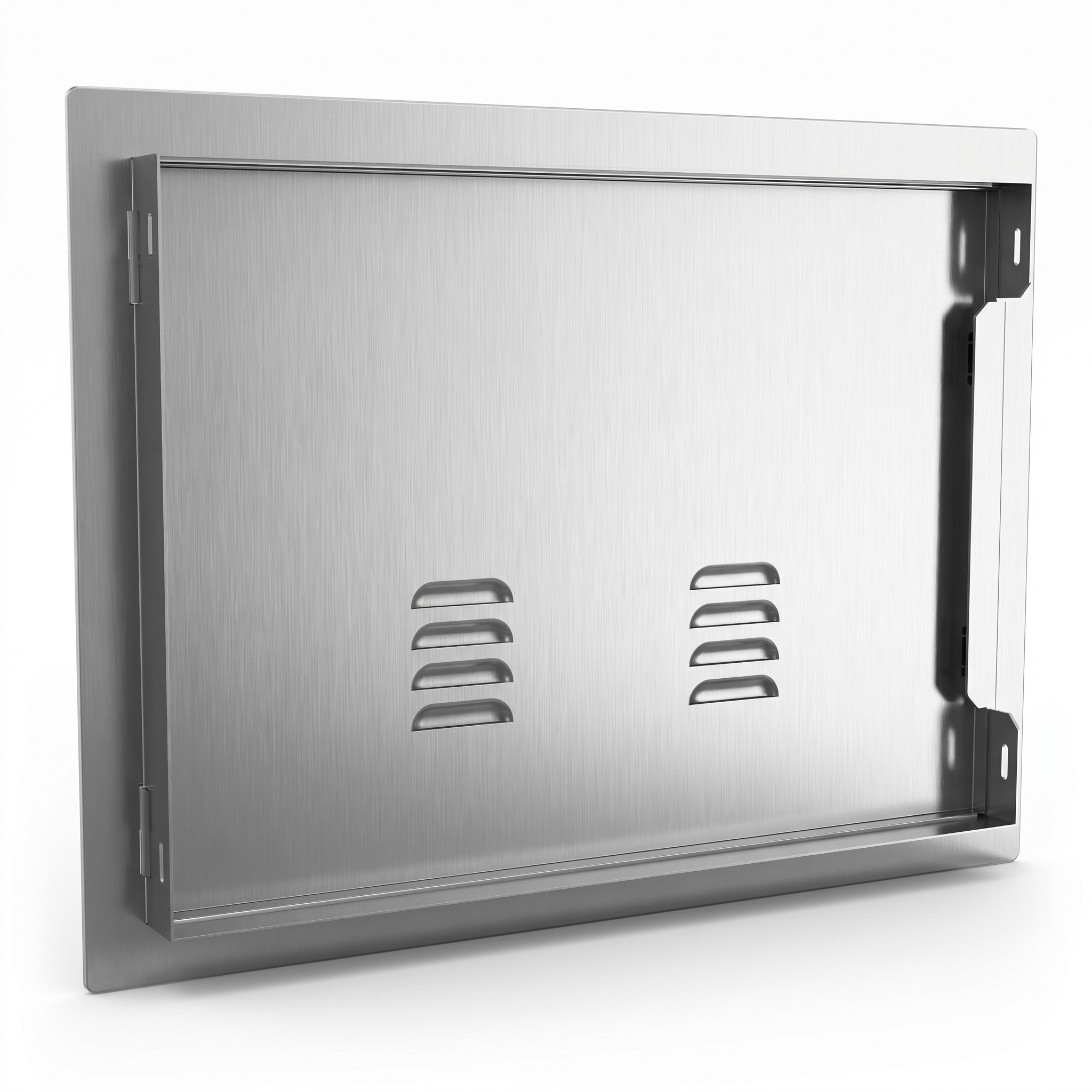

1 / 5Classic Series 17" x 24" Right Swing Horizontal Vented Door - A-DH1724
★★★★☆4.2 · 5 reviewsKey features
- Size: 27" W x 20" H x 1-5/8" D
- Cut-out: 24-1/4" W x 17-1/4" H
- Vented (bottom louvers), right swing (the left version is item A-DH1724-L)
- Opens 180 degrees on exposed hinges
- Top and bottom magnets with a steel strike plate
- Depth to frame hole: 1"; fits a typical 4" island frame
Description

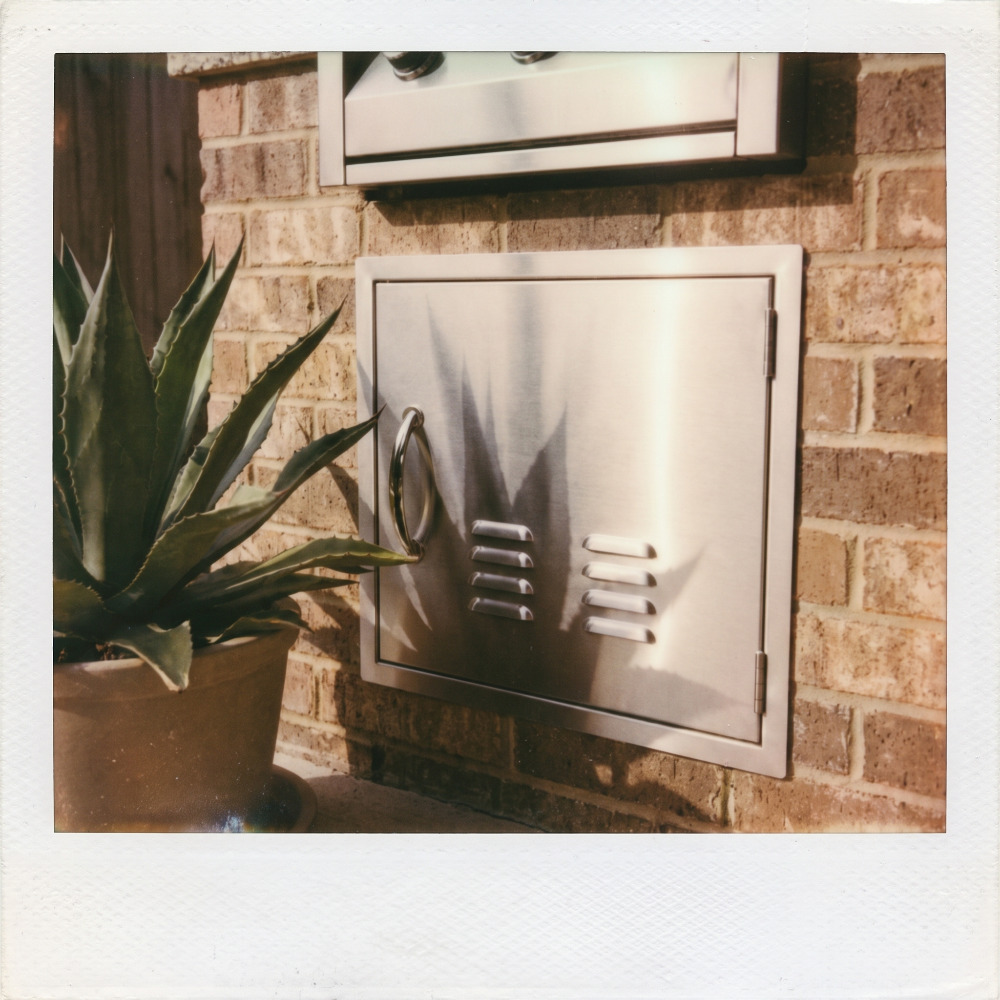

The Classic Series 17" x 24" Right Swing Horizontal Vented Door (A-DH1724) opens into the island, and its bottom louvers let air move through, which matters where a propane tank or gas lines are stored.
It measures 27" W x 20" H x 1-5/8" D and fits a 24-1/4" W x 17-1/4" H cut-out. The depth from the face to the frame mounting hole is 1", and it fits a typical 4" island frame. It weighs 11-1/2 lbs.

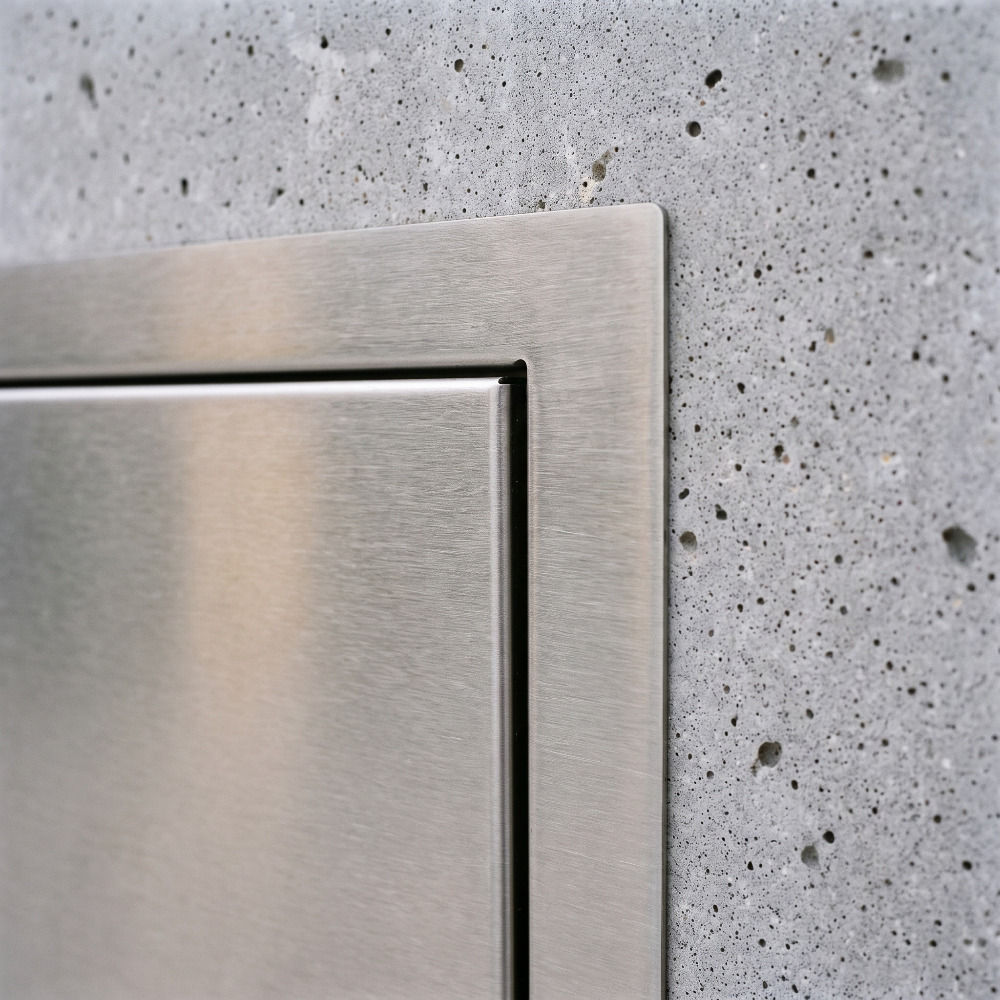

The frame is 16 gauge 304 stainless steel and the door panel is 18 gauge 304 stainless steel, finished in No. 4 light brushed with the flush style of the Classic Series. This is the right swing version, and a left swing version is also available. It opens 180 degrees on exposed hinges, top and bottom magnets close against a steel strike plate, and it comes with the Polished Chrome Handle (zinc alloy, chrome plated). See our warranty page for coverage.
| Name | Classic Series 17" x 24" Right Swing Horizontal Vented Door - A-DH1724 |
|---|---|
| Item No. | A-DH1724 |
| Series | Classic Series Flush Style |
| Product size | 27" W x 20" H x 1-5/8" D |
| Cut-out | 24-1/4" W x 17-1/4" H |
Specifications
| Type | Access door |
|---|---|
| Series | Classic Series Flush Style |
| Style | Classic |
| Width | 27" |
| Depth | 1-5/8" |
| Height | 20" |
| Dimensions | 27" W x 20" H x 1-5/8" D |
| Cut-Out Width | 24-1/4" |
| Cut-Out Height | 17-1/4" |
| Cut-Out Size | 24-1/4" W x 17-1/4" H |
| Doors | 1 |
| Door Swing | Right swing (the left version is item A-DH1724-L) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 11.5 lbs |
| Brand | Sunstone |
| Item Number | A-DH1724 |
| Venting | Vented (bottom louvers) |
| Door Opening | 180 degrees |
| Hinges | Exposed |
| Depth To Frame Hole | 1" |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $235.00 | $235.00 | $198.00 | $198.00 | $235.00 |
| SKU | A-DH1724 | A-DV1724 | A-DH1420 | A-DV1420 | DV1724 |
| Type | Access door | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style |
| Style | Classic | Classic | Classic | Classic | Classic |
| Width | 27" | 20" | 23" | 17" | 20" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" |
| Height | 20" | 27" | 17" | 23" | 27" |
| Cut-Out Width | 24-1/4" | 17-1/4" | 20-1/4" | 14-1/4" | 17-1/4" |
| Cut-Out Height | 17-1/4" | 24-1/4" | 14-1/4" | 20-1/4" | 24-1/4" |
| Doors | 1 | 1 | 1 | 1 | 1 |
| Door Swing | Right swing (the left version is item A-DH1724-L) | Right swing (the left version is item A-DV1724-L) | Right swing (the left version is item A-DH1420-L) | Right swing (the left version is item A-DV1420-L) | Reversible: rotate 180 degrees for left or right swing |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Weight | 11.5 lbs | Not listed | 11 lbs | Not listed | 11.5 lbs |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | A-DH1724 | A-DV1724 | A-DH1420 | A-DV1420 | DV1724 |
| Venting | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Non-vented |
| Door Opening | 180 degrees | 180 degrees | 180 degrees | 180 degrees | 180 degrees |
| Hinges | Exposed | Exposed | Exposed | Exposed | Exposed |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) |
| Depth To Frame Hole | 1" | 1" | 1" | 1" | Not listed |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (6)
ODK spec sheets
Installation guides
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 48 hours after delivery.
Receiving Your Shipment
If you received an item that appears to have been damaged in-transit, call us immediately at 888-934-9449 or 512-487-5116, preferably while the driver is still there.
Inspect all freight before signing the driver's receipt. If damage is found, do not reject the shipment, note the damage on the receipt and contact us. For concealed damage, a claim must be filed within 48 hours of delivery.
FedEx and UPS claims are usually resolved within 14 business days. Freight shipper claims may take up to 120 calendar days.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
Items cannot have been installed or used. Customer is responsible for all return freight charges, unless the error is on our part. All returned goods must be in new condition and in original cartons, well packed.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
This 17" x 24" vented door is a good addition to my outdoor kitchen. The right swing works perfectly for my setup, and the ventilation is a nice touch for keeping things dry inside. Installation was straightforward, though I did need to make sure my opening was perfectly square.
The Sunstone access door is okay. The 17"x24" size fit my island well, and the vented design is good for air circulation. However, for the price, I expected a slightly more robust feel to the latch mechanism. It does the job, but it's not outstanding.
Wow, this 17" x 24" right swing door is exactly what my outdoor kitchen needed! The ventilation is crucial for keeping my propane tank area aired out, and the stainless steel looks fantastic. Super easy to install and feels very durable.
I'm really impressed with this Sunstone access door. The 17"x24" size is ideal for my island, and the right swing is super convenient. The vented design is a smart feature, and the overall construction feels incredibly solid and built to last.
This horizontal access door was a breeze to install into my outdoor kitchen frame. The 17"x24" dimensions were accurate, and the right swing works perfectly for my layout. The vented aspect is a definite plus for air flow.
