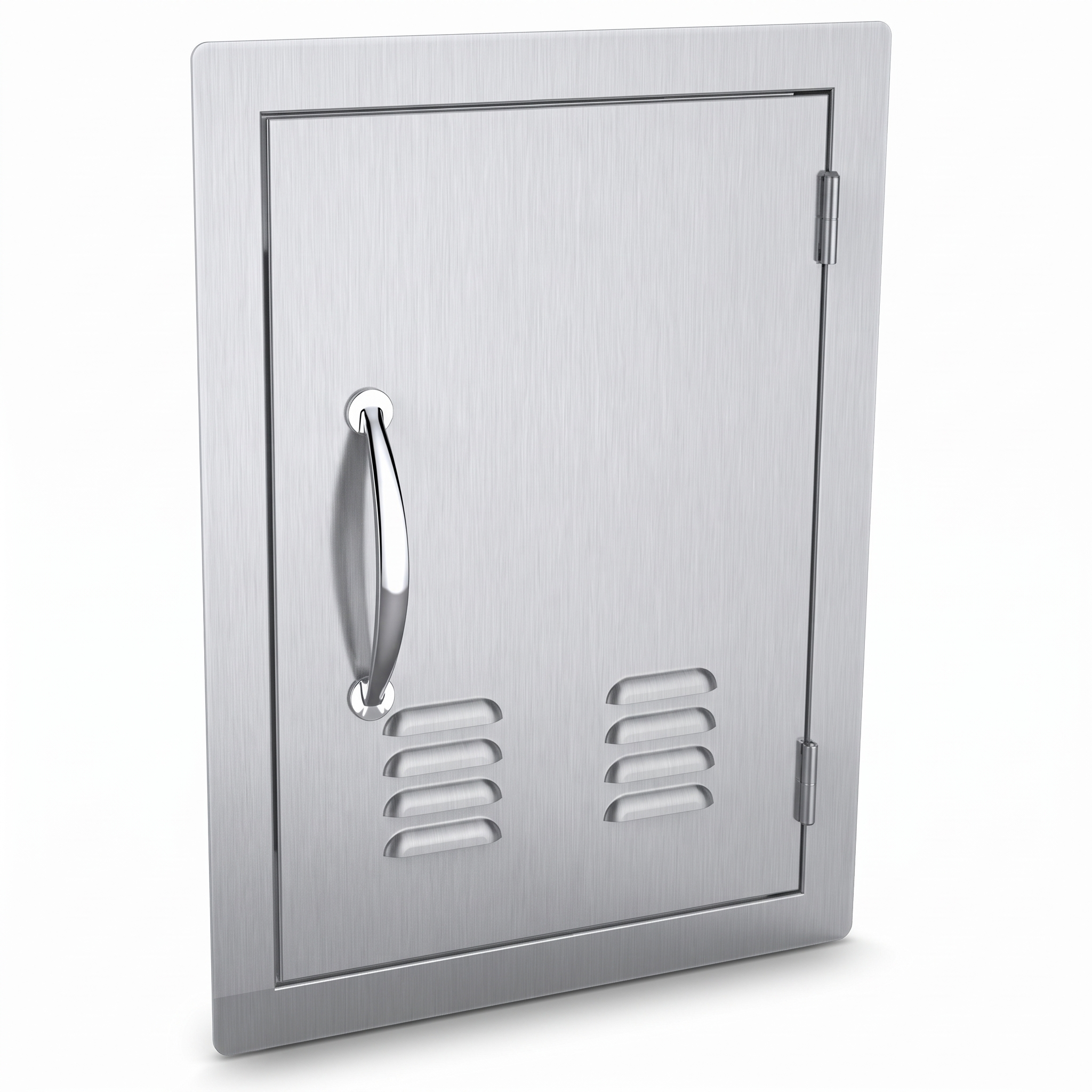

1 / 7Classic Series 14" x 20" Right Swing Vertical Vented Door - A-DV1420
★★★★★5.0 · 2 reviewsKey features
- Size: 17" W x 23" H x 1-5/8" D
- Cut-out: 14-1/4" W x 20-1/4" H
- Vented (bottom louvers), right swing (the left version is item A-DV1420-L)

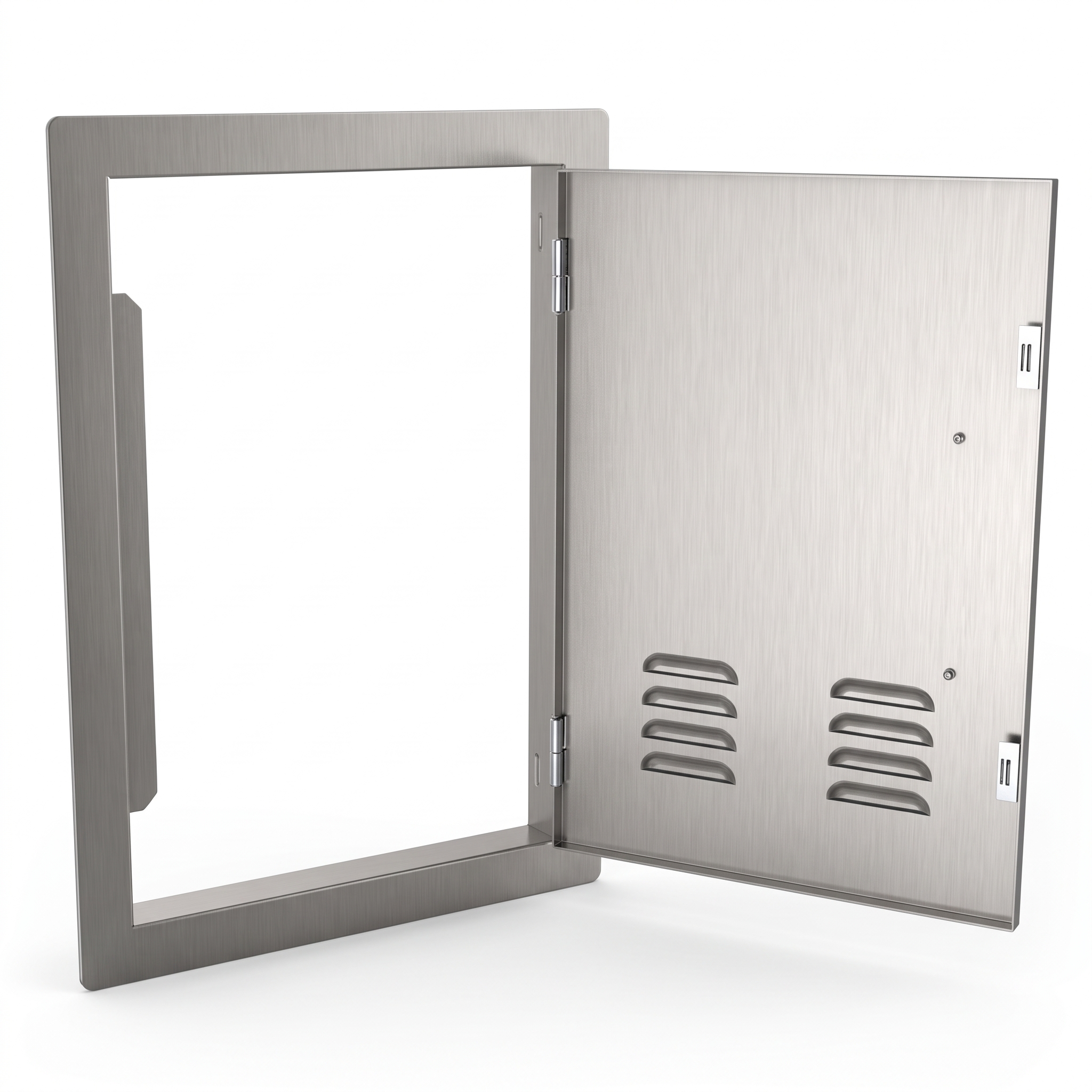

- Opens 180 degrees on exposed hinges
- Depth to frame hole: 1"; fits a typical 4" island frame
- 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel; No. 4 light brushed finish
Description
The Classic Series 14" x 20" Right Swing Vertical Vented Door (A-DV1420) opens into the island, and its bottom louvers let air move through, which matters where a propane tank or gas lines are stored.

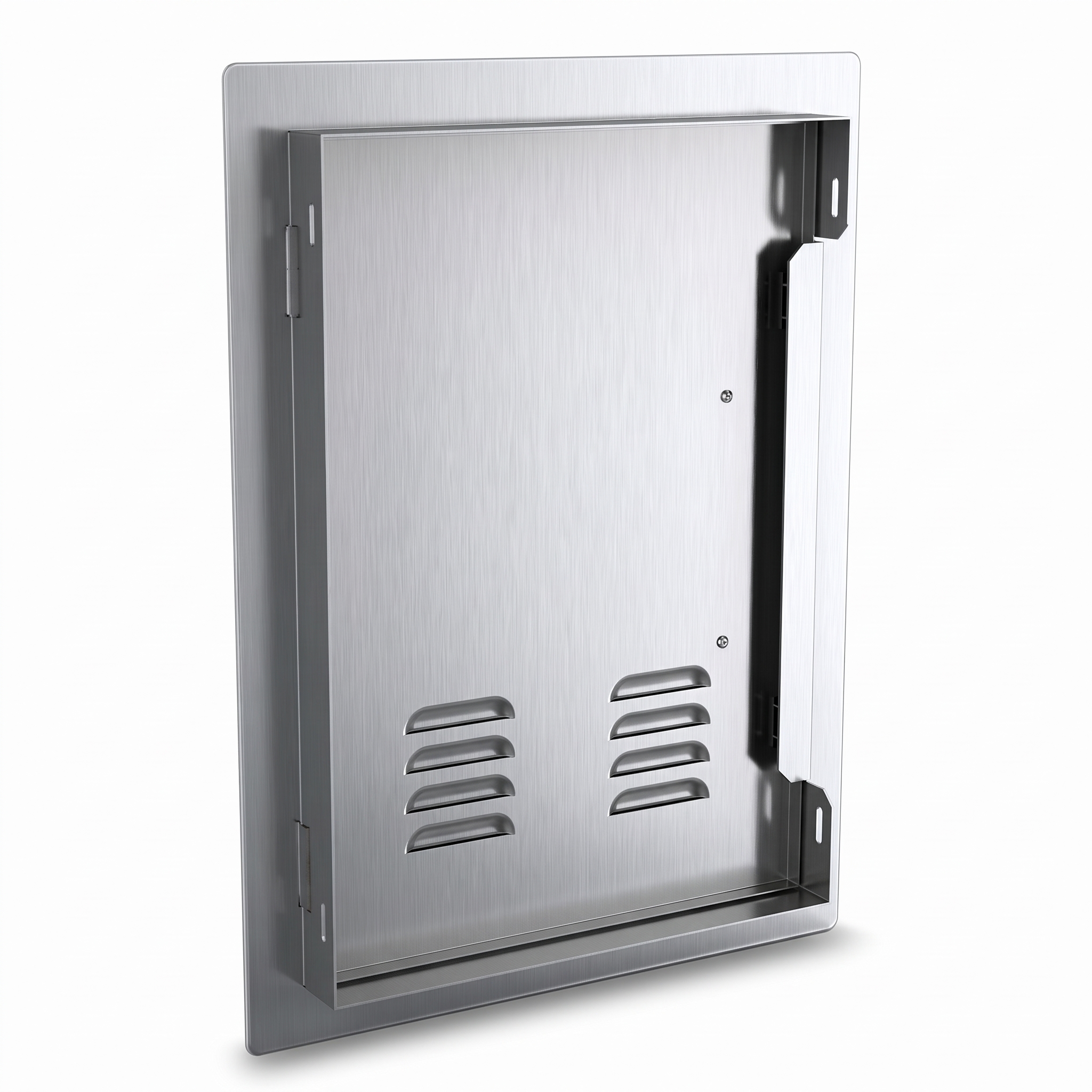

It measures 17" W x 23" H x 1-5/8" D and fits a 14-1/4" W x 20-1/4" H cut-out. The depth from the face to the frame mounting hole is 1", and it fits a typical 4" island frame.

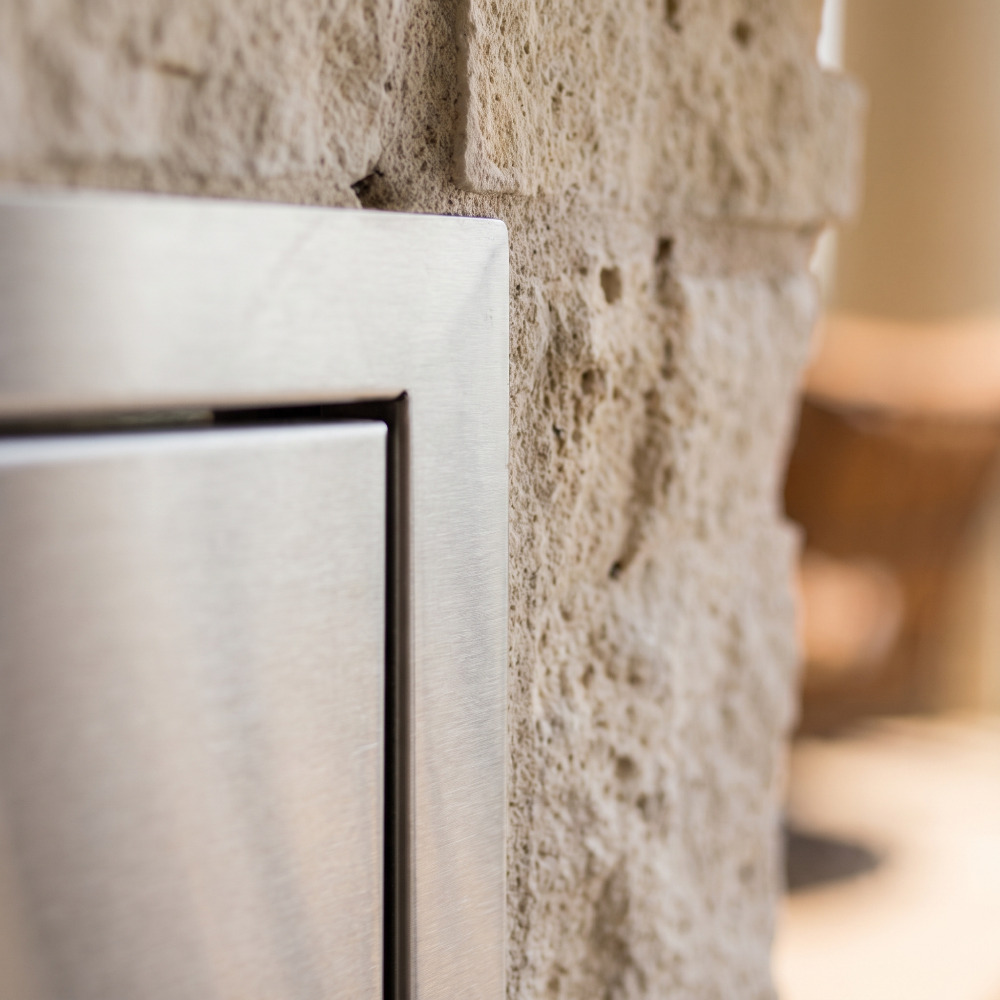

The frame is 16 gauge 304 stainless steel and the door panel is 18 gauge 304 stainless steel, finished in No. 4 light brushed with the flush style of the Classic Series. This is the right swing version, and a left swing version is also available. It opens 180 degrees on exposed hinges and comes with the Polished Chrome Handle (zinc alloy, chrome plated). See our warranty page for coverage.
| Name | Classic Series 14" x 20" Right Swing Vertical Vented Door - A-DV1420 |
|---|---|
| Item No. | A-DV1420 |
| Series | Classic Series Flush Style |
| Product size | 17" W x 23" H x 1-5/8" D |
| Cut-out | 14-1/4" W x 20-1/4" H |
Specifications
| Type | Access door |
|---|---|
| Series | Classic Series Flush Style |
| Style | Classic |
| Width | 17" |
| Depth | 1-5/8" |
| Height | 23" |
| Dimensions | 17" W x 23" H x 1-5/8" D |
| Cut-Out Width | 14-1/4" |
| Cut-Out Height | 20-1/4" |
| Cut-Out Size | 14-1/4" W x 20-1/4" H |
| Doors | 1 |
| Door Swing | Right swing (the left version is item A-DV1420-L) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Brand | Sunstone |
| Item Number | A-DV1420 |
| Venting | Vented (bottom louvers) |
| Door Opening | 180 degrees |
| Hinges | Exposed |
| Depth To Frame Hole | 1" |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $198.00 | $198.00 | $235.00 | $235.00 | $126.00 |
| SKU | A-DV1420 | A-DH1420 | A-DH1724 | A-DV1724 | A-DH1420-L |
| Type | Access door | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style |
| Style | Classic | Classic | Classic | Classic | Classic |
| Width | 17" | 23" | 27" | 20" | 23" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" |
| Height | 23" | 17" | 20" | 27" | 17" |
| Cut-Out Width | 14-1/4" | 20-1/4" | 24-1/4" | 17-1/4" | 20-1/4" |
| Cut-Out Height | 20-1/4" | 14-1/4" | 17-1/4" | 24-1/4" | 14-1/4" |
| Doors | 1 | 1 | 1 | 1 | 1 |
| Door Swing | Right swing (the left version is item A-DV1420-L) | Right swing (the left version is item A-DH1420-L) | Right swing (the left version is item A-DH1724-L) | Right swing (the left version is item A-DV1724-L) | Left swing (the right version is item A-DH1420) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Weight | Not listed | 11 lbs | 11.5 lbs | Not listed | 11 lbs |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | A-DV1420 | A-DH1420 | A-DH1724 | A-DV1724 | A-DH1420-L |
| Venting | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) |
| Door Opening | 180 degrees | 180 degrees | 180 degrees | 180 degrees | 180 degrees |
| Hinges | Exposed | Exposed | Exposed | Exposed | Exposed |
| Depth To Frame Hole | 1" | 1" | 1" | 1" | 1" |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
