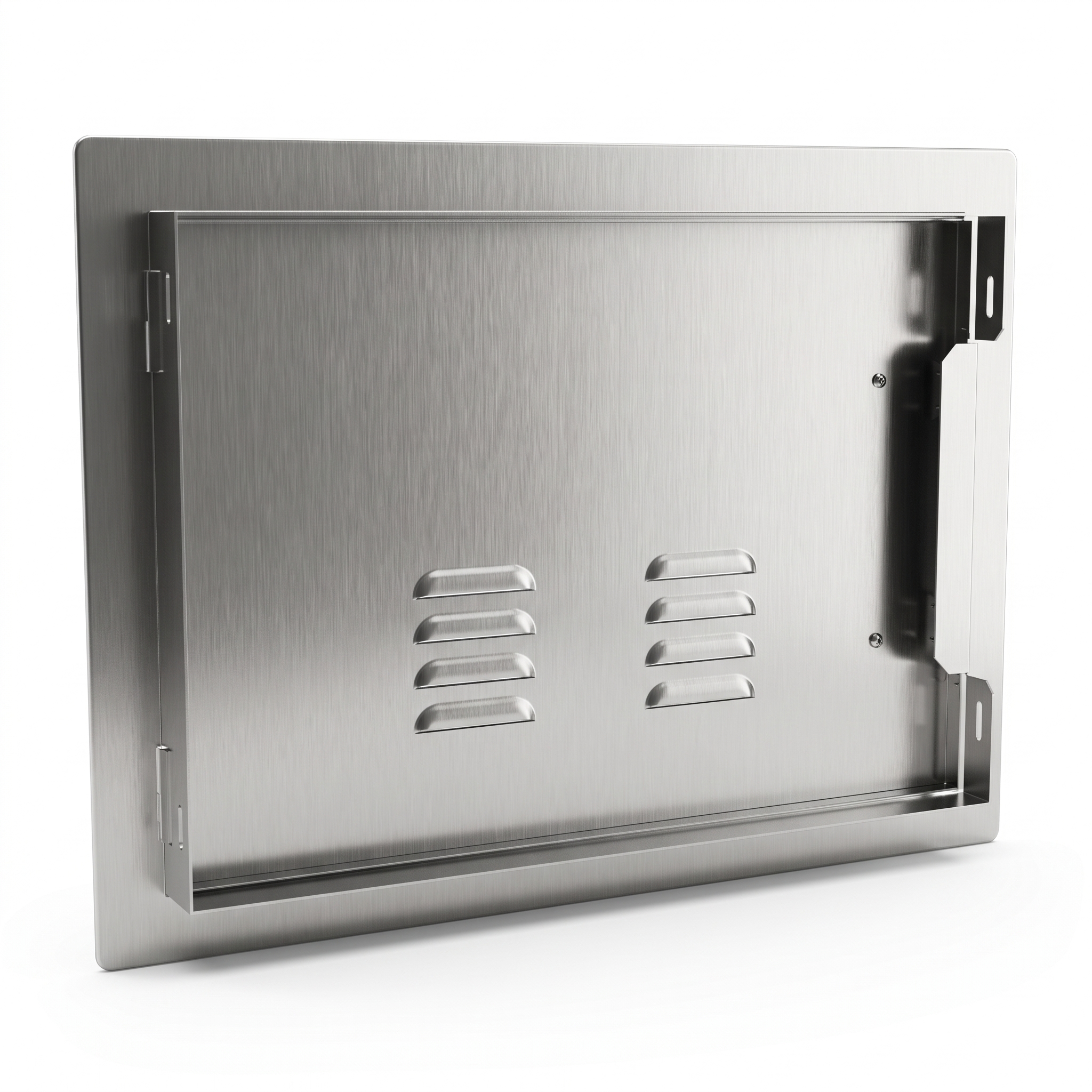

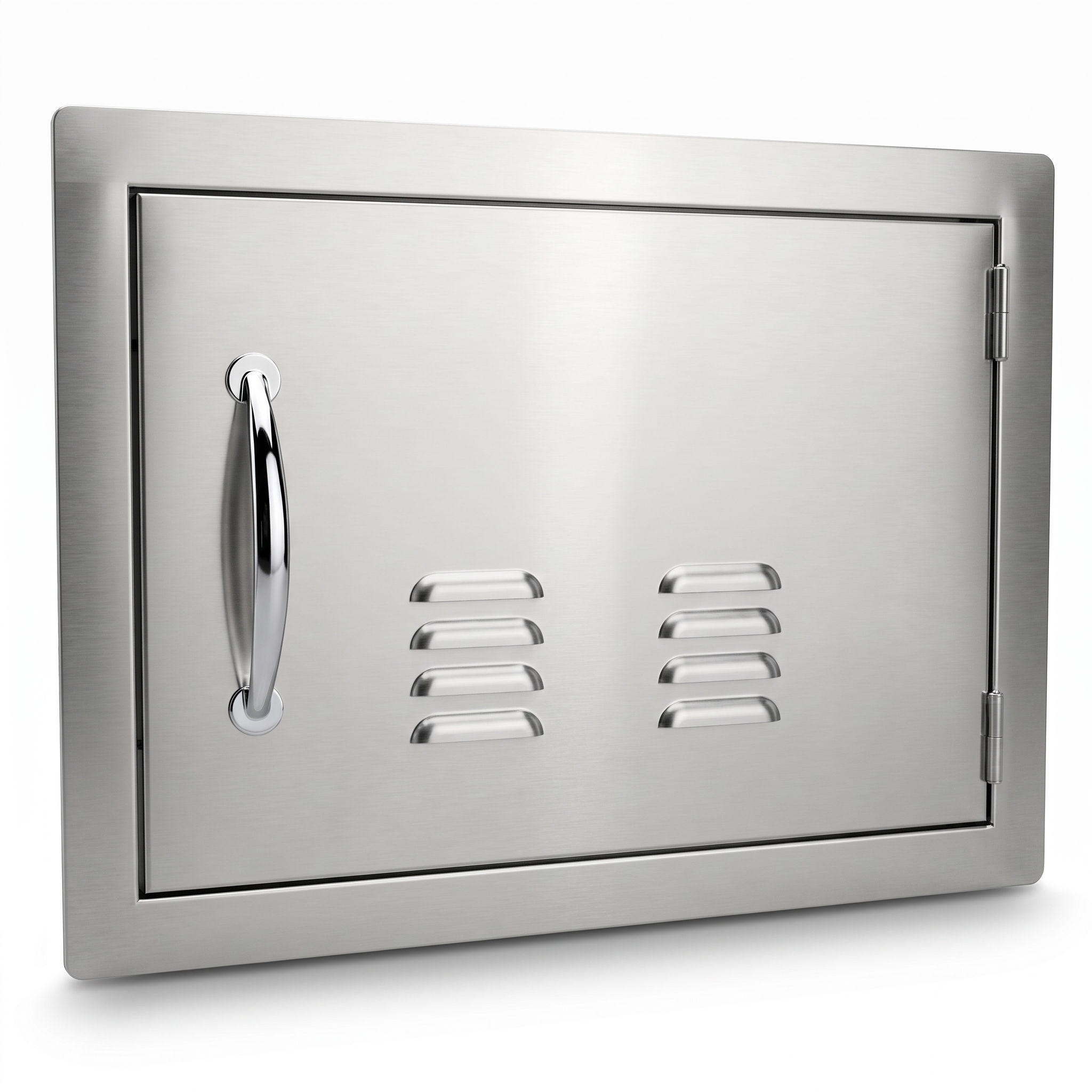

1 / 8Classic Series 14" x 20" Right Swing Horizontal Vented Door - A-DH1420
★★★★☆4.4 · 5 reviewsKey features
- Size: 23" W x 17" H x 1-5/8" D
- Cut-out: 20-1/4" W x 14-1/4" H
- Vented (bottom louvers), right swing (the left version is item A-DH1420-L)

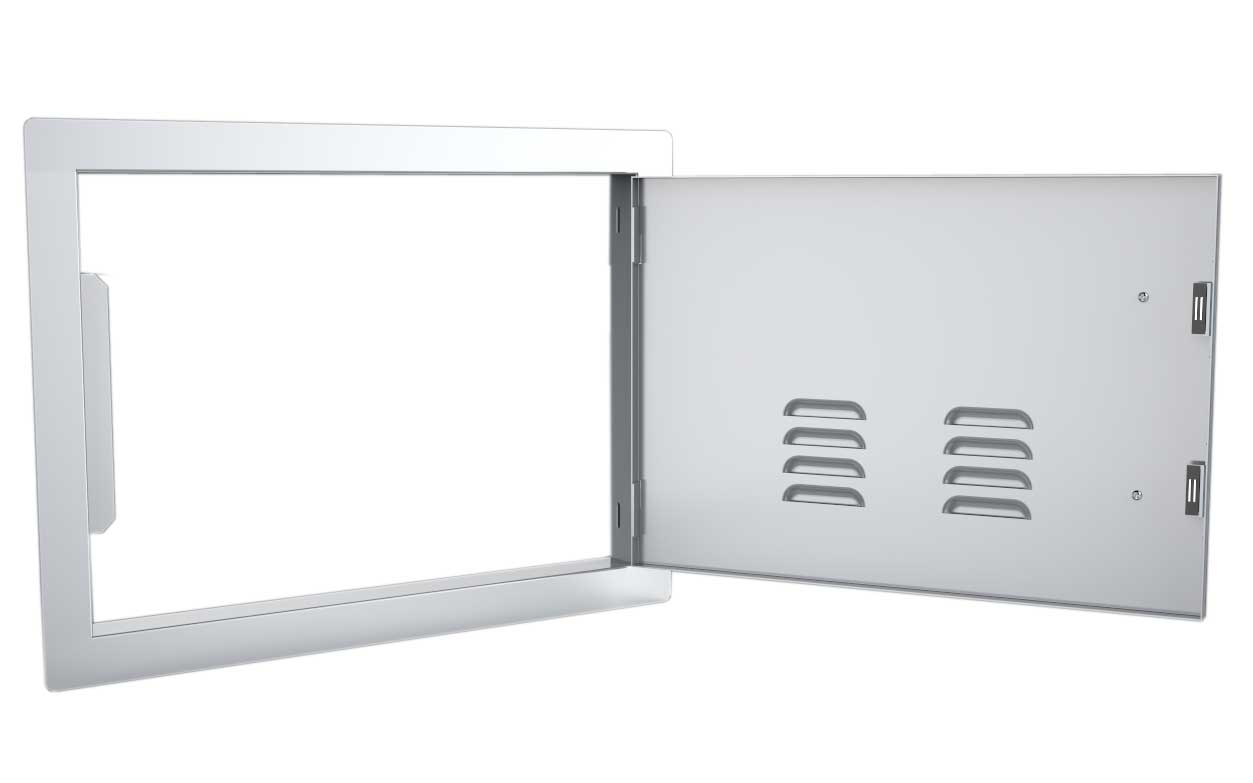

- Opens 180 degrees on exposed hinges; two magnets hold it closed
- Depth to frame hole: 1"; 1/4" door frame flange; fits a typical 4" island frame
- 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel; No. 4 light brushed finish
Description
The Classic Series 14" x 20" Right Swing Horizontal Vented Door (A-DH1420) opens into the island, and its bottom louvers let air move through, which matters where a propane tank or gas lines are stored.
It measures 23" W x 17" H x 1-5/8" D and fits a 20-1/4" W x 14-1/4" H cut-out. The depth from the face to the frame mounting hole is 1", the door frame flange is 1/4", and it fits a typical 4" island frame. It weighs 11 lbs.
The frame is 16 gauge 304 stainless steel and the door panel is 18 gauge 304 stainless steel, finished in No. 4 light brushed with the flush style of the Classic Series. This is the right swing version, and a left swing version is also available. It opens 180 degrees on exposed hinges, two magnets hold it closed, and it comes with the Polished Chrome Handle (zinc alloy, chrome plated). See our warranty page for coverage.
| Name | Classic Series 14" x 20" Right Swing Horizontal Vented Door - A-DH1420 |
|---|---|
| Item No. | A-DH1420 |
| Series | Classic Series Flush Style |
| Product size | 23" W x 17" H x 1-5/8" D |
| Cut-out | 20-1/4" W x 14-1/4" H |
Specifications
| Type | Access door |
|---|---|
| Series | Classic Series Flush Style |
| Style | Classic |
| Width | 23" |
| Depth | 1-5/8" |
| Height | 17" |
| Dimensions | 23" W x 17" H x 1-5/8" D |
| Cut-Out Width | 20-1/4" |
| Cut-Out Height | 14-1/4" |
| Cut-Out Size | 20-1/4" W x 14-1/4" H |
| Doors | 1 |
| Door Swing | Right swing (the left version is item A-DH1420-L) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 11 lbs |
| Brand | Sunstone |
| Item Number | A-DH1420 |
| Venting | Vented (bottom louvers) |
| Door Opening | 180 degrees |
| Hinges | Exposed |
| Depth To Frame Hole | 1" |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $198.00 | $198.00 | $235.00 | $235.00 | $126.00 |
| SKU | A-DH1420 | A-DV1420 | A-DH1724 | A-DV1724 | A-DH1420-L |
| Type | Access door | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style |
| Style | Classic | Classic | Classic | Classic | Classic |
| Width | 23" | 17" | 27" | 20" | 23" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" |
| Height | 17" | 23" | 20" | 27" | 17" |
| Cut-Out Width | 20-1/4" | 14-1/4" | 24-1/4" | 17-1/4" | 20-1/4" |
| Cut-Out Height | 14-1/4" | 20-1/4" | 17-1/4" | 24-1/4" | 14-1/4" |
| Doors | 1 | 1 | 1 | 1 | 1 |
| Door Swing | Right swing (the left version is item A-DH1420-L) | Right swing (the left version is item A-DV1420-L) | Right swing (the left version is item A-DH1724-L) | Right swing (the left version is item A-DV1724-L) | Left swing (the right version is item A-DH1420) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Weight | 11 lbs | Not listed | 11.5 lbs | Not listed | 11 lbs |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | A-DH1420 | A-DV1420 | A-DH1724 | A-DV1724 | A-DH1420-L |
| Venting | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) |
| Door Opening | 180 degrees | 180 degrees | 180 degrees | 180 degrees | 180 degrees |
| Hinges | Exposed | Exposed | Exposed | Exposed | Exposed |
| Depth To Frame Hole | 1" | 1" | 1" | 1" | 1" |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
