1 / 720" Sunstone Appliance Cabinet for UpTo 14-1/2 In. Cut-Out Width Appliance or BarStation w/Right Swing Door - SAC20CSDR
★★★★☆4.2 · 5 reviewsKey features
- Width: 20"
- Appliance cut-out: 9-3/4" to 14-1/2" W x 8" to 10-1/4" H
- Trim kit adapts the cabinet to your side burner or bar station
- Right-swing side door for trash bin or propane tank storage
- Bottom utility access port behind the slide-out tray
- Covered by our warranty: see details
Description

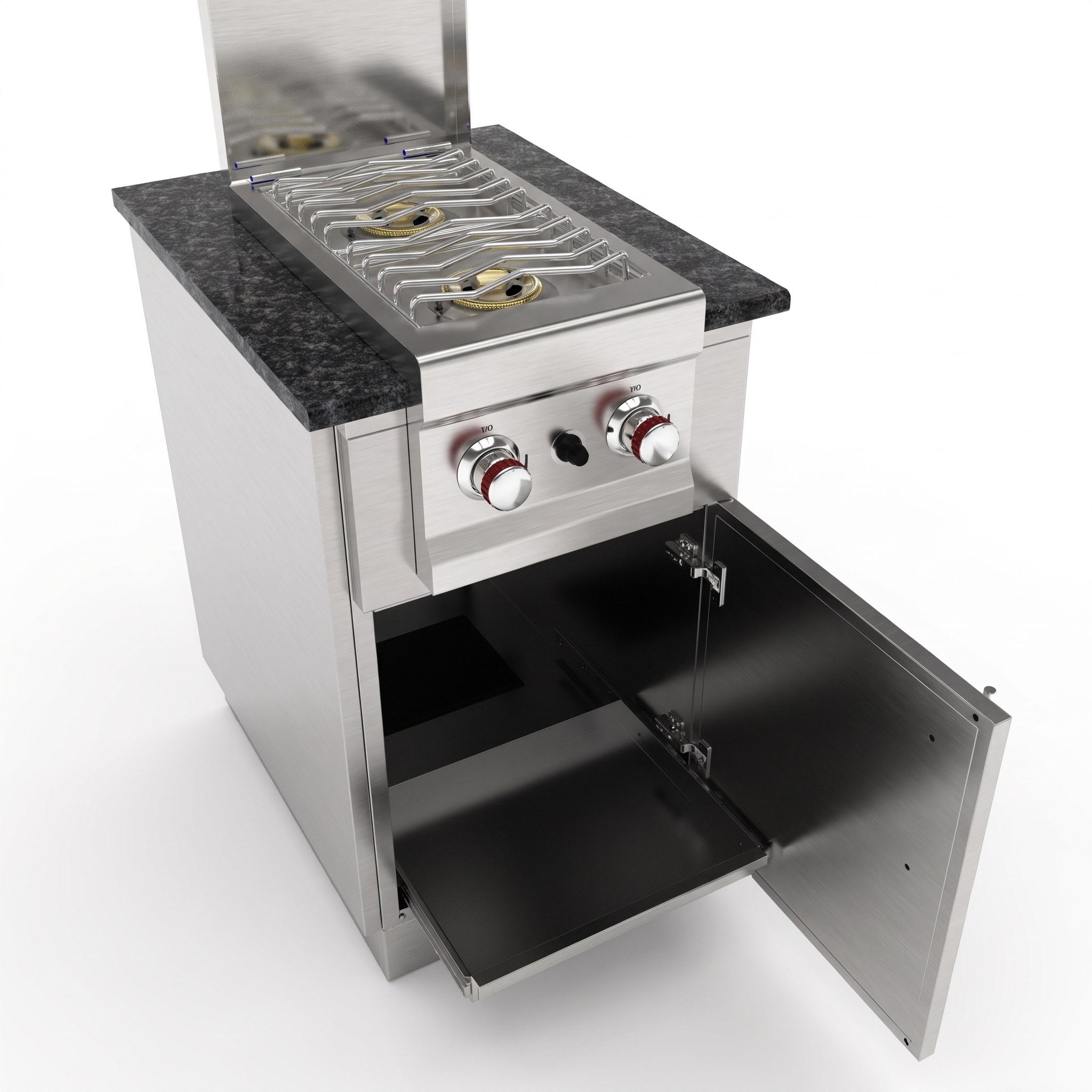

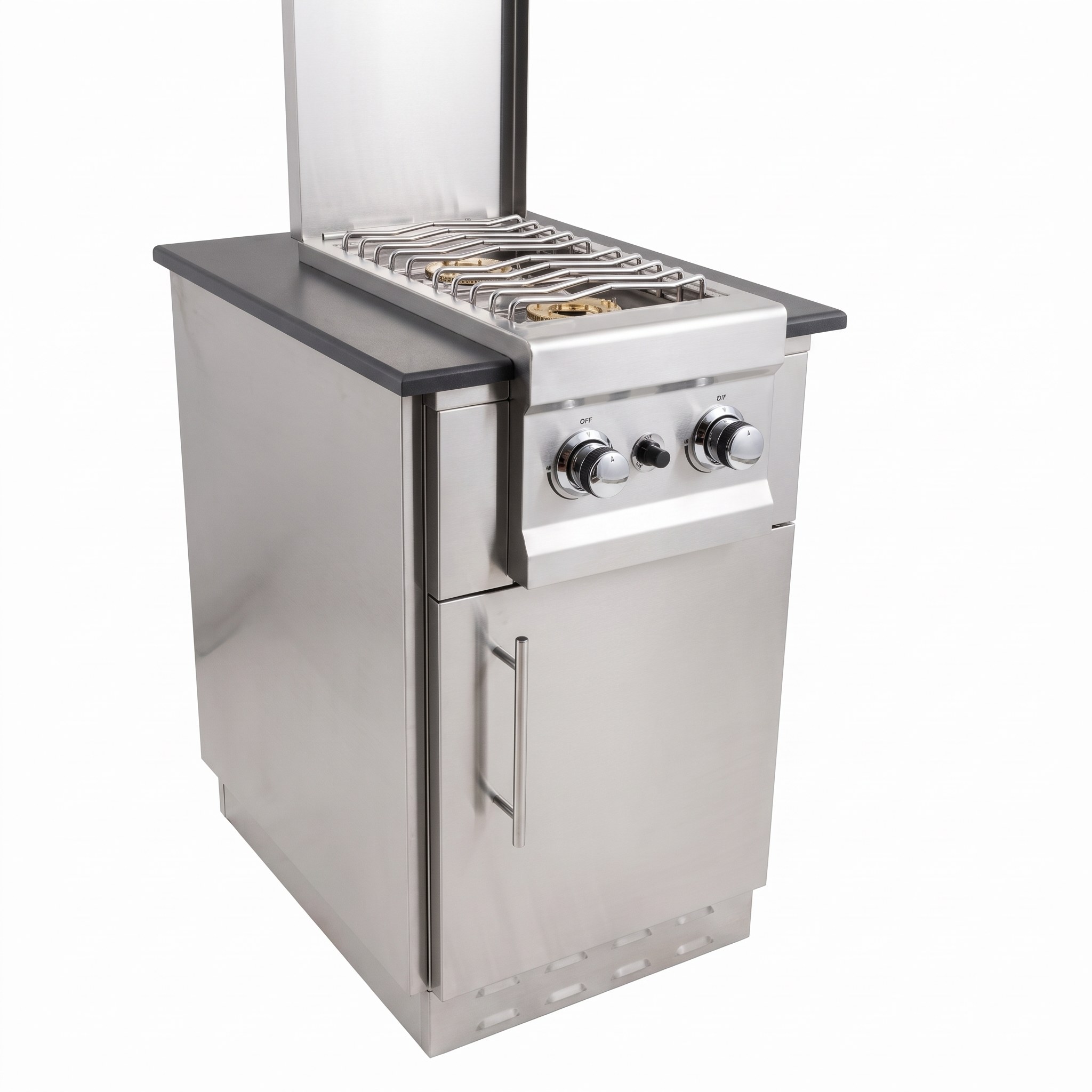

The SAC20CSDR is a 20" Sunstone appliance base cabinet that takes double slide-in side burners or bar stations from many brands. A right-swing side door closes off an enclosure for a trash bin or propane tank, and a bottom utility access port sits behind the slide-out tray at the bottom.
A trim kit mounts on the front face of the cabinet and adapts it to your appliance. It fits appliance cut-outs from 9-3/4" to 14-1/2" wide and 8" to 10-1/4" high, with a 3/4" counter and the filler rail installed or removed. For more height, remove the bottom filler rail or use a thicker counter or backer board. Specify the trim kit you need when you order; if your side burner or bar station is one of our models, we include the correct trim kit automatically. Page two of the cabinet spec sheet lists the insert sleeve dimensions to match against your appliance's cut-out.
The cabinet is 304 stainless steel and ships fully assembled. You attach the four included adjustable peg-legs, screw on the 304 stainless steel rod handles and mount the front and back kick-plates. It installs with the Sunstone Pin-Lock system. See our warranty page for coverage.
| Name | 20" Sunstone Appliance Cabinet for UpTo 14-1/2 In. Cut-Out Width Appliance or BarStation w/Right Swing Door - SAC20CSDR |
|---|---|
| Item No. | SAC20CSDR |
| Series | Appliance Cabinets |
| Product size | 20" W |
Specifications
| Type | Access door |
|---|---|
| Collection | Appliance Cabinets |
| Width | 20" |
| Doors | 1 |
| Door Swing | Right |
| Handles | 304 Stainless Steel Rod Handles |
| Material | 304 Stainless Steel |
| Assembly | Fully Assembled |
| Installation | Pin-Lock System |
| Compatibility | "CUT-OUT" Sizes between 9-3/4 In |
| Brand | Sunstone |
| Appliance Cut-Out Height | 8" to 10-1/4" |
| Appliance Cut-Out Width | 9-3/4" to 14-1/2" |
| Kick-Plates | Front & Back Included |
| Adjustable Legs | Yes |
| Utility Ports | Bottom utility access port behind slide-out tray |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $1,573.75 | $1,573.75 | $1,935.00 | $2,110.00 | $2,069.00 |
| SKU | SAC20CSDR | SAC20CSDL | SAC24APC | SAC30APC | SAC34DWC |
| Type | Access door | Access door | Appliance cabinet | Appliance cabinet | Cabinet |
| Width | 20" | 20" | 24" | 30" | 34" |
| Doors | 1 | 1 | Not listed | Not listed | Not listed |
| Door Swing | Right | Left | Not listed | Not listed | Not listed |
| Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Finish | Not listed | Not listed | No. 4 brushed stainless | No. 4 brushed stainless | Not listed |
| Assembly | Fully Assembled | Fully Assembled | Minor Assembly Required | Minor Assembly Required | Fully Assembled |
| Installation | Pin-Lock System | Pin-Lock System | Pin-Lock System | Pin-Lock System | Pin-Lock System |
| Compatibility | "CUT-OUT" Sizes between 9-3/4 In | "CUT-OUT" Sizes between 9-3/4 In | Up to 15" wide Fridge | Up to 21" wide Fridge | SAPWD30PRO |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Kick-Plates | Front & Back Included | Front & Back Included | Front & Back Included | Front & Back Included | Front & Back Included |
| Adjustable Legs | Yes | Yes | Yes | Yes | Yes |
| Appliance Cut-Out Height | 8" to 10-1/4" | 8" to 10-1/4" | Not listed | Not listed | Up to 10" |
| Appliance Cut-Out Width | 9-3/4" to 14-1/2" | 9-3/4" to 14-1/2" | Not listed | Not listed | Up to 28-1/2" |
| Electrical Access | Not listed | Not listed | Front Left Side Panel Cover | Front Left Side Panel Cover | 1-Gang Electrical Boxes Included |
| Utility Ports | Bottom utility access port behind slide-out tray | Bottom utility access port behind slide-out tray | Not listed | Not listed | Not listed |
| Appliance Compatibility | Not listed | Not listed | Up to 15" Wide Fridges, Wine Coolers, Ice Makers | Up to 21" Wide Fridges, Wine Coolers, Ice Makers | Not listed |
| Back Panel | Not listed | Not listed | Finished | Finished | Not listed |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (3)
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 48 hours after delivery.
Receiving Your Shipment
If you received an item that appears to have been damaged in-transit, call us immediately at 888-934-9449 or 512-487-5116, preferably while the driver is still there.
Inspect all freight before signing the driver's receipt. If damage is found, do not reject the shipment, note the damage on the receipt and contact us. For concealed damage, a claim must be filed within 48 hours of delivery.
FedEx and UPS claims are usually resolved within 14 business days. Freight shipper claims may take up to 120 calendar days.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
Items cannot have been installed or used. Customer is responsible for all return freight charges, unless the error is on our part. All returned goods must be in new condition and in original cartons, well packed.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
