1 / 920" Sunstone Appliance Cabinet for UpTo 14-1/2 In. Cut-Out Width Appliance or BarStation w/Left Swing Door - SAC20CSDL
★★★★★4.8 · 5 reviewsKey features
- Width: 20"
- Appliance cut-out: 9-3/4" to 14-1/2" W x 8" to 10-1/4" H
- Trim kit adapts the cabinet to your side burner or bar station
- Left-swing side door for trash bin or propane tank storage
- Bottom utility access port behind the slide-out tray
- Covered by our warranty: see details
Description

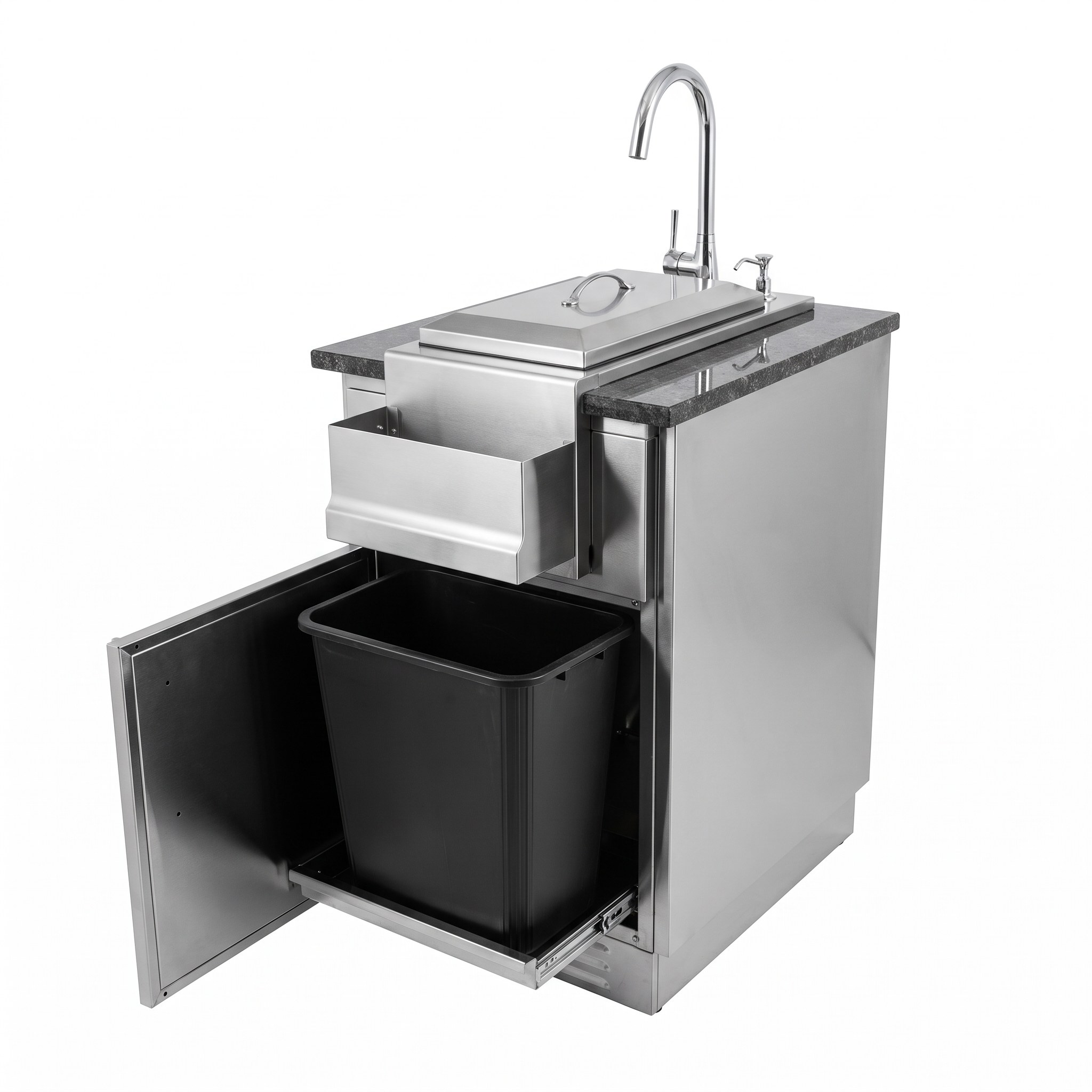

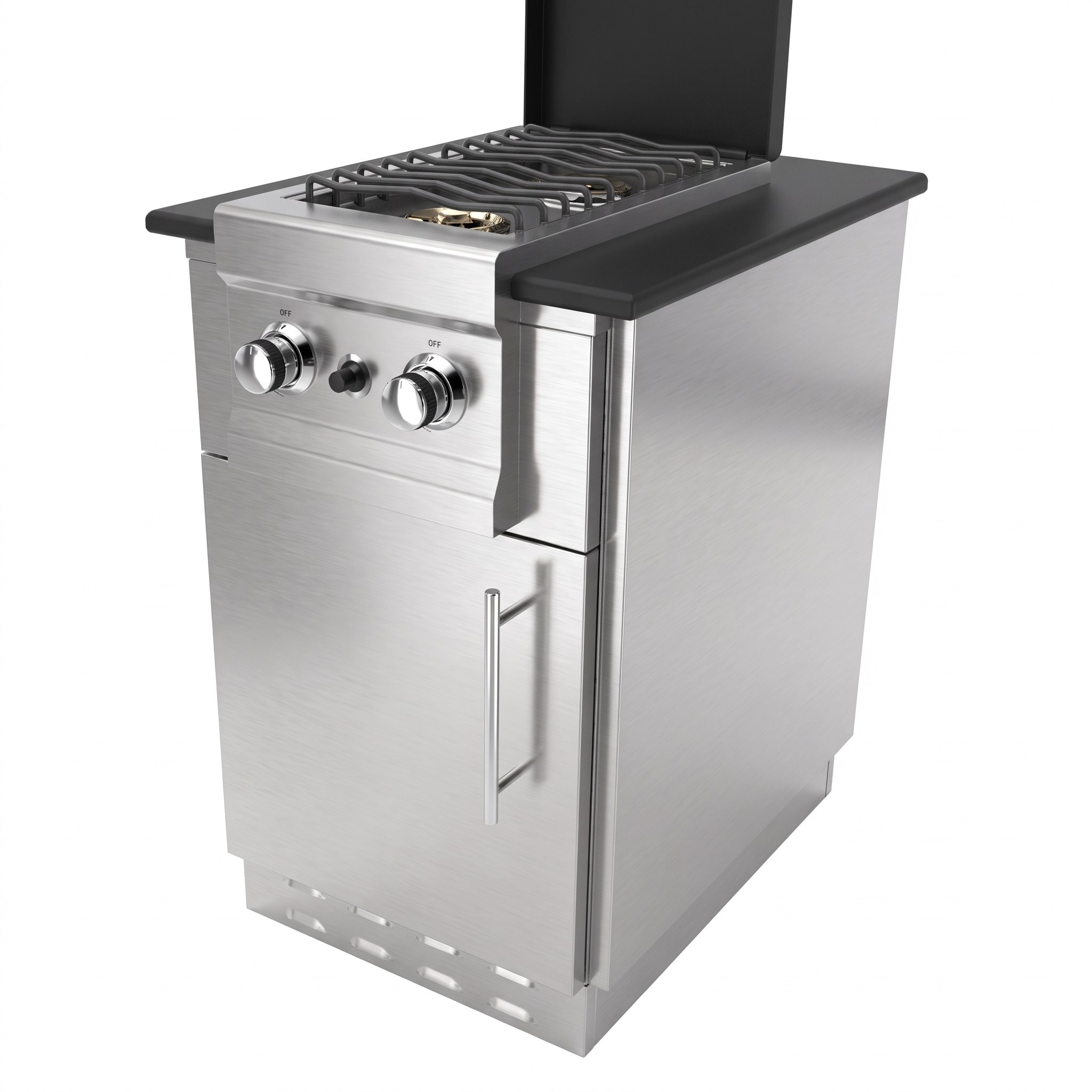

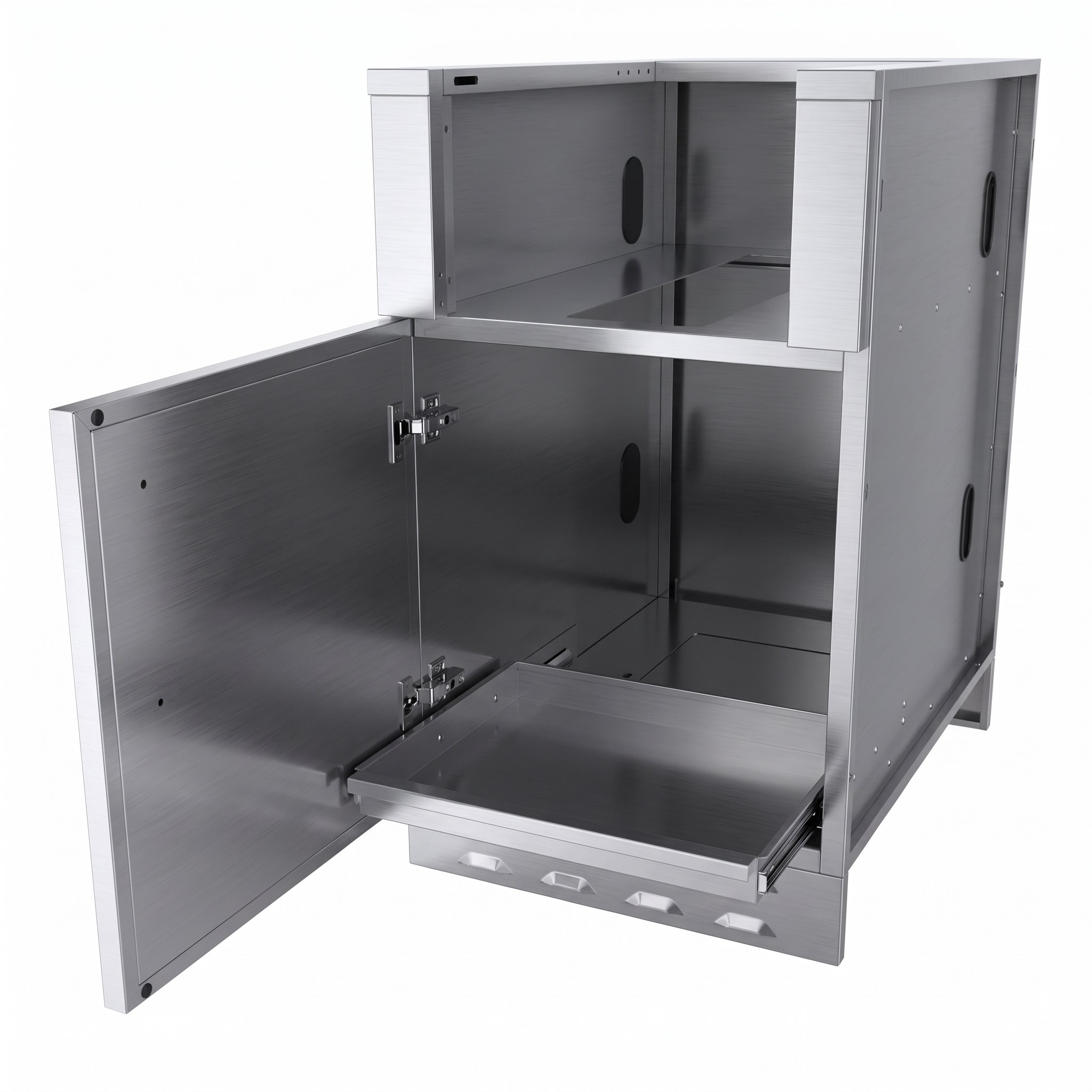

The SAC20CSDL is a 20" Sunstone appliance base cabinet that takes double slide-in side burners or bar stations from many brands. A left-swing side door closes off an enclosure for a trash bin or propane tank, and a bottom utility access port sits behind the slide-out tray at the bottom.
A trim kit mounts on the front face of the cabinet and adapts it to your appliance. It fits appliance cut-outs from 9-3/4" to 14-1/2" wide and 8" to 10-1/4" high, with a 3/4" counter and the filler rail installed or removed. For more height, remove the bottom filler rail or use a thicker counter or backer board. Specify the trim kit you need when you order; if your side burner or bar station is one of our models, we include the correct trim kit automatically. Page two of the cabinet spec sheet lists the insert sleeve dimensions to match against your appliance's cut-out.
The cabinet is 304 stainless steel and ships fully assembled. You attach the four included adjustable peg-legs, screw on the 304 stainless steel rod handles and mount the front and back kick-plates. It installs with the Sunstone Pin-Lock system. See our warranty page for coverage.
| Name | 20" Sunstone Appliance Cabinet for UpTo 14-1/2 In. Cut-Out Width Appliance or BarStation w/Left Swing Door - SAC20CSDL |
|---|---|
| Item No. | SAC20CSDL |
| Series | Appliance Cabinets |
| Product size | 20" W |
Specifications
| Type | Access door |
|---|---|
| Collection | Appliance Cabinets |
| Width | 20" |
| Doors | 1 |
| Door Swing | Left |
| Handles | 304 Stainless Steel Rod Handles |
| Material | 304 Stainless Steel |
| Assembly | Fully Assembled |
| Installation | Pin-Lock System |
| Compatibility | "CUT-OUT" Sizes between 9-3/4 In |
| Brand | Sunstone |
| Appliance Cut-Out Height | 8" to 10-1/4" |
| Appliance Cut-Out Width | 9-3/4" to 14-1/2" |
| Kick-Plates | Front & Back Included |
| Adjustable Legs | Yes |
| Utility Ports | Bottom utility access port behind slide-out tray |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $1,573.75 | $1,573.75 | $1,935.00 | $2,110.00 | $2,069.00 |
| SKU | SAC20CSDL | SAC20CSDR | SAC24APC | SAC30APC | SAC34DWC |
| Type | Access door | Access door | Appliance cabinet | Appliance cabinet | Cabinet |
| Width | 20" | 20" | 24" | 30" | 34" |
| Doors | 1 | 1 | Not listed | Not listed | Not listed |
| Door Swing | Left | Right | Not listed | Not listed | Not listed |
| Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles | 304 Stainless Steel Rod Handles |
| Material | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel | 304 Stainless Steel |
| Finish | Not listed | Not listed | No. 4 brushed stainless | No. 4 brushed stainless | Not listed |
| Assembly | Fully Assembled | Fully Assembled | Minor Assembly Required | Minor Assembly Required | Fully Assembled |
| Installation | Pin-Lock System | Pin-Lock System | Pin-Lock System | Pin-Lock System | Pin-Lock System |
| Compatibility | "CUT-OUT" Sizes between 9-3/4 In | "CUT-OUT" Sizes between 9-3/4 In | Up to 15" wide Fridge | Up to 21" wide Fridge | SAPWD30PRO |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Kick-Plates | Front & Back Included | Front & Back Included | Front & Back Included | Front & Back Included | Front & Back Included |
| Adjustable Legs | Yes | Yes | Yes | Yes | Yes |
| Appliance Cut-Out Height | 8" to 10-1/4" | 8" to 10-1/4" | Not listed | Not listed | Up to 10" |
| Appliance Cut-Out Width | 9-3/4" to 14-1/2" | 9-3/4" to 14-1/2" | Not listed | Not listed | Up to 28-1/2" |
| Electrical Access | Not listed | Not listed | Front Left Side Panel Cover | Front Left Side Panel Cover | 1-Gang Electrical Boxes Included |
| Utility Ports | Bottom utility access port behind slide-out tray | Bottom utility access port behind slide-out tray | Not listed | Not listed | Not listed |
| Appliance Compatibility | Not listed | Not listed | Up to 15" Wide Fridges, Wine Coolers, Ice Makers | Up to 21" Wide Fridges, Wine Coolers, Ice Makers | Not listed |
| Back Panel | Not listed | Not listed | Finished | Finished | Not listed |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
