1 / 8Key features
- Size: 30" W x 21-1/8" H x 1-5/8" D
- Cut-out: 27-1/2" W x 18-1/2" H
- Vented double doors
- Exposed hinges
- Depth to frame hole: 1"; fits a typical 4" island frame depth
- 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel; No. 4 light brushed finish
Description

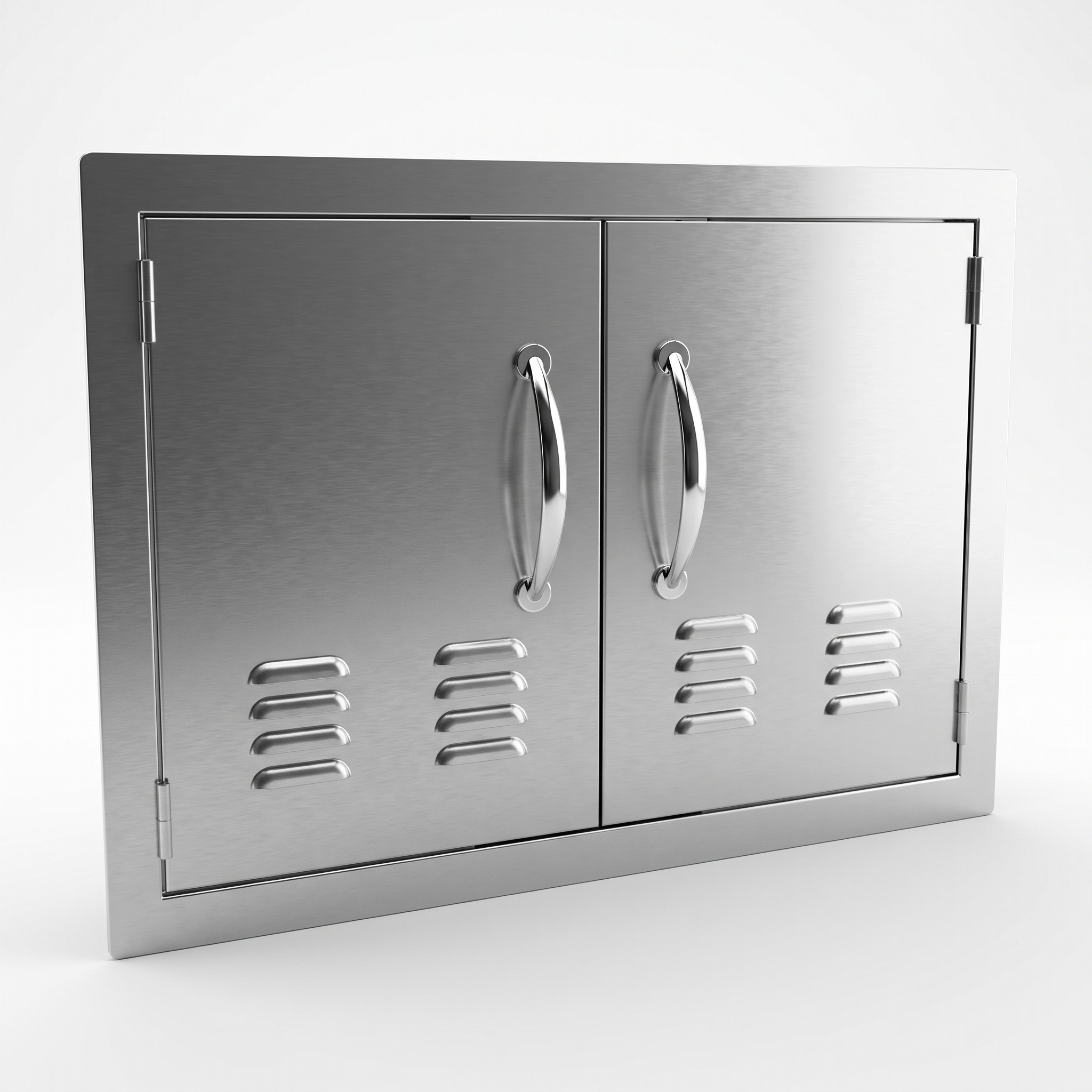

The Classic Series 30" Vented Double Door Flush Mount (C-DD30) opens wide for the storage space under a grill or counter, with vents to let air through.
It measures 30" W x 21-1/8" H x 1-5/8" D and fits a 27-1/2" W x 18-1/2" H cut-out. The depth from the face to the frame mounting hole is 1", which fits a typical 4" island frame depth.
The frame is 16 gauge 304 stainless steel and the door panels are 18 gauge 304 stainless steel, finished in No. 4 light brushed with the Classic Series flush style. The double doors hang on exposed hinges and come with the Polished Chrome Handle (zinc alloy, chrome plated). See our warranty page for coverage.
| Name | Classic Series 30" Vented Double Door Flush Mount - C-DD30 |
|---|---|
| Item No. | C-DD30 |
| Series | Classic Series Flush Style |
| Product size | 30" W x 21-1/8" H x 1-5/8" D |
| Cut-out | 27-1/2" W x 18-1/2" H |
Specifications
| Type | Double door |
|---|---|
| Series | Classic Series Flush Style |
| Style | Classic |
| Width | 30" |
| Depth | 1-5/8" |
| Height | 21-1/8" |
| Dimensions | 30" W x 21-1/8" H x 1-5/8" D |
| Cut-Out Width | 27-1/2" |
| Cut-Out Height | 18-1/2" |
| Cut-Out Size | 27-1/2" W x 18-1/2" H |
| Doors | 2 |
| Door Swing | Double doors |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Brand | Sunstone |
| Item Number | C-DD30 |
| Venting | Vented |
| Hinges | Exposed |
| Depth To Frame Hole | 1" |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $298.00 | $373.00 | $198.00 | $235.00 | $235.00 |
| SKU | C-DD30 | C-DD36 | A-DD33 | A-DH1724 | A-DV1724 |
| Type | Double door | Double door | Double door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style |
| Style | Classic | Classic | Classic | Classic | Classic |
| Width | 30" | 36" | 33" | 27" | 20" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" |
| Height | 21-1/8" | 21-1/8" | 21-1/8" | 20" | 27" |
| Cut-Out Width | 27-1/2" | 33-1/2" | 30-1/2" | 24-1/4" | 17-1/4" |
| Cut-Out Height | 18-1/2" | 18-1/2" | 18-1/2" | 17-1/4" | 24-1/4" |
| Doors | 2 | 2 | 2 | 1 | 1 |
| Door Swing | Double doors | Double doors | Double doors | Right swing (the left version is item A-DH1724-L) | Right swing (the left version is item A-DV1724-L) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | C-DD30 | C-DD36 | A-DD33 | A-DH1724 | A-DV1724 |
| Venting | Vented | Vented | Non-vented | Vented (bottom louvers) | Vented (bottom louvers) |
| Hinges | Exposed | Exposed | Exposed | Exposed | Exposed |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Cast handles, chrome plated | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) |
| Depth To Frame Hole | 1" | 1" | Not listed | 1" | 1" |
| Door Opening | Not listed | Not listed | Not listed | 180 degrees | 180 degrees |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (2)
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 48 hours after delivery.
Receiving Your Shipment
If you received an item that appears to have been damaged in-transit, call us immediately at 888-934-9449 or 512-487-5116, preferably while the driver is still there.
Inspect all freight before signing the driver's receipt. If damage is found, do not reject the shipment, note the damage on the receipt and contact us. For concealed damage, a claim must be filed within 48 hours of delivery.
FedEx and UPS claims are usually resolved within 14 business days. Freight shipper claims may take up to 120 calendar days.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
Items cannot have been installed or used. Customer is responsible for all return freight charges, unless the error is on our part. All returned goods must be in new condition and in original cartons, well packed.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
The 30-inch double access door looks pretty good once installed, and the brushed finish matches my other Sunstone components well. However, the venting isn't as robust as I'd hoped for my propane setup; I still get some heat build-up. Installation was straightforward enough, but the frame felt a little less rigid than I expected for the price.
I'm really happy with this 30" double access door. The flush mount design gives my outdoor kitchen a super clean, integrated look, and the #4 brushed finish is spot on with my grill. It feels sturdy and opens smoothly, making access to the gas lines and storage under the counter a breeze.
This C-DD30 door is exactly what my outdoor kitchen needed! The double access is so convenient for getting to everything, and the vented design gives me peace of mind with my propane tank. The quality of the stainless steel and the finish are top-notch, really elevating the whole setup.
As a contractor, I've installed a lot of outdoor kitchen components, and this Sunstone 30" door is a solid choice. The flush mount makes for a clean install, and the brushed finish is consistent. It's a good balance of quality and price, though I always recommend checking the rough opening carefully before ordering.
Wow, I am blown away by the quality of this 30" double access door! The sleek design and the beautiful #4 brushed finish truly make my outdoor kitchen look professional. It's incredibly functional, providing easy access while keeping everything neatly tucked away. Sunstone really nailed it with this Classic Series.
