1 / 5Classic Series 17" x 24" Left Swing Horizontal Vented Door - A-DH1724-L
★★★★★4.6 · 5 reviewsKey features
- Size: 27" W x 20" H x 1-5/8" D
- Cut-out: 24-1/4" W x 17-1/4" H
- Vented (bottom louvers)

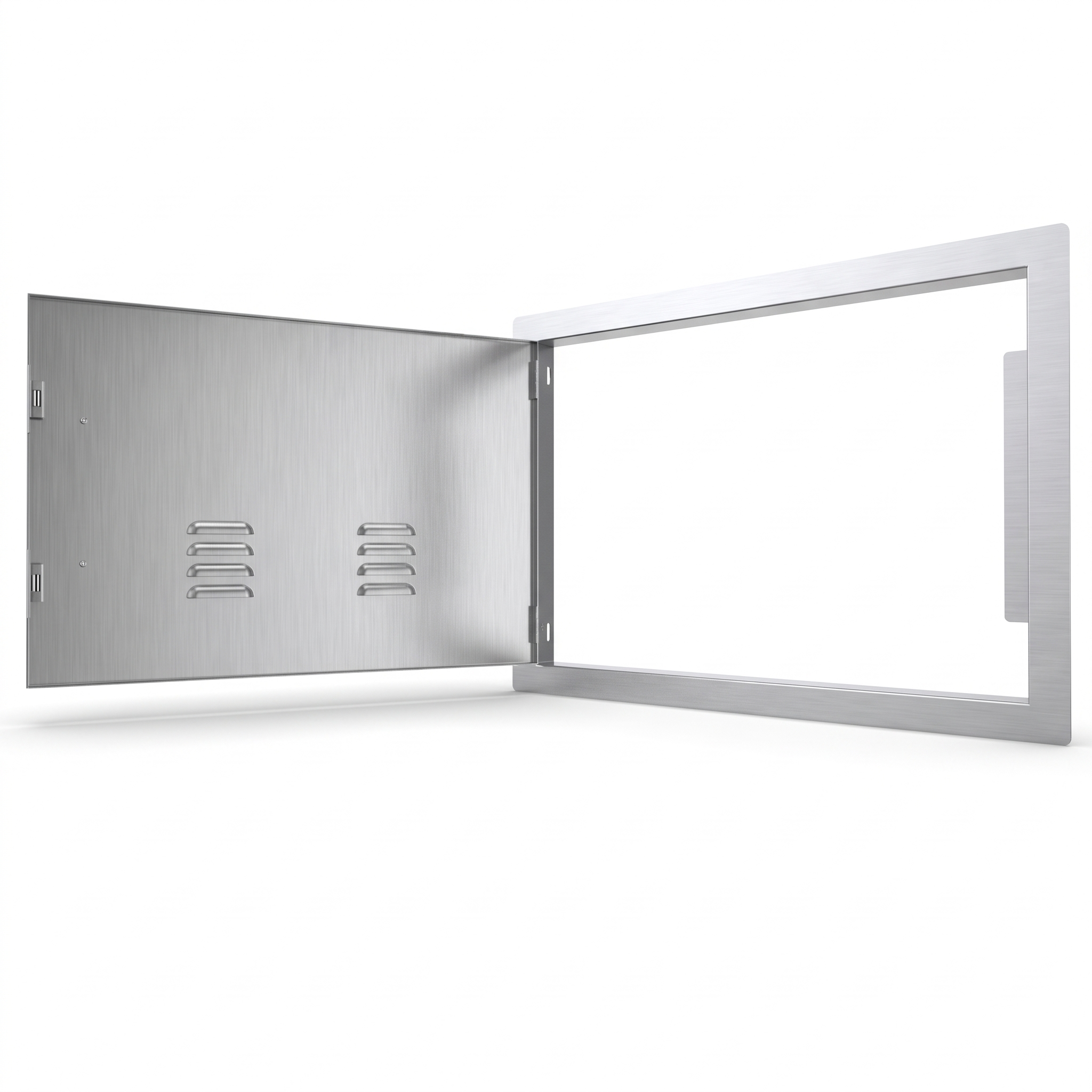

- Left swing only (the right swing version is item A-DH1724), opens 180 degrees
- Exposed hinges, 1" depth from face to frame mounting hole, fits a typical 4" island frame
- Top and bottom magnets with a steel strike plate
Description

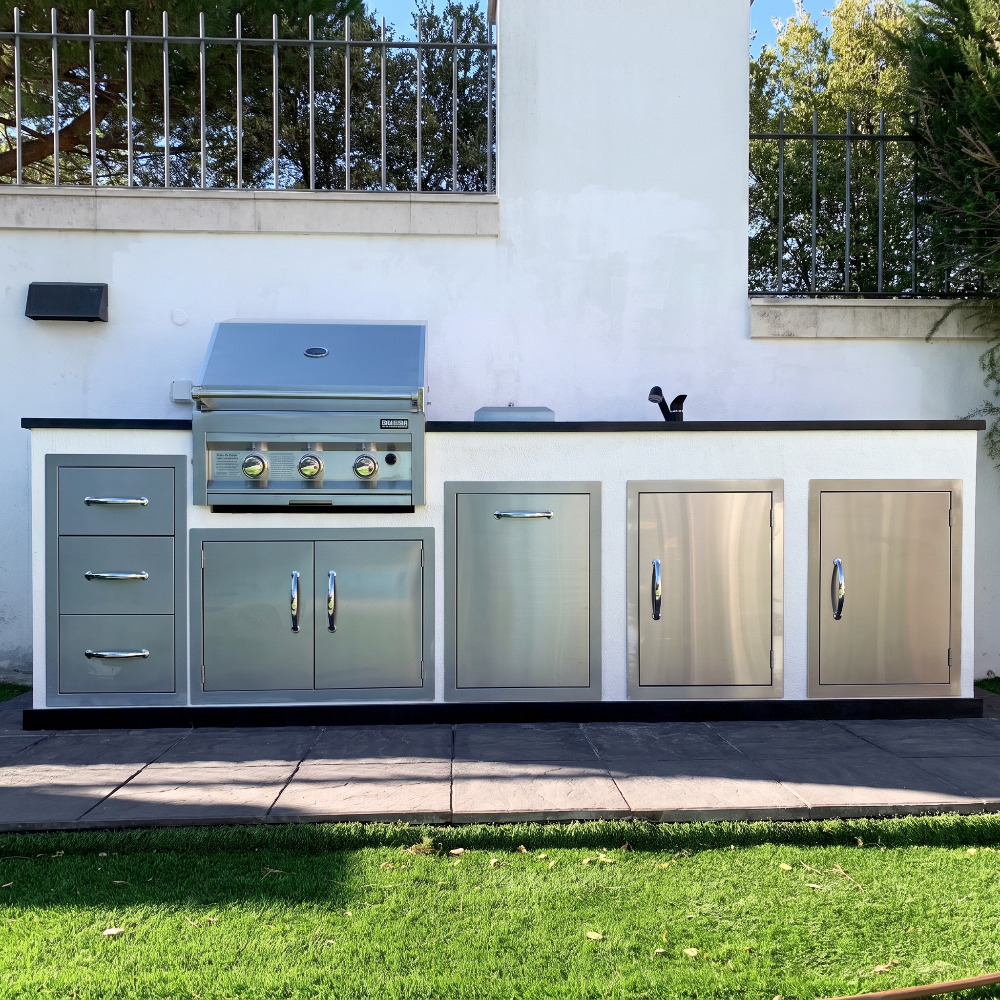

The Classic Series 17" x 24" Left Swing Horizontal Vented Door (A-DH1724-L) gives access to the space inside an island, and its bottom louvers let air move through. That airflow matters wherever a propane tank or gas lines are stored.
It measures 27" W x 20" H x 1-5/8" D and fits a 24-1/4" W x 17-1/4" H cut-out. Because it is vented, it swings left only; the right swing version is item A-DH1724. The door opens 180 degrees on exposed hinges. The depth from the face to the frame mounting hole is 1", and it fits a typical 4" island frame. Top and bottom magnets with a steel strike plate hold it closed. It weighs 11.5 lbs.

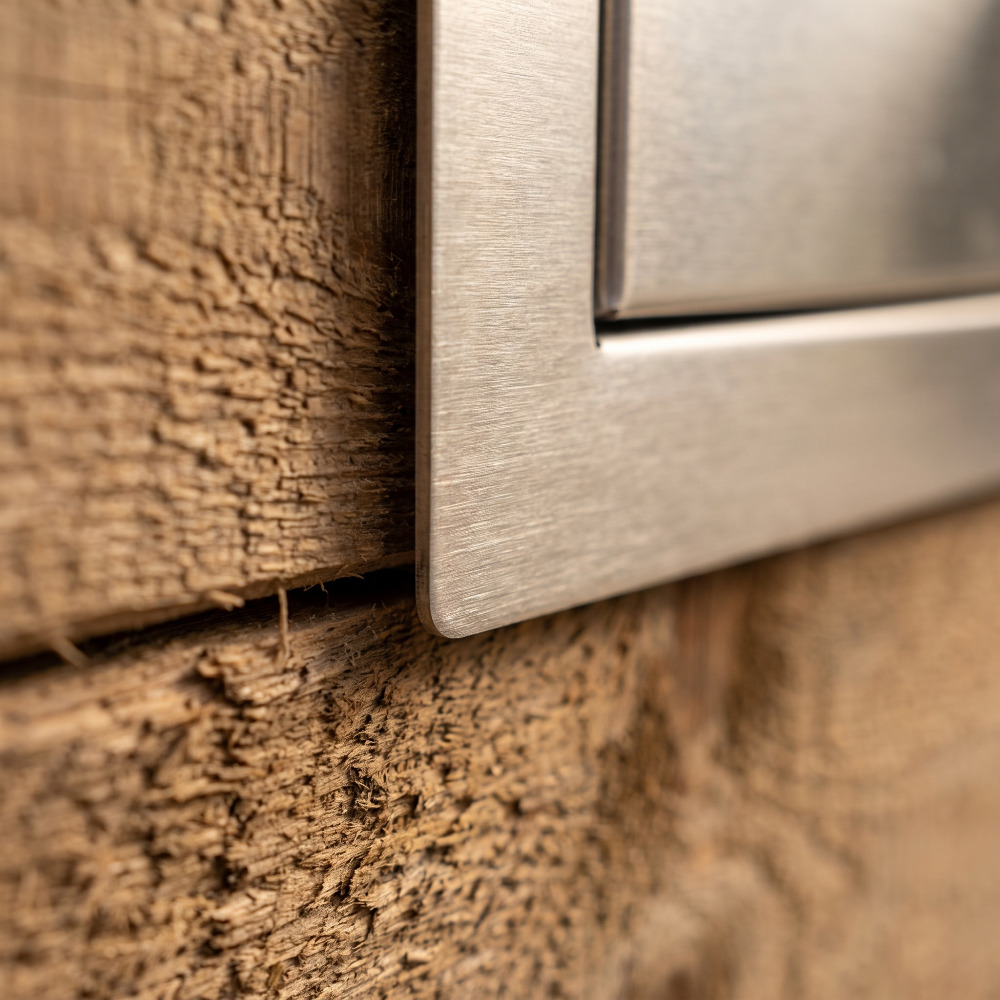

The frame is 16 gauge 304 stainless steel and the door panel 18 gauge 304 stainless steel, in a No. 4 light brushed finish with the flush look of the other Classic Series components. It ships with the Polished Chrome Handle (zinc alloy, chrome plated).
See our warranty page for coverage.
| Name | Classic Series 17" x 24" Left Swing Horizontal Vented Door - A-DH1724-L |
|---|---|
| Item No. | A-DH1724-L |
| Series | ODK Components |
| Product size | 27" W x 20" H x 1-5/8" D |
| Cut-out | 24-1/4" W x 17-1/4" H |
Specifications
| Type | Access door |
|---|---|
| Collection | ODK Components |
| Series | Classic Series Flush Style |
| Width | 27" |
| Depth | 1-5/8" |
| Height | 20" |
| Dimensions | 27" W x 20" H x 1-5/8" D |
| Cut-Out Width | 24-1/4" |
| Cut-Out Height | 17-1/4" |
| Cut-Out Size | 24-1/4" W x 17-1/4" H |
| Doors | 1 |
| Door Swing | Left swing (the right version is item A-DH1724) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 11.5 lbs |
| Brand | Sunstone |
| Item Number | A-DH1724-L |
| Venting | Vented (bottom louvers) |
| Door Opening | 180 degrees |
| Hinges | Exposed |
| Depth To Frame Hole | 1" |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $188.00 | $235.00 | $198.00 | $161.00 | $235.00 |
| SKU | A-DH1724-L | A-DV1724-L | A-DV1420-L | B-DV1521 | DH1724 |
| Type | Access door | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Not listed | Classic Series Flush Style |
| Width | 27" | 20" | 17" | 15" | 27" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | Not listed | 1-5/8" |
| Height | 20" | 27" | 23" | Not listed | 20" |
| Cut-Out Width | 24-1/4" | 17-1/4" | 14-1/4" | Not listed | 24-1/4" |
| Cut-Out Height | 17-1/4" | 24-1/4" | 20-1/4" | Not listed | 17-1/4" |
| Doors | 1 | 1 | 1 | 1 | 1 |
| Door Swing | Left swing (the right version is item A-DH1724) | Left swing (the right version is item A-DV1724) | Left swing (the right version is item A-DV1420) | Not listed | Reversible: rotate 180 degrees for left or right swing |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 304 stainless steel; 16 gauge frame, 18 gauge door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Hardware included for quick setup | Built-in |
| Weight | 11.5 lbs | Not listed | Not listed | 14 lbs | 11.5 lbs |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | A-DH1724-L | A-DV1724-L | A-DV1420-L | Not listed | DH1724 |
| Venting | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Not listed | Non-vented |
| Door Opening | 180 degrees | 180 degrees | 180 degrees | Not listed | 180 degrees |
| Hinges | Exposed | Exposed | Exposed | Not listed | Exposed |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Not listed | Polished Chrome Handle (zinc alloy, chrome plated) |
| Depth To Frame Hole | 1" | 1" | 1" | Not listed | Not listed |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
