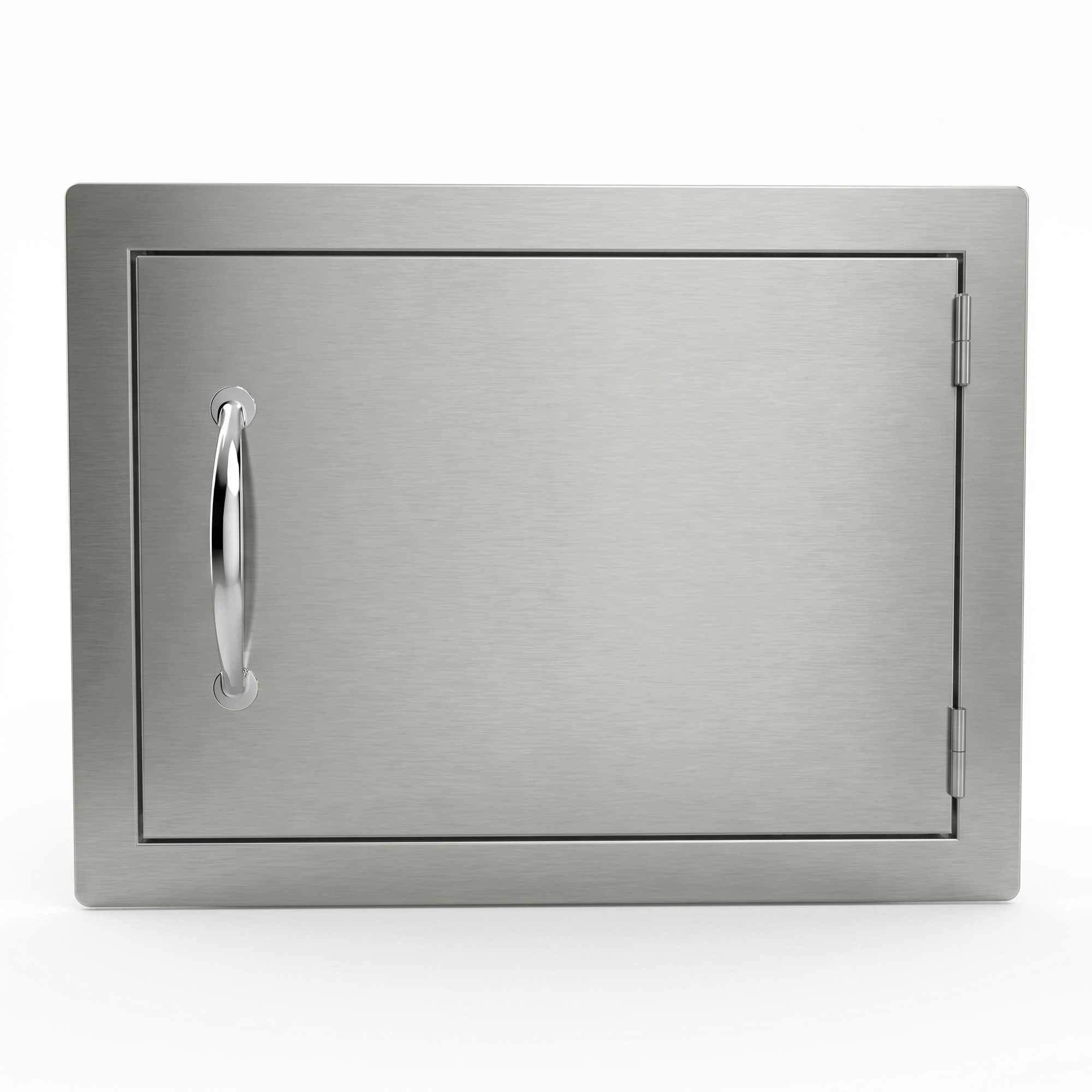

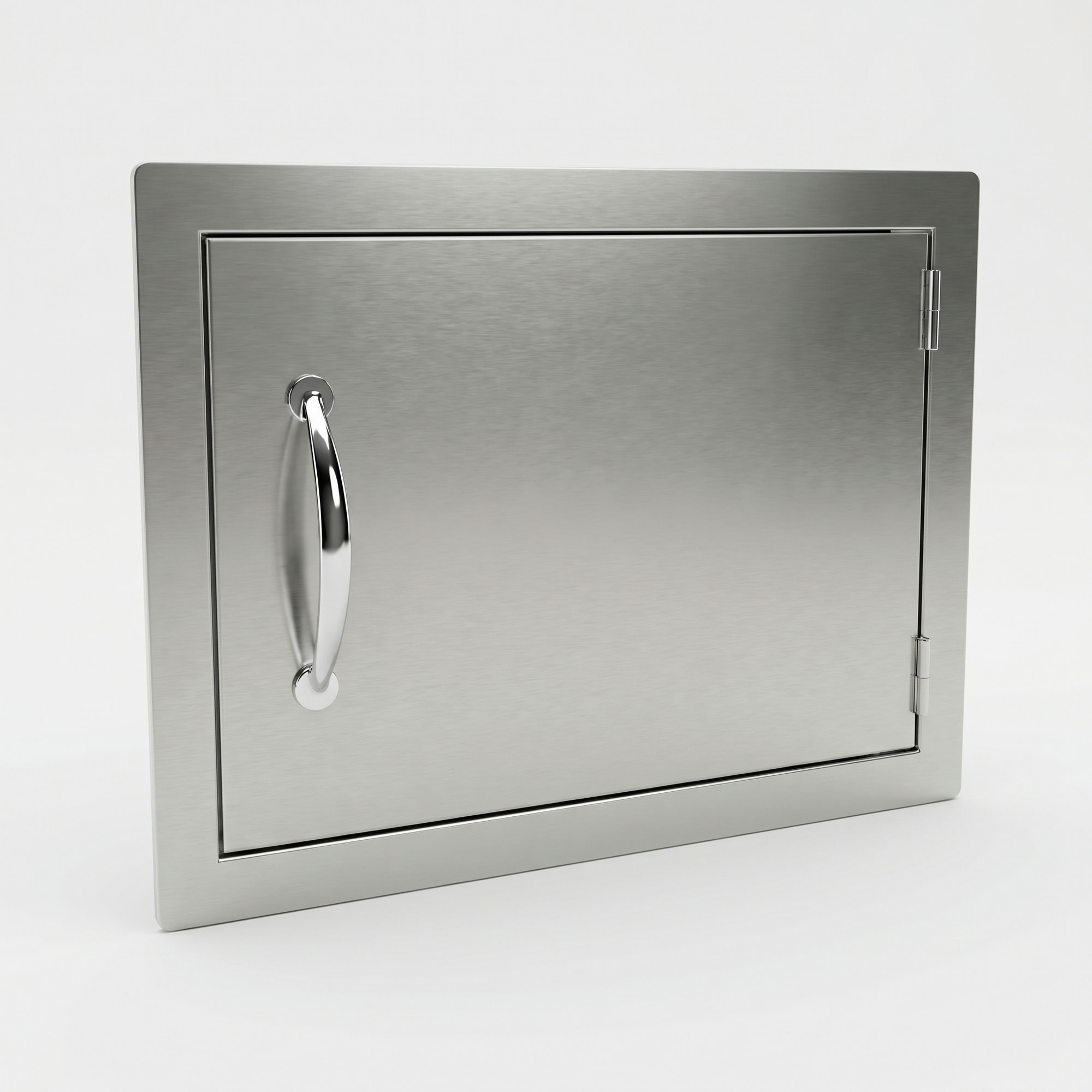

1 / 7Classic Series 14" x 20" Horizontal Door (Reversible) - DH1420
★★★★☆4.2 · 5 reviewsKey features
- Size: 23" W x 17" H x 1-5/8" D
- Cut-out: 20-1/4" W x 14-1/4" H

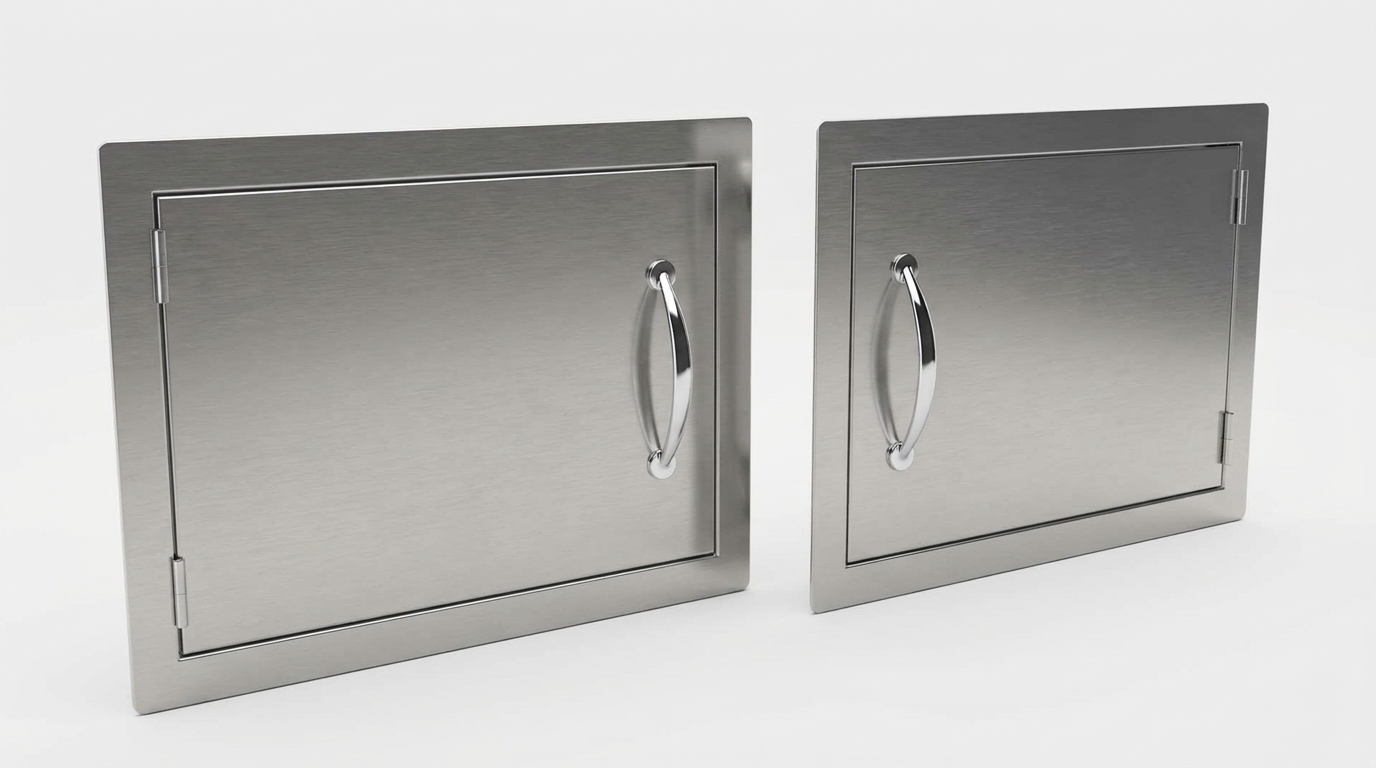

- Non-vented, reversible: rotate 180 degrees for left or right swing
- Exposed hinges, 1-1/2" flange
- Magnets with a 430 stainless steel strike plate hold the door closed
- 16 gauge 304 stainless steel frame, 18 gauge door panel, No. 4 light brushed finish
Description

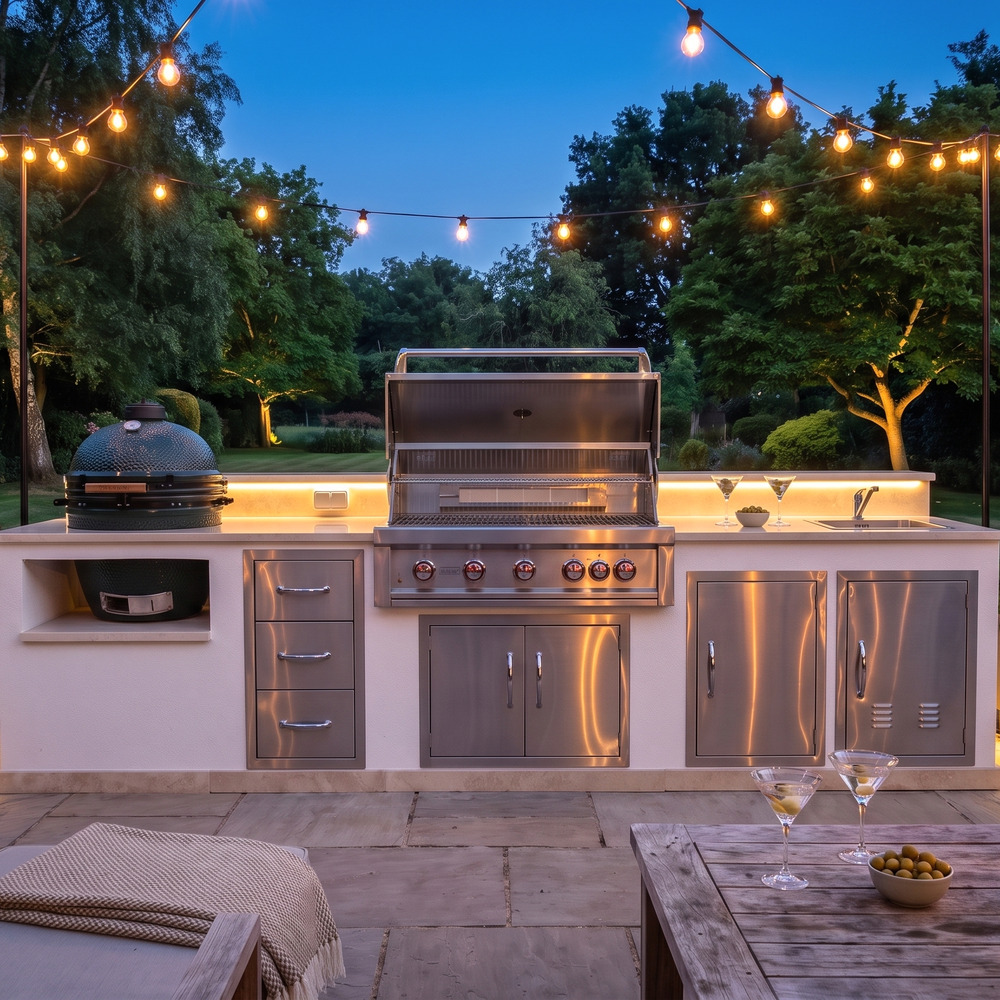

The Classic Series 14" x 20" Horizontal Door (Reversible) (DH1420) gives access to storage or utility lines inside an outdoor kitchen island.
It measures 23" W x 17" H x 1-5/8" D and fits a 20-1/4" W x 14-1/4" H cut-out, with a 1-1/2" flange. The door is not vented, so it is reversible: rotate it 180 degrees for a left or right swing. The hinges are exposed, and magnets against a 430 stainless steel strike plate hold the door closed. It weighs 10 lbs.
The frame is 16 gauge 304 stainless steel and the door panel 18 gauge 304 stainless steel, in a No. 4 light brushed finish with the flush look of the other Classic Series components. It ships with the Polished Chrome Handle (zinc alloy, chrome plated).
See our warranty page for coverage.
| Name | Classic Series 14" x 20" Horizontal Door (Reversible) - DH1420 |
|---|---|
| Item No. | DH1420 |
| Series | ODK Components |
| Product size | 23" W x 17" H x 1-5/8" D |
| Cut-out | 20-1/4" W x 14-1/4" H |
Specifications
| Type | Access door |
|---|---|
| Collection | ODK Components |
| Series | Classic Series Flush Style |
| Width | 23" |
| Depth | 1-5/8" |
| Height | 17" |
| Dimensions | 23" W x 17" H x 1-5/8" D |
| Cut-Out Width | 20-1/4" |
| Cut-Out Height | 14-1/4" |
| Cut-Out Size | 20-1/4" W x 14-1/4" H |
| Doors | 1 |
| Door Swing | Reversible: rotate 180 degrees for left or right swing |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 10 lbs |
| Brand | Sunstone |
| Item Number | DH1420 |
| Venting | Non-vented |
| Hinges | Exposed |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $198.00 | $235.00 | $198.00 | $198.00 | $161.00 |
| SKU | DH1420 | DH1724 | DV1420 | A-DV1420-L | B-DV1521 |
| Type | Access door | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Not listed |
| Width | 23" | 27" | 17" | 17" | 15" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | Not listed |
| Height | 17" | 20" | 23" | 23" | Not listed |
| Cut-Out Width | 20-1/4" | 24-1/4" | 14-1/4" | 14-1/4" | Not listed |
| Cut-Out Height | 14-1/4" | 17-1/4" | 20-1/4" | 20-1/4" | Not listed |
| Doors | 1 | 1 | 1 | 1 | 1 |
| Door Swing | Reversible: rotate 180 degrees for left or right swing | Reversible: rotate 180 degrees for left or right swing | Reversible: rotate 180 degrees for left or right swing | Left swing (the right version is item A-DV1420) | Not listed |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 304 stainless steel; 16 gauge frame, 18 gauge door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Hardware included for quick setup |
| Weight | 10 lbs | 11.5 lbs | 11 lbs | Not listed | 14 lbs |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | DH1420 | DH1724 | DV1420 | A-DV1420-L | Not listed |
| Venting | Non-vented | Non-vented | Non-vented | Vented (bottom louvers) | Not listed |
| Hinges | Exposed | Exposed | Exposed | Exposed | Not listed |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Not listed |
| Door Opening | Not listed | 180 degrees | Not listed | 180 degrees | Not listed |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (5)
ODK spec sheets
Installation guides
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 48 hours after delivery.
Receiving Your Shipment
If you received an item that appears to have been damaged in-transit, call us immediately at 888-934-9449 or 512-487-5116, preferably while the driver is still there.
Inspect all freight before signing the driver's receipt. If damage is found, do not reject the shipment, note the damage on the receipt and contact us. For concealed damage, a claim must be filed within 48 hours of delivery.
FedEx and UPS claims are usually resolved within 14 business days. Freight shipper claims may take up to 120 calendar days.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
Items cannot have been installed or used. Customer is responsible for all return freight charges, unless the error is on our part. All returned goods must be in new condition and in original cartons, well packed.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
This access door is exactly what I needed for my outdoor kitchen island. The 14" x 20" size was a perfect fit for my propane tank storage, and the reversible feature made installation a breeze. The #4 brushed finish matches my grill perfectly, giving everything a really cohesive and high-end look.
Overall, I'm very happy with this Sunstone access door. It feels incredibly sturdy and the stainless steel is clearly good quality. My only minor complaint is that the description mentioned it's 'sleek and stylish,' and while it is, the handle could be a little more ergonomic. Still, it functions great.
For the price, this 14x20 access door is a really good deal. I installed it myself in about 30 minutes, which was much easier than I expected. It's great for hiding away plumbing and electrical connections, keeping my outdoor space looking tidy.
The finish on this Classic Series door is really nice, it has that professional look I was going for. It opens and closes smoothly, and the horizontal design works well for the space I had available. It's a practical addition to my outdoor setup.
This access door does exactly what it's supposed to do. It provides easy access to the inside of my island and looks good doing it. The construction feels solid and I expect it to hold up well to the elements here in Florida. No complaints about the quality.
