1 / 14Classic Series 30" Double Drawer Propane Tank Drawer w/ Trash Bag Ring - A-LPCDD30
★★★★☆4.2 · 5 reviewsKey features
- Size: 30" W x 23" H x 23" D
- Cut-out: 27-1/2" W x 20-1/2" H x 23-1/4" D
- Two drawers, 8" and 11" high, on soft-close tracks

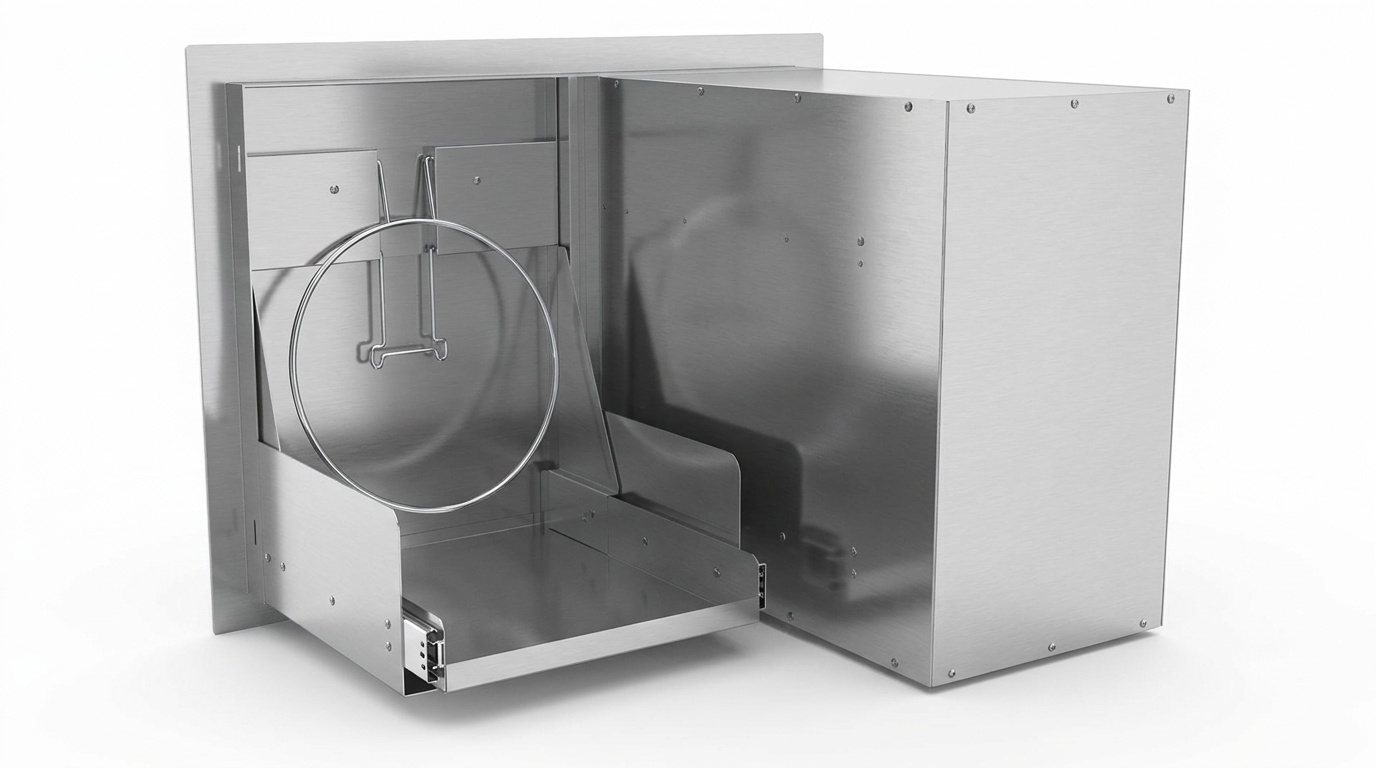

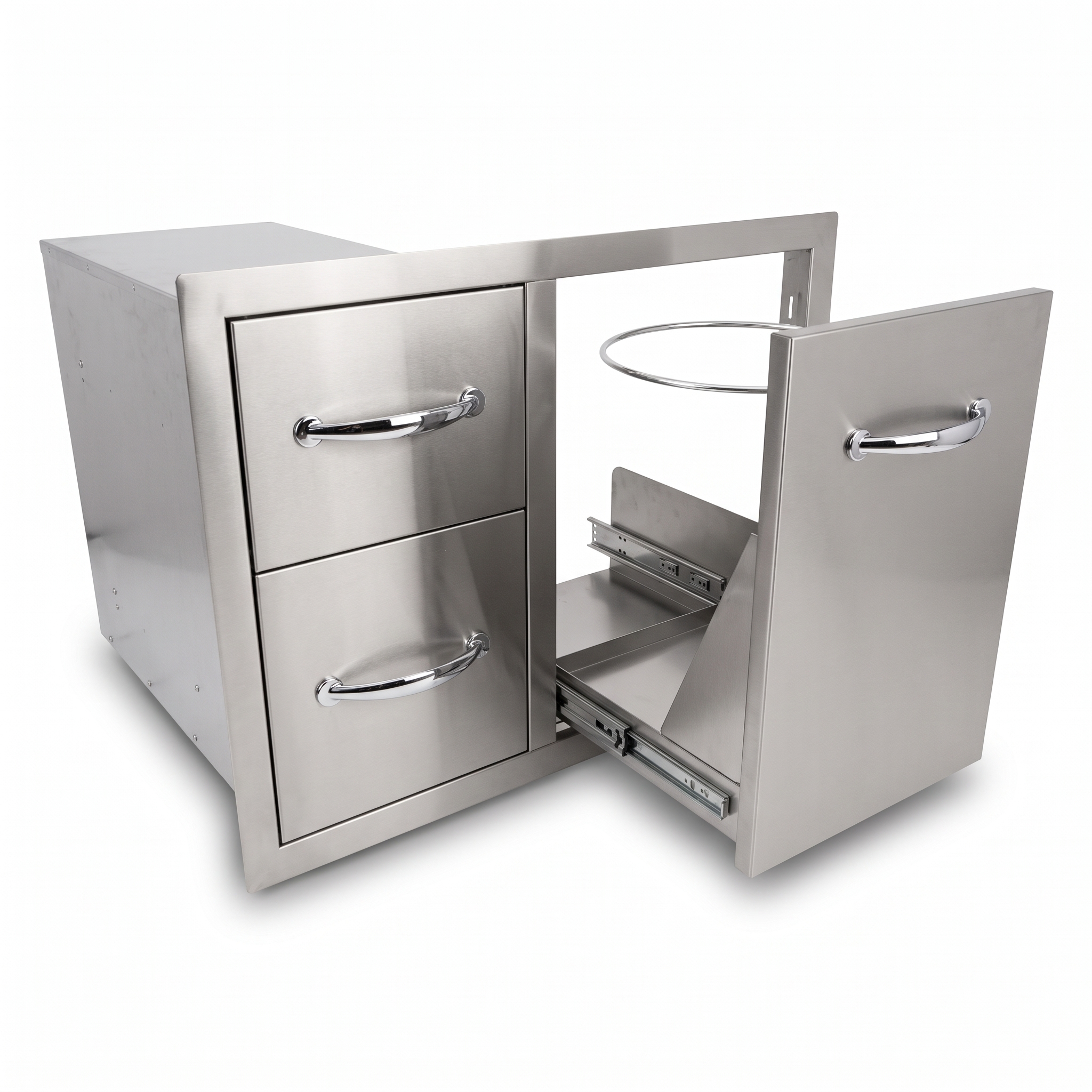

- Propane pull-out tray holds a 25 lb propane tank

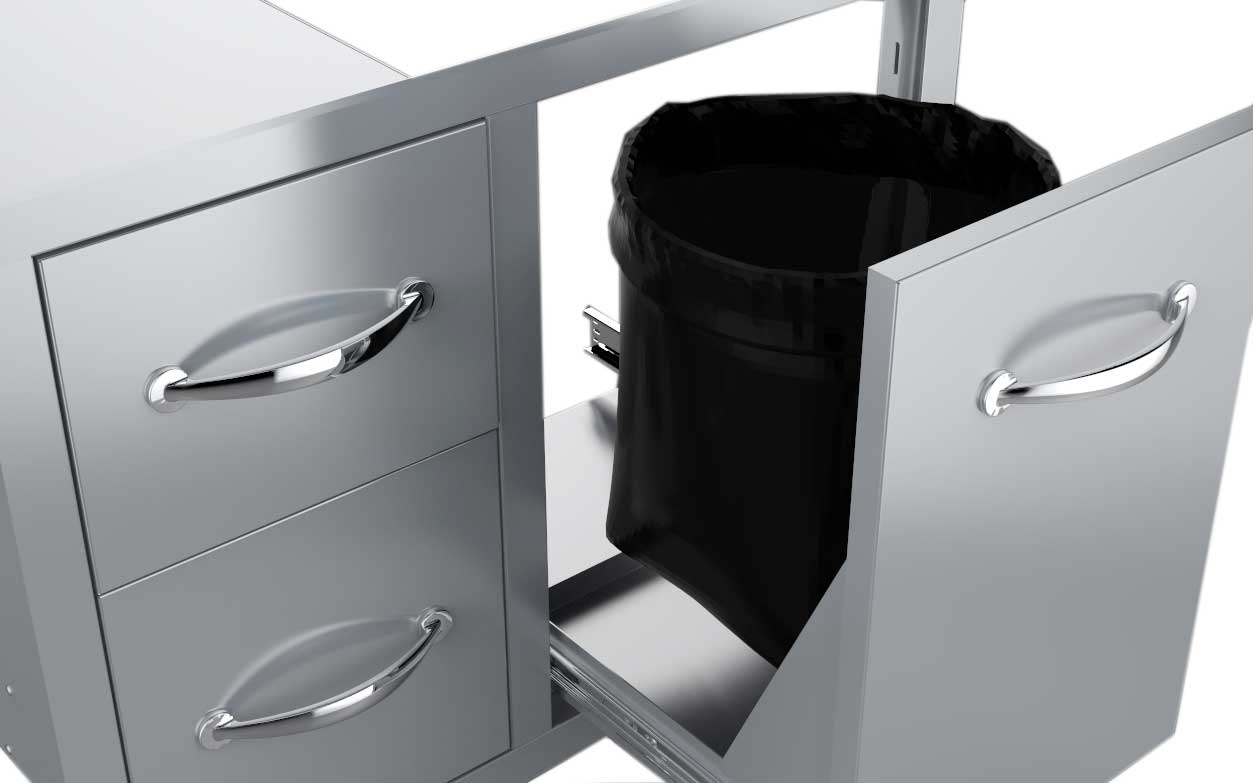

- Adjustable trash bag ring
- 304 stainless steel; 16 gauge frame, 18 gauge door, 20 gauge 201 stainless drawer box; No. 4 light brushed finish
Description

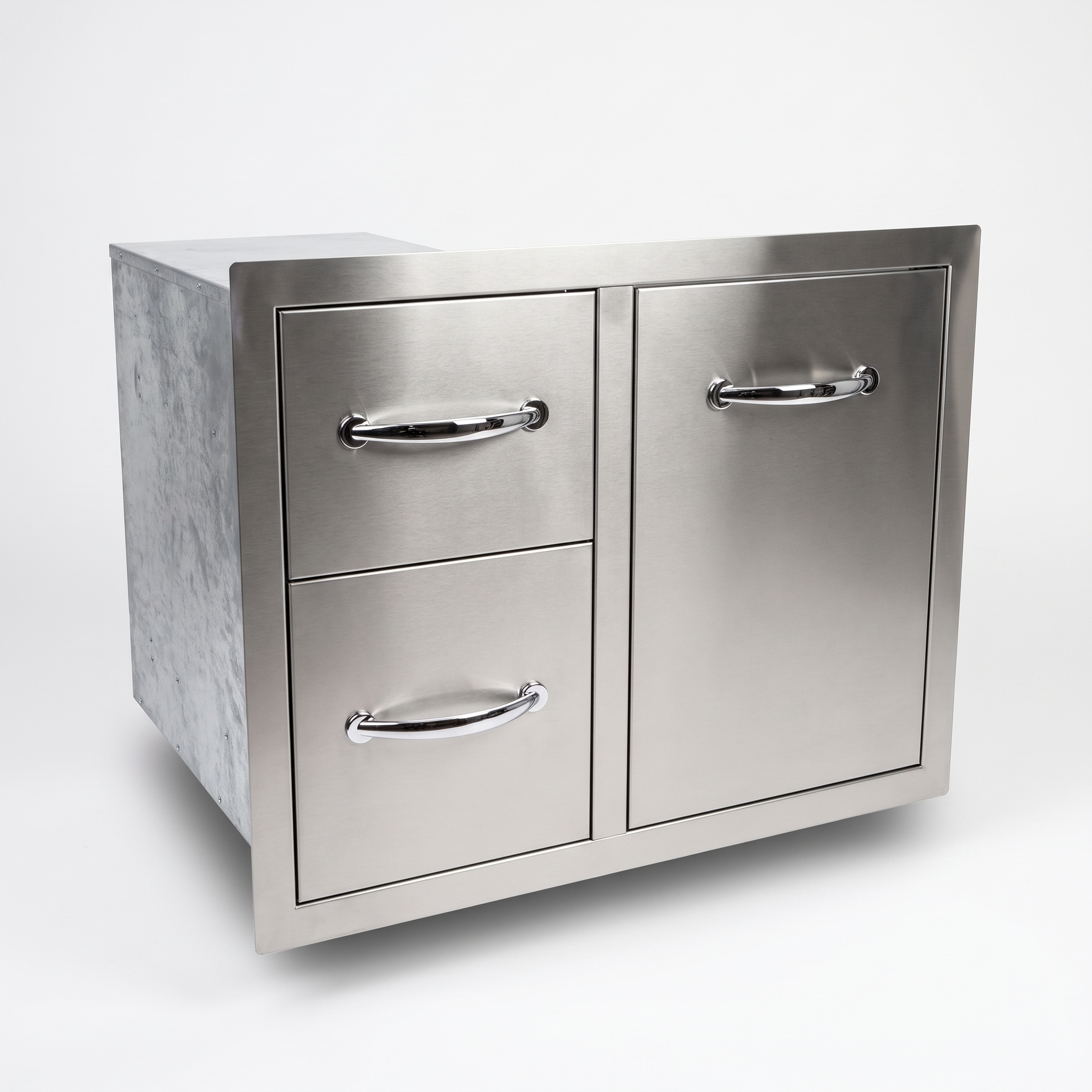

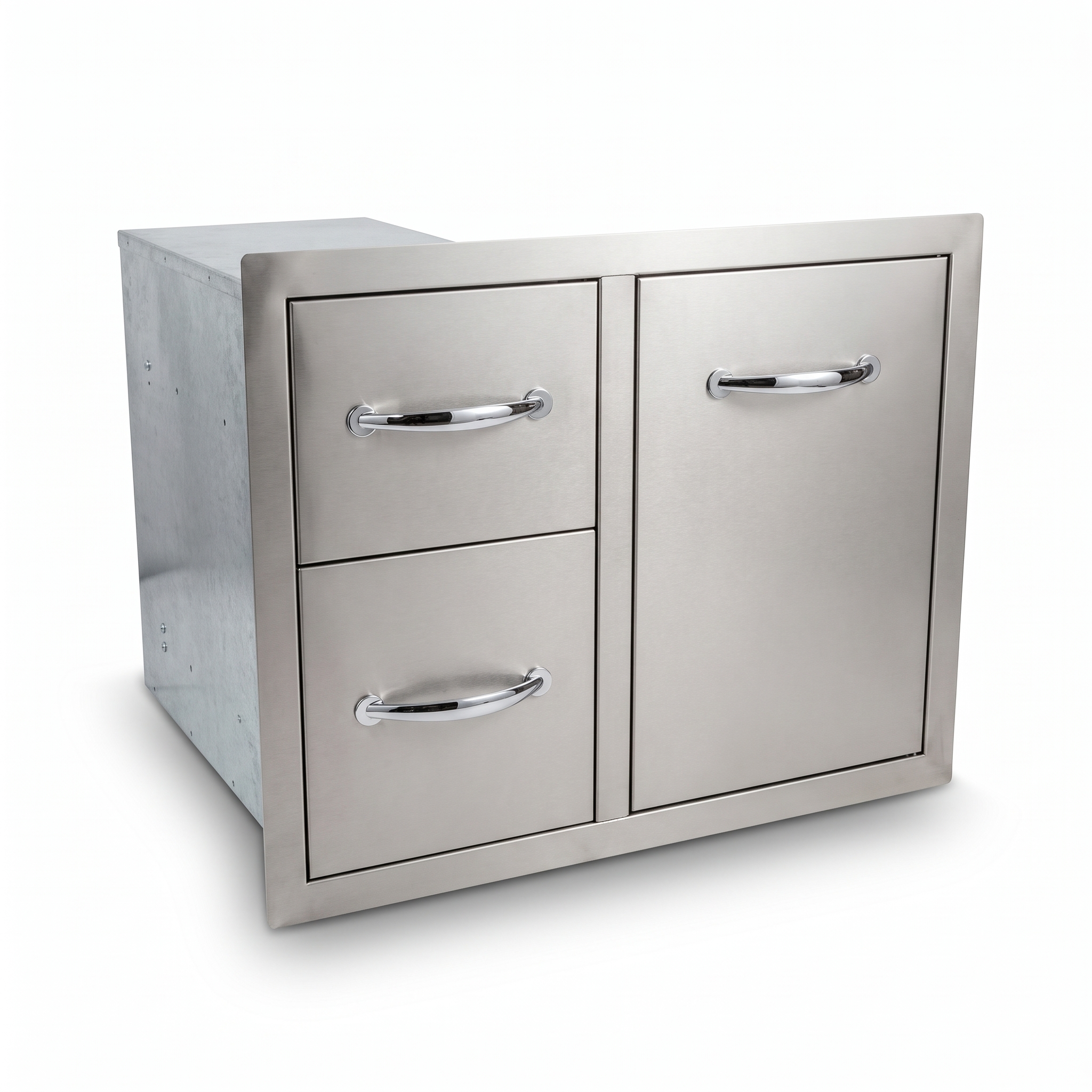

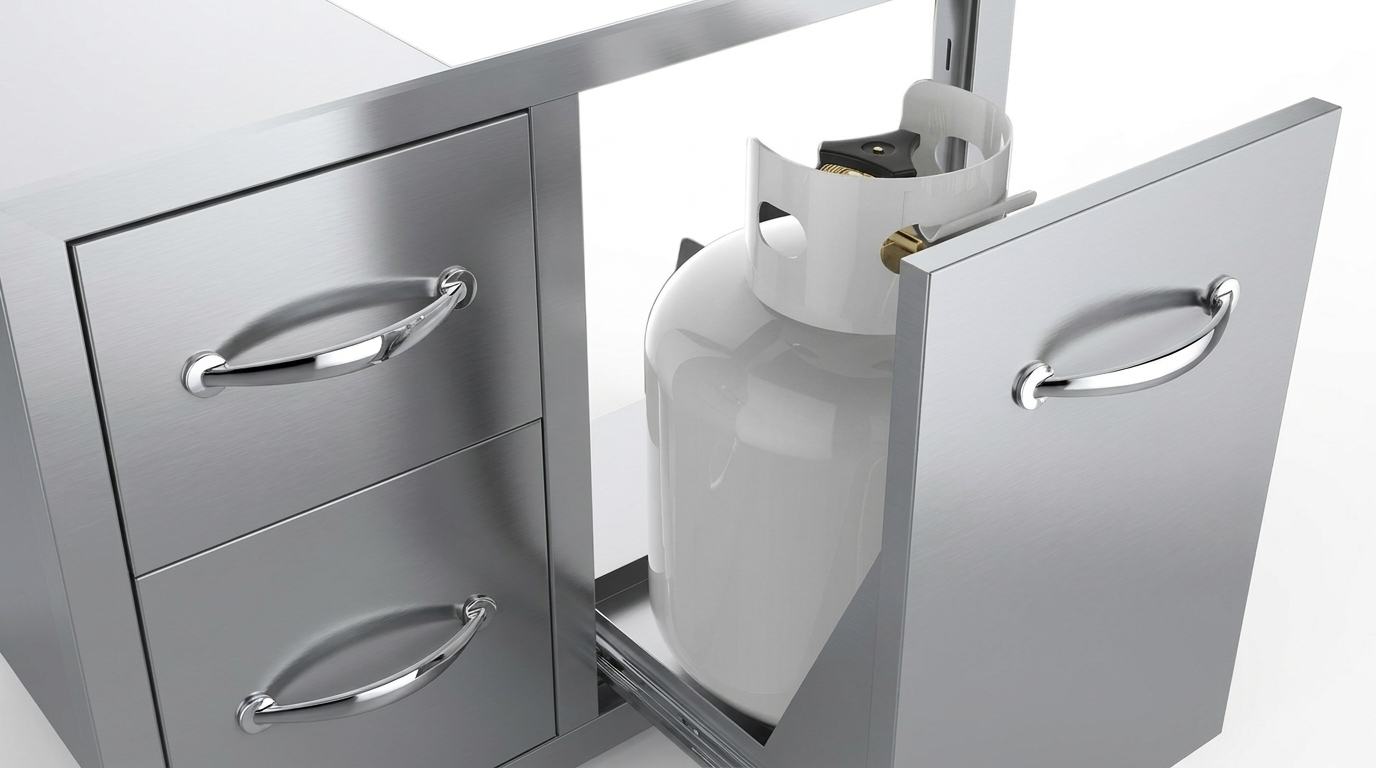

The Classic Series 30" Double Drawer Propane Tank Drawer with Trash Bag Ring (A-LPCDD30) combines a pull-out propane tray, two drawers and a trash bag ring in one unit. The tray holds a 25 lb propane tank.

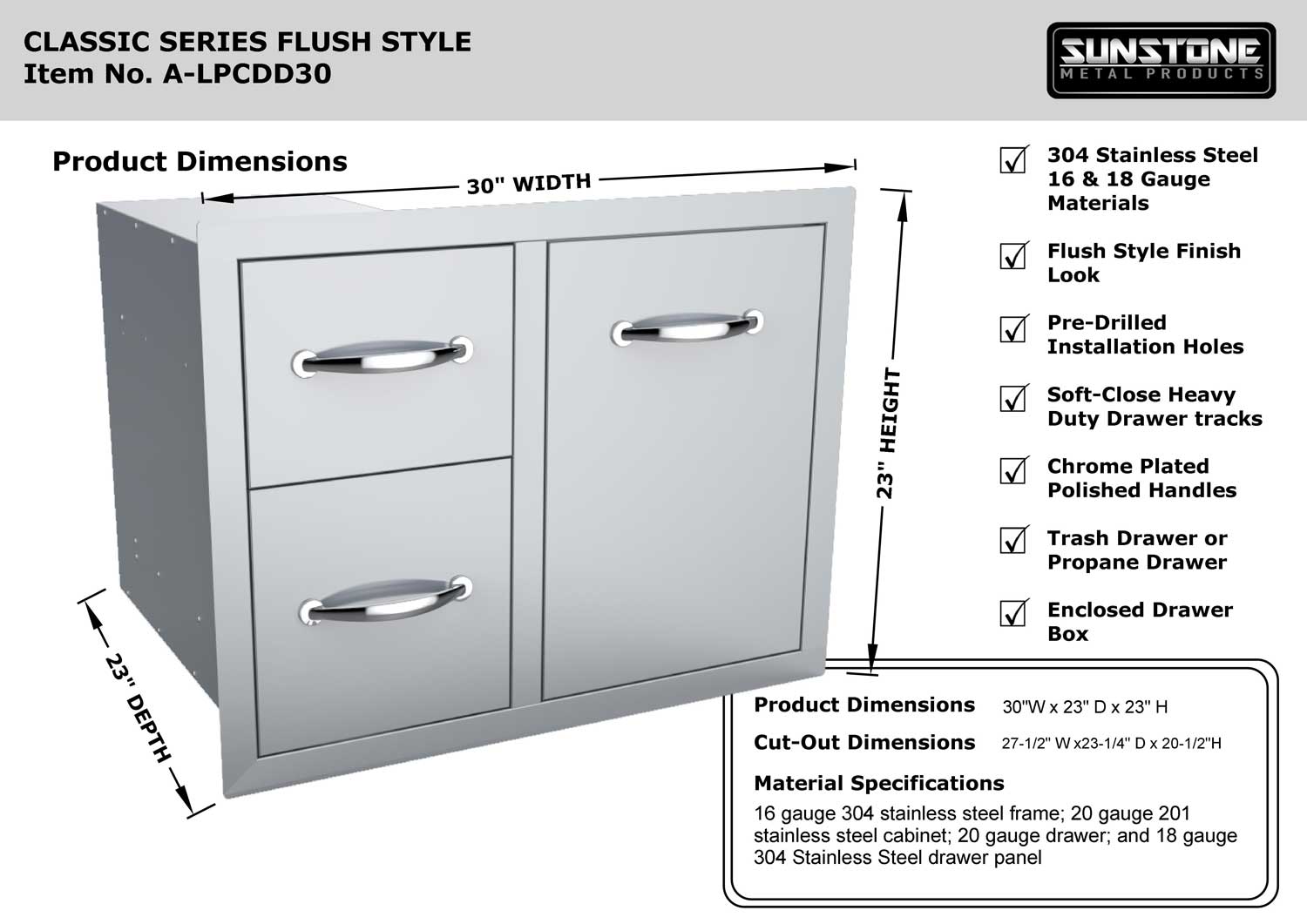

It measures 30" W x 23" H x 23" D and fits a 27-1/2" W x 20-1/2" H x 23-1/4" D cut-out. The drawers are 8" and 11" high and run on soft-close tracks, and the trash bag ring is adjustable. It weighs 62 lbs.

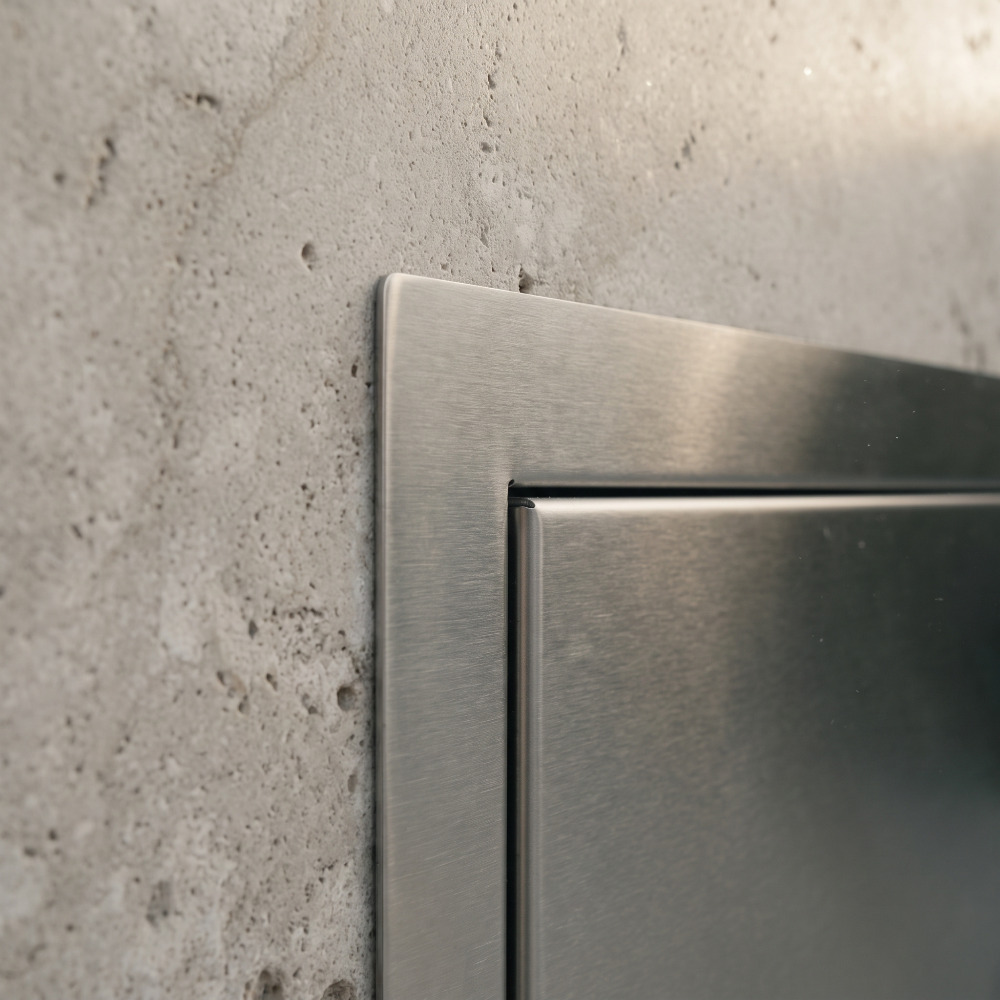

Construction is 304 stainless steel with a 16 gauge frame and 18 gauge door, plus a 20 gauge 201 stainless drawer box. The finish is No. 4 light brushed in the Classic Series flush style, and it comes with the Polished Chrome Handle (zinc alloy, chrome plated). See our warranty page for coverage.
| Name | Classic Series 30" Double Drawer Propane Tank Drawer w/ Trash Bag Ring - A-LPCDD30 |
|---|---|
| Item No. | A-LPCDD30 |
| Series | Classic Series Flush Style |
| Product size | 30" W x 23" H x 23" D |
| Cut-out | 27-1/2" W x 20-1/2" H x 23-1/4" D |
Specifications
| Type | Propane tank door |
|---|---|
| Series | Classic Series Flush Style |
| Style | Classic |
| Width | 30" |
| Depth | 23" |
| Height | 23" |
| Dimensions | 30" W x 23" H x 23" D |
| Cut-Out Width | 27-1/2" |
| Cut-Out Depth | 23-1/4" |
| Cut-Out Height | 20-1/2" |
| Cut-Out Size | 27-1/2" W x 20-1/2" H x 23-1/4" D |
| Doors | 1 |
| Drawers | 2 |
| Drawer Tracks | Soft-close |
| Material | 304 stainless steel; 16 gauge frame, 18 gauge door, 20 gauge 201 stainless drawer box |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 62 lbs |
| Brand | Sunstone |
| Item Number | A-LPCDD30 |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $662.00 | $702.00 | $610.00 | $694.00 | $685.00 |
| SKU | A-LPCDD30 | A-LPCTD30 | A-TRHD | BA-LPCTD30 | BA-TRD2027 |
| Type | Propane tank door | Propane tank door | Trash drawer | Trash drawer | Trash drawer |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Signature Series Beveled Style | Signature Series Beveled Style |
| Style | Classic | Classic | Classic | Beveled | Beveled |
| Width | 30" | 30" | 20" | 30" | 20" |
| Depth | 23" | 23" | 16-1/8" | 22-1/2" | 23" |
| Height | 23" | 23" | 27" | 23" | 27" |
| Cut-Out Width | 27-1/2" | 27-1/2" | 17-7/8" | 28" | 18-1/4" |
| Cut-Out Depth | 23-1/4" | 23-1/4" | 16-1/2" | 23-1/4" | Not listed |
| Cut-Out Height | 20-1/2" | 20-1/2" | 24-3/8" | 21" | 25-1/4" |
| Doors | 1 | 1 | Not listed | Not listed | Not listed |
| Drawers | 2 | 3 | 1 | 3 | 1 |
| Drawer Tracks | Soft-close | Soft-close | Soft-close | Soft-close | Soft-close |
| Material | 304 stainless steel; 16 gauge frame, 18 gauge door, 20 gauge 201 stainless drawer box | 304 stainless steel; 16 gauge frame, 18 gauge door, 20 gauge 201 stainless drawer box | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel drawer panel, 20 gauge 201 stainless box, 20 gauge 201 stainless box | 16 gauge 304 stainless steel frame and panels, 304 stainless steel drawers and tray, 201 stainless steel interior cabinet box | 304 stainless steel frame, panels and drawer tray; ABS plastic trash bins (2) |
| Gauge | 16 gauge | 16 gauge | 16 gauge | Not listed | Not listed |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Weight | 62 lbs | 69 lbs | 39.6 lbs | Not listed | 34 lbs |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | A-LPCDD30 | A-LPCTD30 | A-TRHD | BA-LPCTD30 | BA-TRD2027 |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Signature Series Beveled Handle (zinc alloy, chrome plated) | Signature Series Beveled Handle (zinc alloy, chrome plated) |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (1)
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 48 hours after delivery.
Receiving Your Shipment
If you received an item that appears to have been damaged in-transit, call us immediately at 888-934-9449 or 512-487-5116, preferably while the driver is still there.
Inspect all freight before signing the driver's receipt. If damage is found, do not reject the shipment, note the damage on the receipt and contact us. For concealed damage, a claim must be filed within 48 hours of delivery.
FedEx and UPS claims are usually resolved within 14 business days. Freight shipper claims may take up to 120 calendar days.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
Items cannot have been installed or used. Customer is responsible for all return freight charges, unless the error is on our part. All returned goods must be in new condition and in original cartons, well packed.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
This 30-inch combo unit fits perfectly under my 32-inch grill. The tank tray is a lifesaver for keeping the propane tank tucked away, and the double drawers are surprisingly spacious for all my grilling tools and accessories. Installation was straightforward, and it feels very sturdy.
The A-LPCDD30 does what it's supposed to. The flush style looks good with my existing cabinets, and the drawers slide smoothly. My only gripe is that for the price, I expected the stainless steel to feel a little more premium, but it's still functional.
Absolutely love this Sunstone combo unit! The tank tray is fantastic for keeping my propane cylinder out of sight, and the two drawers are perfect for storing all my spatulas, tongs, and even some spices. It really completes the look of my outdoor kitchen and makes everything so much more organized.
I'm really happy with this purchase. The 30-inch size is just right for my 30-inch grill, and the flush design gives it a clean, integrated look. The drawers are deep enough for all my grilling essentials, and the tank tray is a huge convenience.
This A-LPCDD30 unit is a game-changer for my backyard BBQ setup. The double drawers hold everything I need, from grill brushes to serving utensils, and the propane tank tray keeps things tidy and safe. It's built like a tank and looks fantastic next to my Sunstone grill.
