1 / 10Key features
- Size: 36" W x 21-1/8" H x 1-5/8" D
- Cut-out: 33-1/2" W x 18-1/2" H

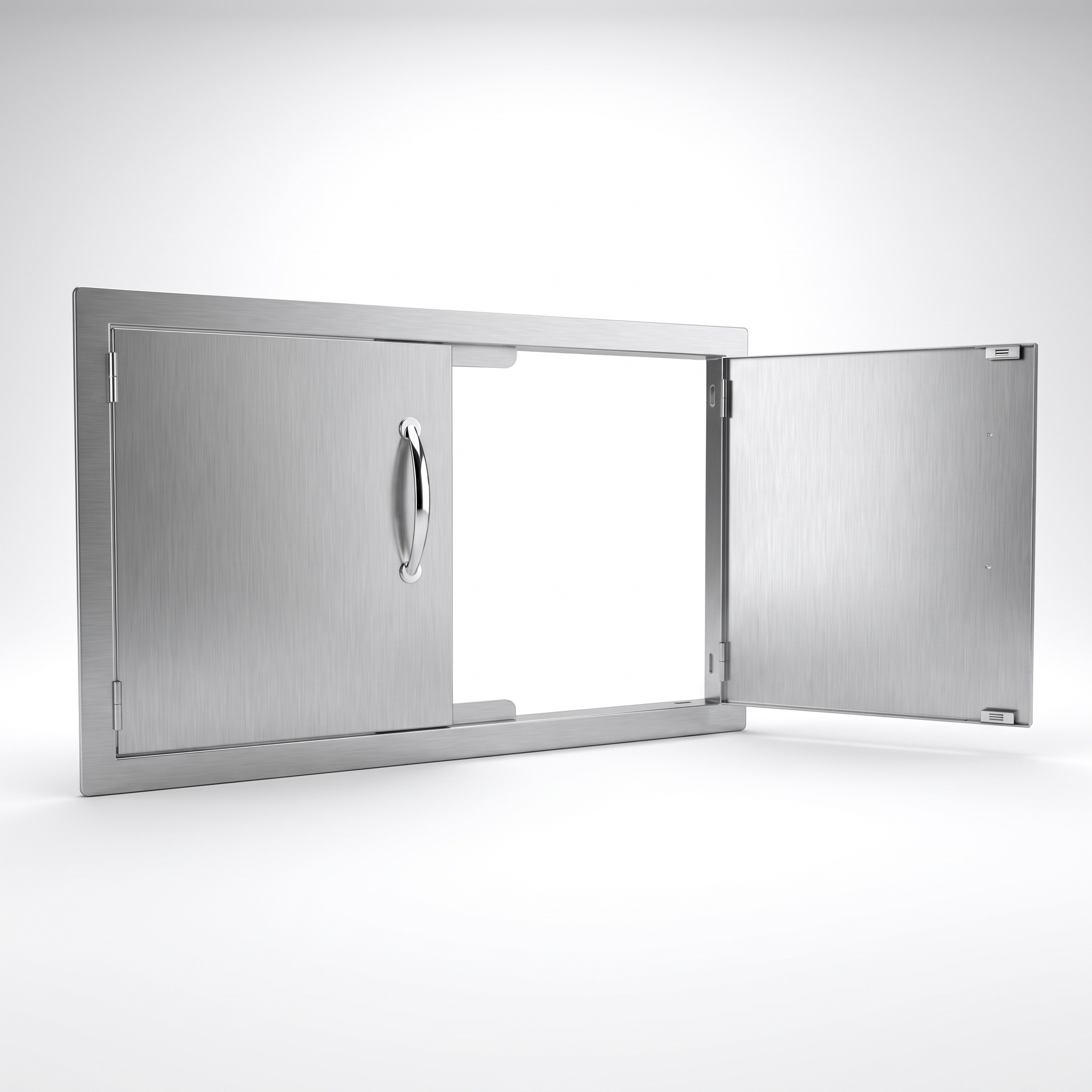

- Double doors, non-vented, exposed hinges

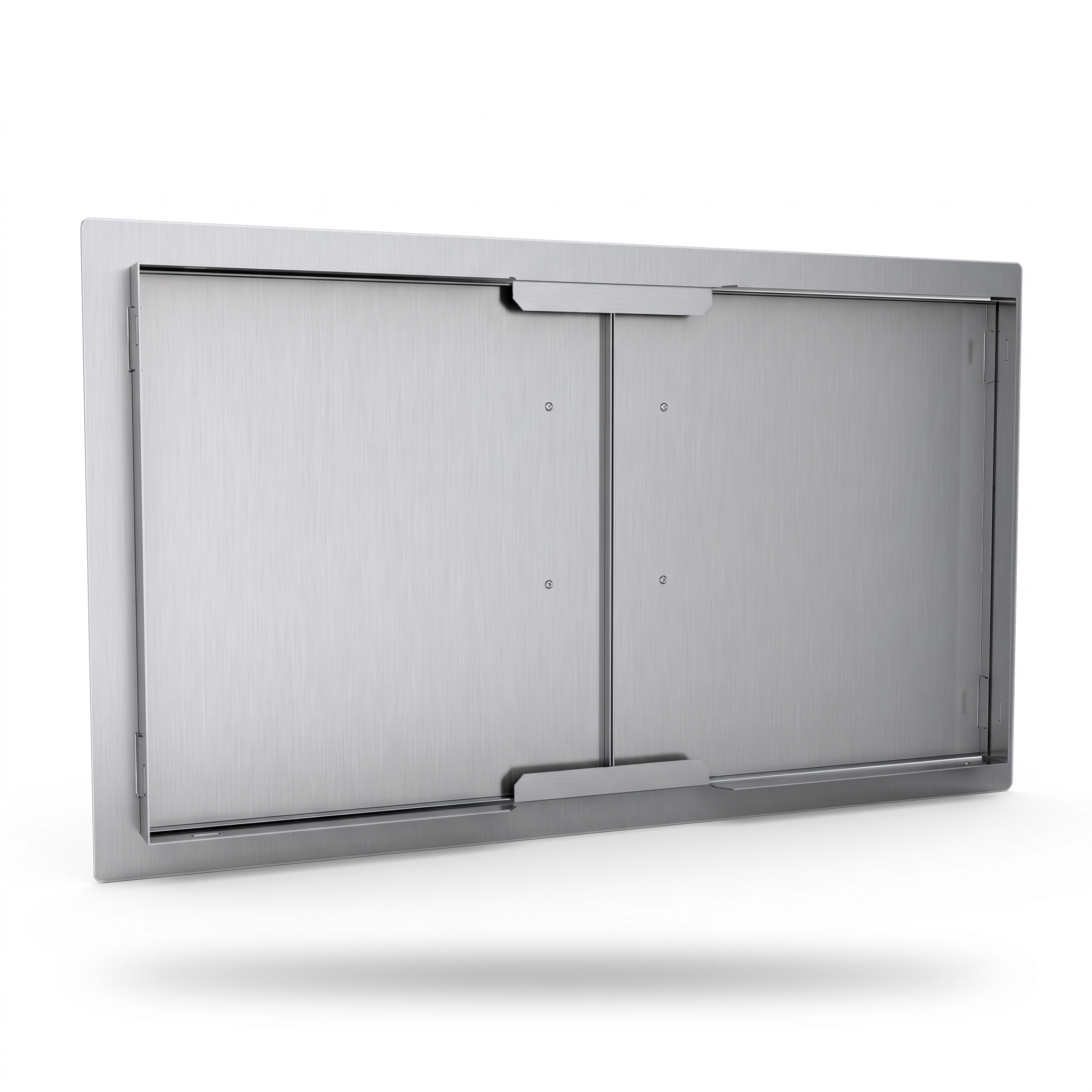

- Mounts with screws through the pre-cut frame holes
- Install with the handles at the highest position
- Covered by our warranty: see details
Description

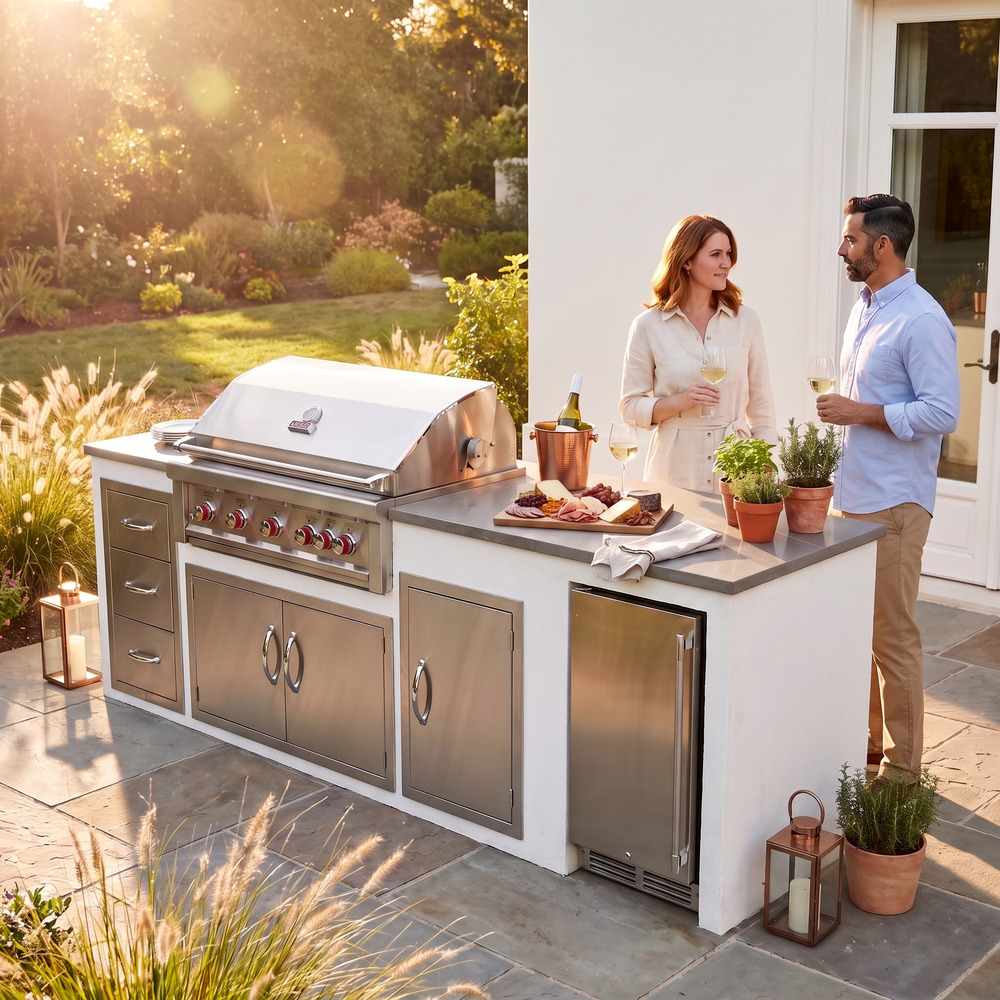

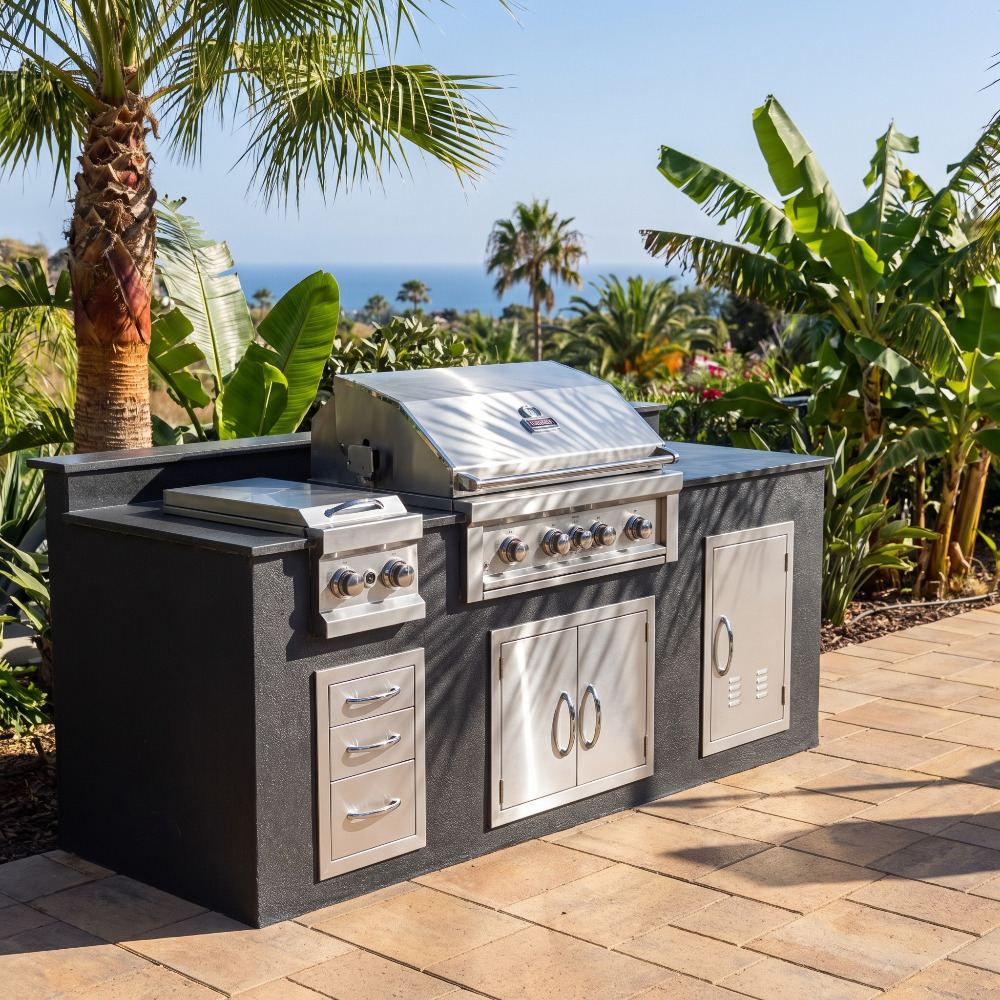

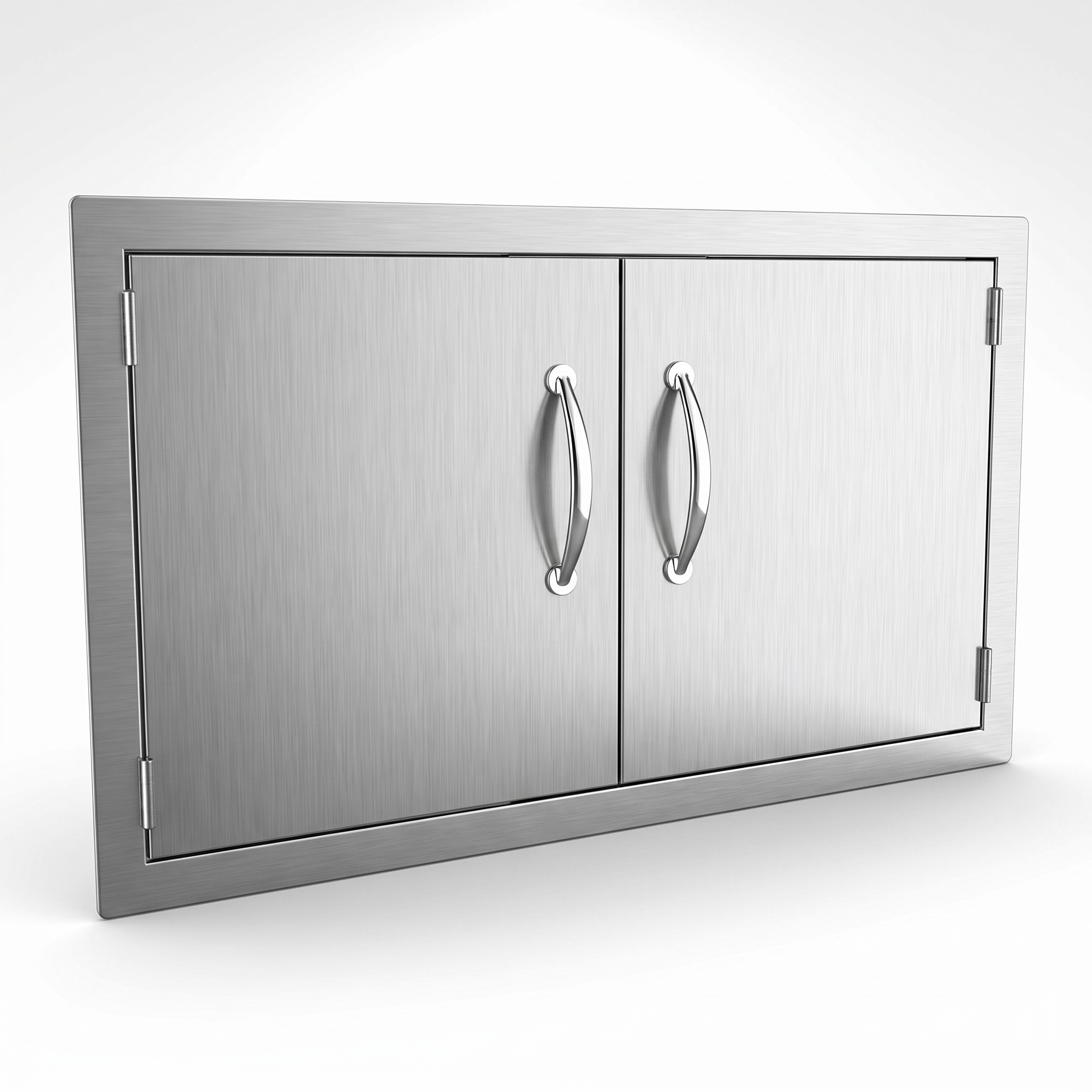

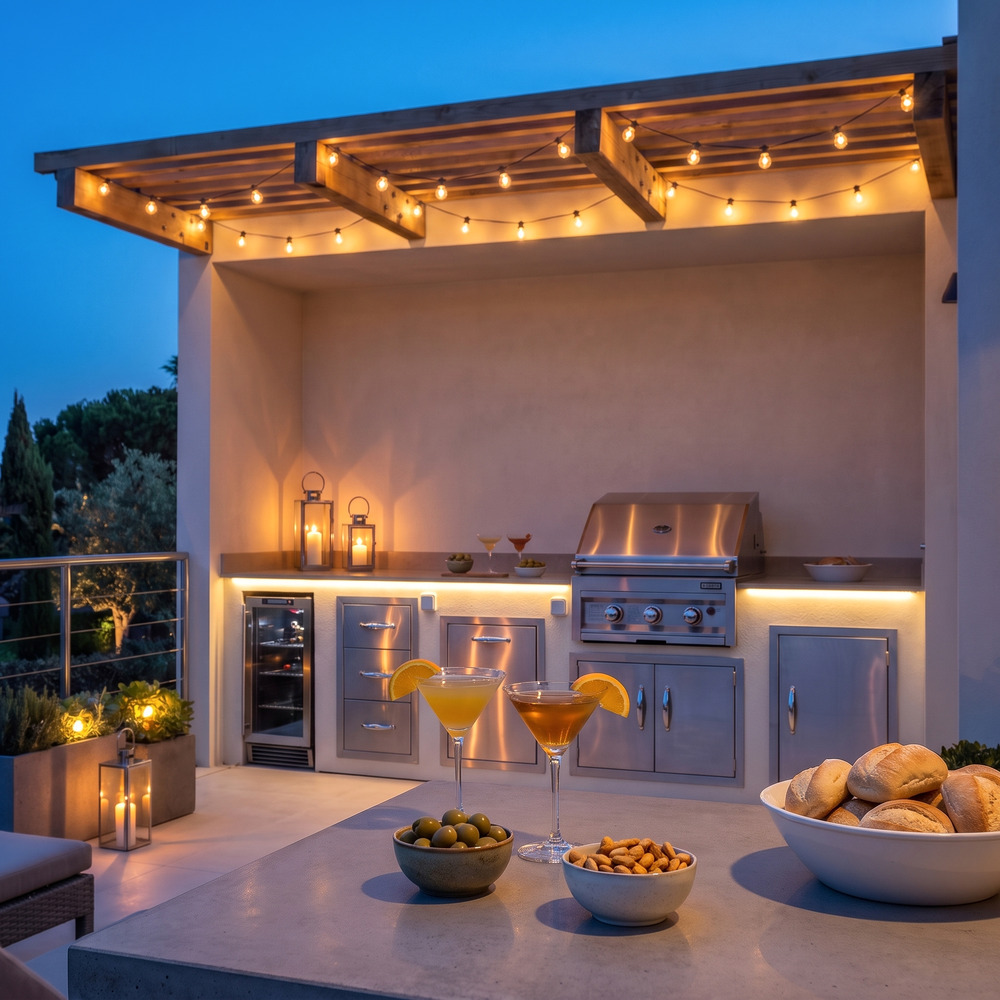

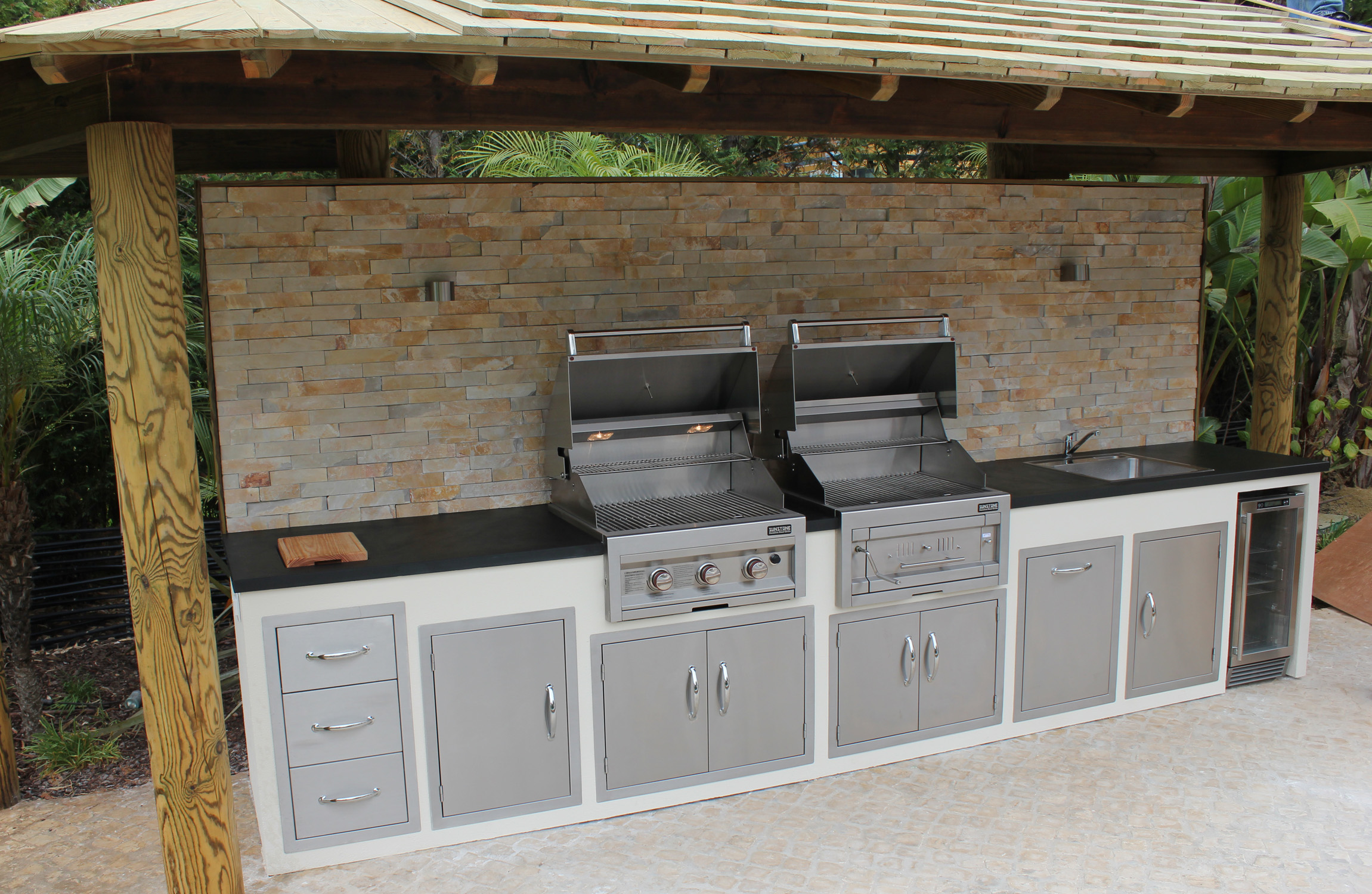

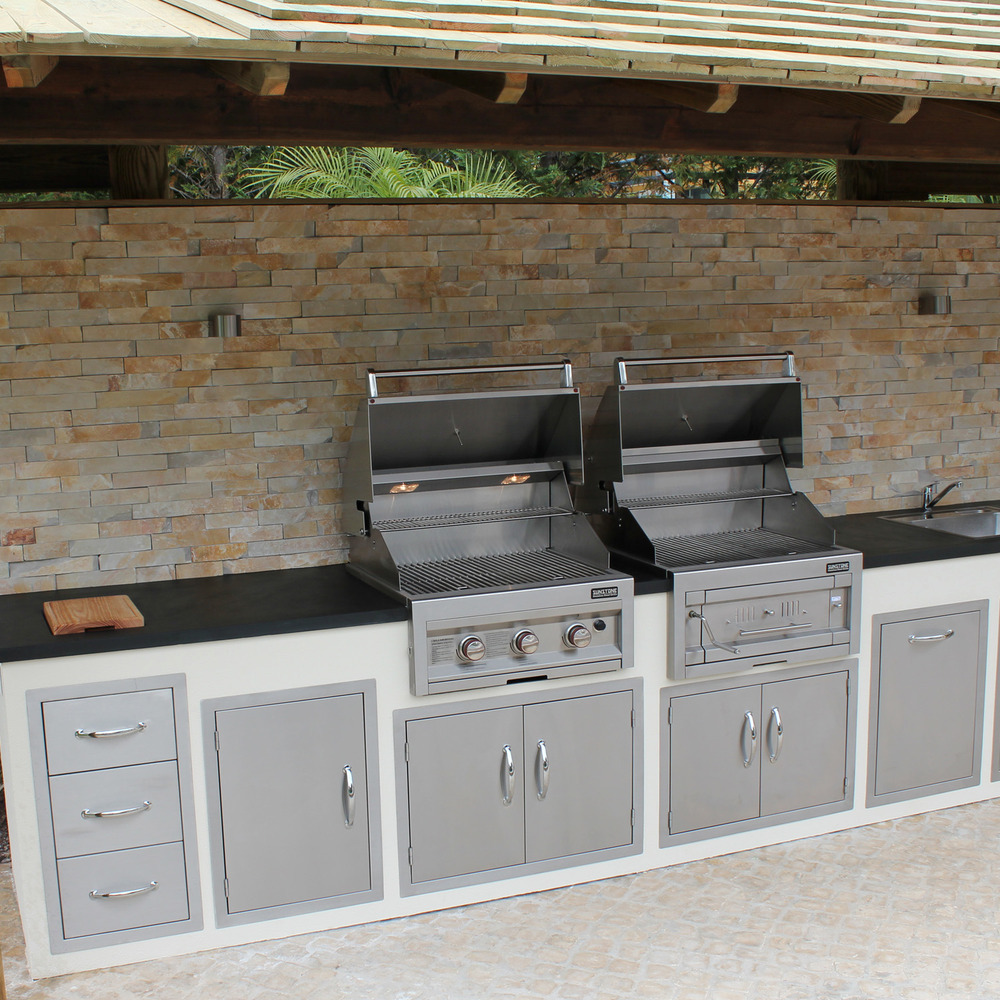

The Classic Series 36" Double Door Flush Mount (A-DD36) gives wide access to the storage space under a grill or counter in an outdoor kitchen island.
It measures 36" W x 21-1/8" H x 1-5/8" D and fits a 33-1/2" W x 18-1/2" H cut-out. The doors are not vented and hang on exposed hinges. The unit mounts with screws through the pre-cut frame holes; install it with the handles at the highest position.

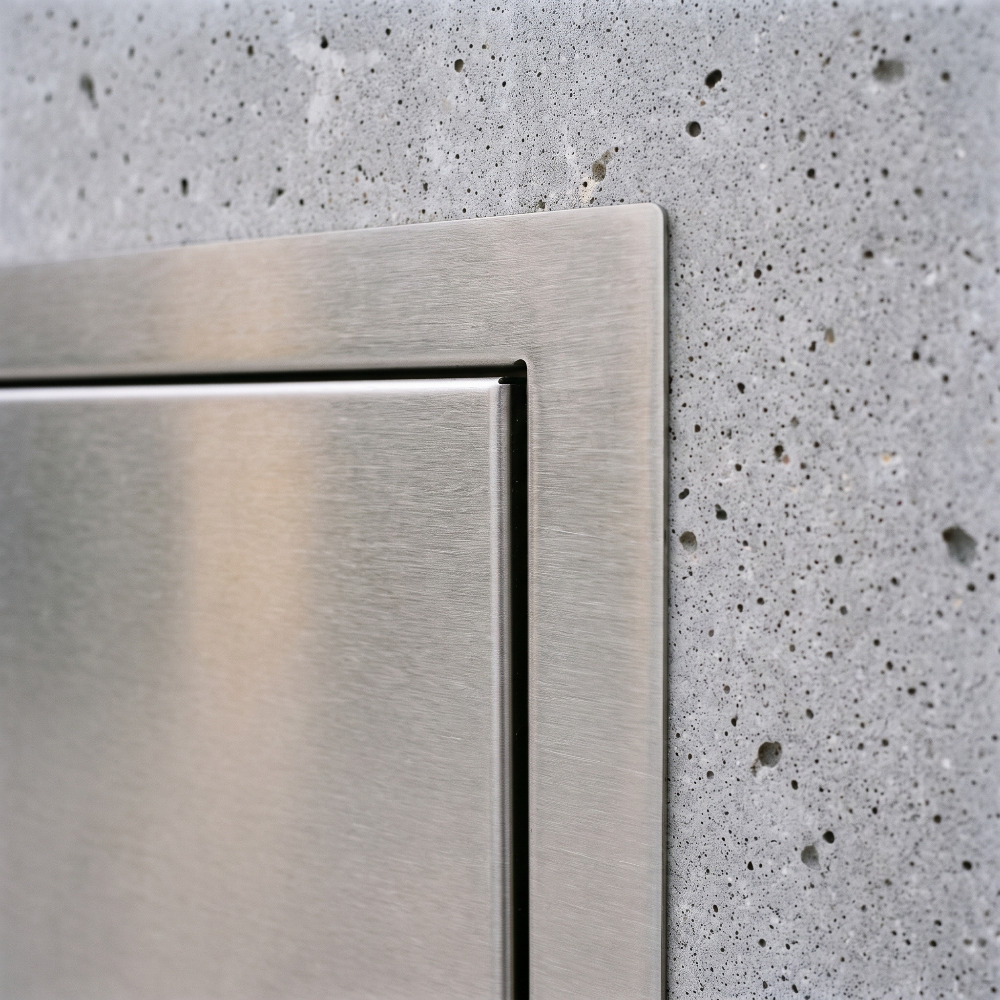

The frame is 16 gauge 304 stainless steel and the door panels 18 gauge 304 stainless steel, in a No. 4 light brushed finish with the flush look of the other Classic Series components. It ships with cast, chrome plated handles.
See our warranty page for coverage.
| Name | Classic Series 36" Double Door Flush Mount - A-DD36 |
|---|---|
| Item No. | A-DD36 |
| Series | ODK Components |
| Product size | 36" W x 21-1/8" H x 1-5/8" D |
| Cut-out | 33-1/2" W x 18-1/2" H |
Specifications
| Type | Double door |
|---|---|
| Collection | ODK Components |
| Series | Classic Series Flush Style |
| Width | 36" |
| Depth | 1-5/8" |
| Height | 21-1/8" |
| Dimensions | 36" W x 21-1/8" H x 1-5/8" D |
| Cut-Out Width | 33-1/2" |
| Cut-Out Height | 18-1/2" |
| Cut-Out Size | 33-1/2" W x 18-1/2" H |
| Doors | 2 |
| Door Swing | Double doors |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Brand | Sunstone |
| Item Number | A-DD36 |
| Venting | Non-vented |
| Hinges | Exposed |
| Handle | Cast handles, chrome plated |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $373.00 | $298.00 | $235.00 | $188.00 | $198.00 |
| SKU | A-DD36 | A-DD30 | A-DV1724-L | A-DH1724-L | A-DV1420-L |
| Type | Double door | Double door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style |
| Width | 36" | 30" | 20" | 27" | 17" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" |
| Height | 21-1/8" | 21-1/8" | 27" | 20" | 23" |
| Cut-Out Width | 33-1/2" | 27-1/2" | 17-1/4" | 24-1/4" | 14-1/4" |
| Cut-Out Height | 18-1/2" | 18-1/2" | 24-1/4" | 17-1/4" | 20-1/4" |
| Doors | 2 | 2 | 1 | 1 | 1 |
| Door Swing | Double doors | Double doors | Left swing (the right version is item A-DV1724) | Left swing (the right version is item A-DH1724) | Left swing (the right version is item A-DV1420) |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | A-DD36 | A-DD30 | A-DV1724-L | A-DH1724-L | A-DV1420-L |
| Venting | Non-vented | Non-vented | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) |
| Hinges | Exposed | Exposed | Exposed | Exposed | Exposed |
| Handle | Cast handles, chrome plated | Cast handles, chrome plated | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) |
| Door Opening | Not listed | Not listed | 180 degrees | 180 degrees | 180 degrees |
| Depth To Frame Hole | Not listed | Not listed | 1" | 1" | 1" |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (5)
ODK spec sheets
Installation guides
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 48 hours after delivery.
Receiving Your Shipment
If you received an item that appears to have been damaged in-transit, call us immediately at 888-934-9449 or 512-487-5116, preferably while the driver is still there.
Inspect all freight before signing the driver's receipt. If damage is found, do not reject the shipment, note the damage on the receipt and contact us. For concealed damage, a claim must be filed within 48 hours of delivery.
FedEx and UPS claims are usually resolved within 14 business days. Freight shipper claims may take up to 120 calendar days.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
Items cannot have been installed or used. Customer is responsible for all return freight charges, unless the error is on our part. All returned goods must be in new condition and in original cartons, well packed.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
These 36-inch doors look good with my Sunstone grill, the brushed finish matches well. However, getting them perfectly flush during installation took more tweaking than I expected. The magnetic closures are a little weak too, sometimes they pop open with a strong gust of wind.
I just finished my outdoor kitchen build and these 36" double access doors are fantastic. The #4 light brushed finish is spot on with my other Sunstone components, giving everything a really cohesive and high-end look. Installation was straightforward for a DIYer like me.
These Sunstone access doors are exactly what I needed for under my grill. The stainless steel feels really solid and the flush mount design makes it look super clean. Plenty of space inside for my propane tank and some grilling tools.
As a contractor, I appreciate good quality, and these A-DD36 doors deliver. The fit and finish are excellent, and my client was thrilled with how seamlessly they integrated into their outdoor kitchen island. The sleek design really elevates the whole space.
Overall, these are really good access doors. The construction is robust and the 36-inch size is perfect for storing larger items. My only minor complaint is that the handles could feel a little more substantial, but it's not a deal-breaker.
