1 / 11Classic Series 20" Tank Tray Swivel Action Door Combo - C-LPCD20
★★★★☆4.4 · 5 reviewsKey features
- Size: 20" W x 27" H x 17" D
- Cut-out: 18-1/2" W x 24-1/2" H x 16" D

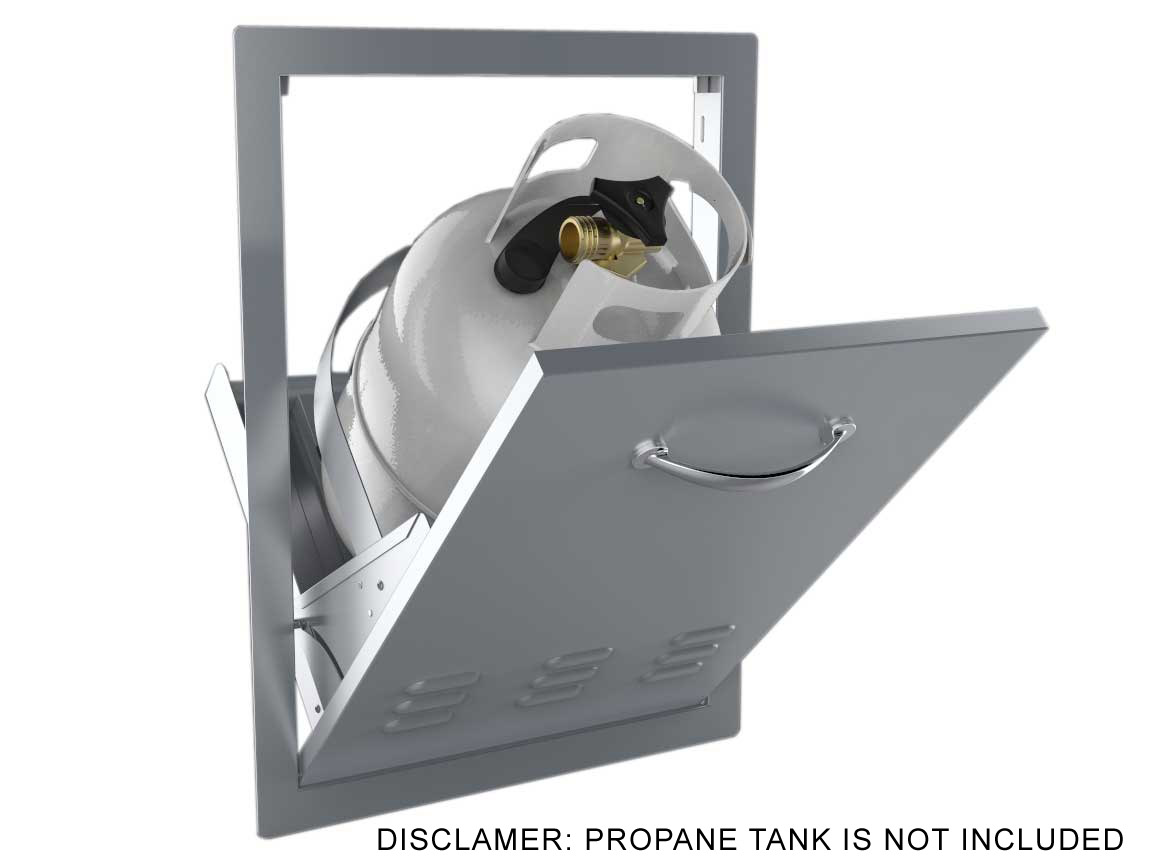

- Vented swivel action tilt-out door

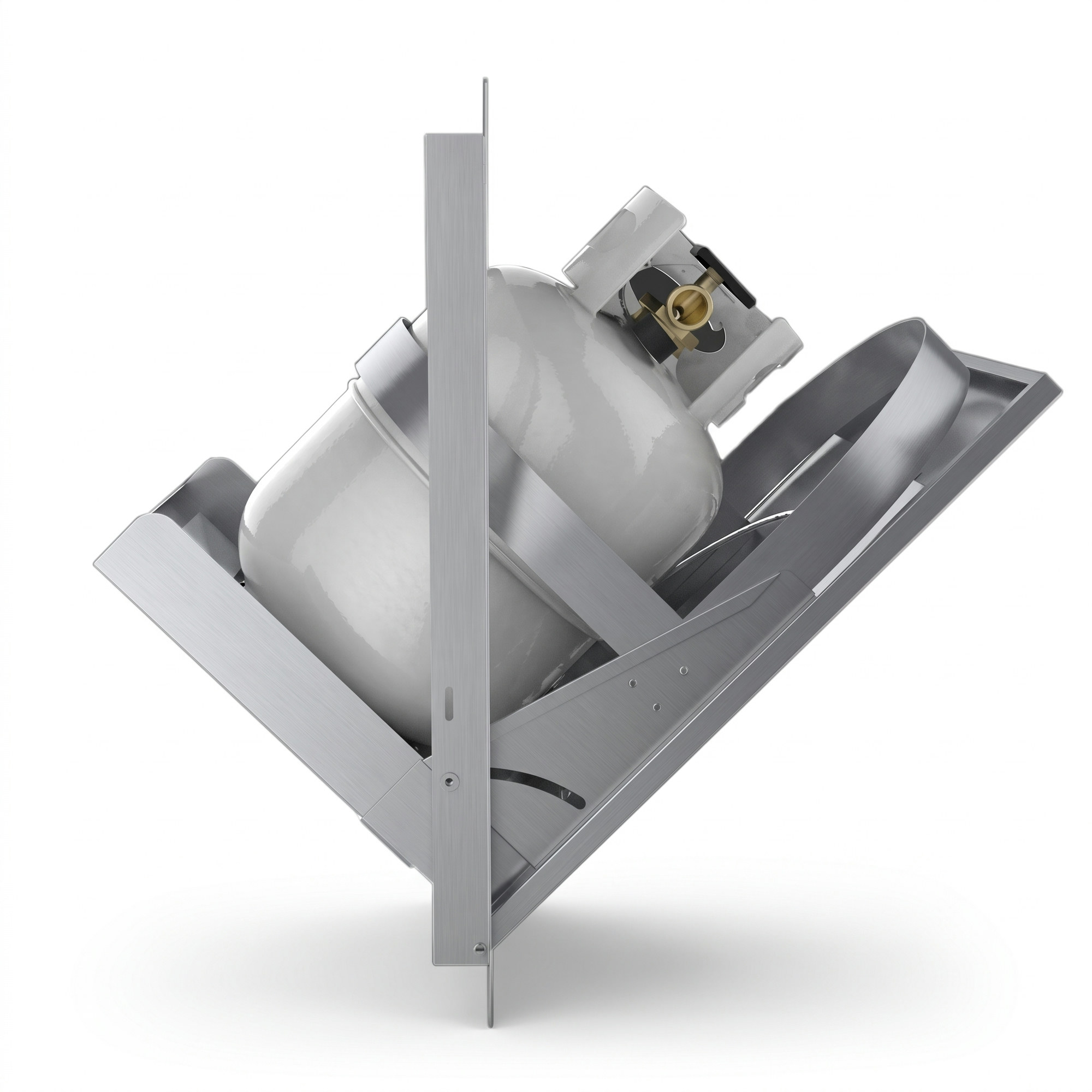

- Holds a 25 lb propane tank

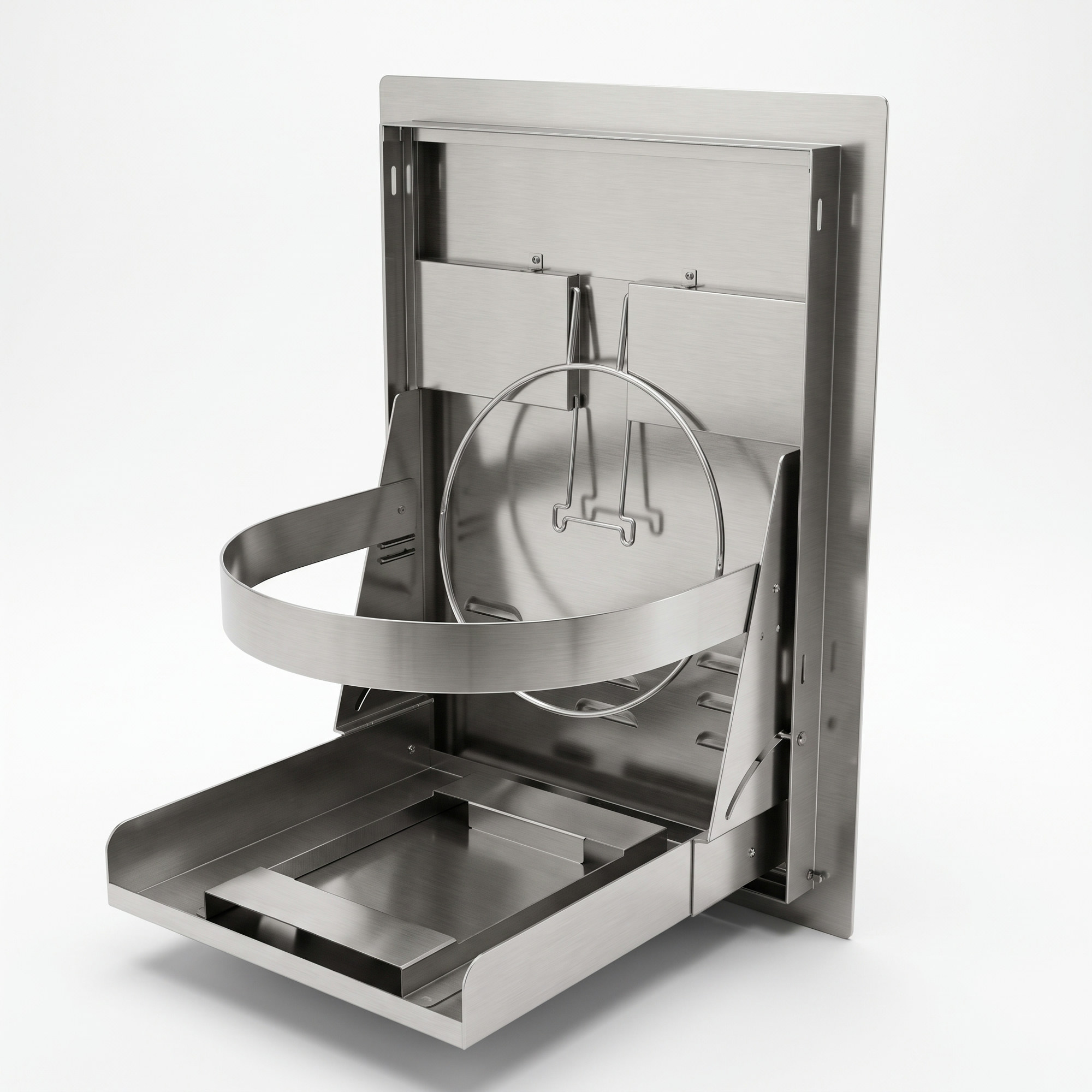

- Fold-out base shelf and support arm with trash bag ring

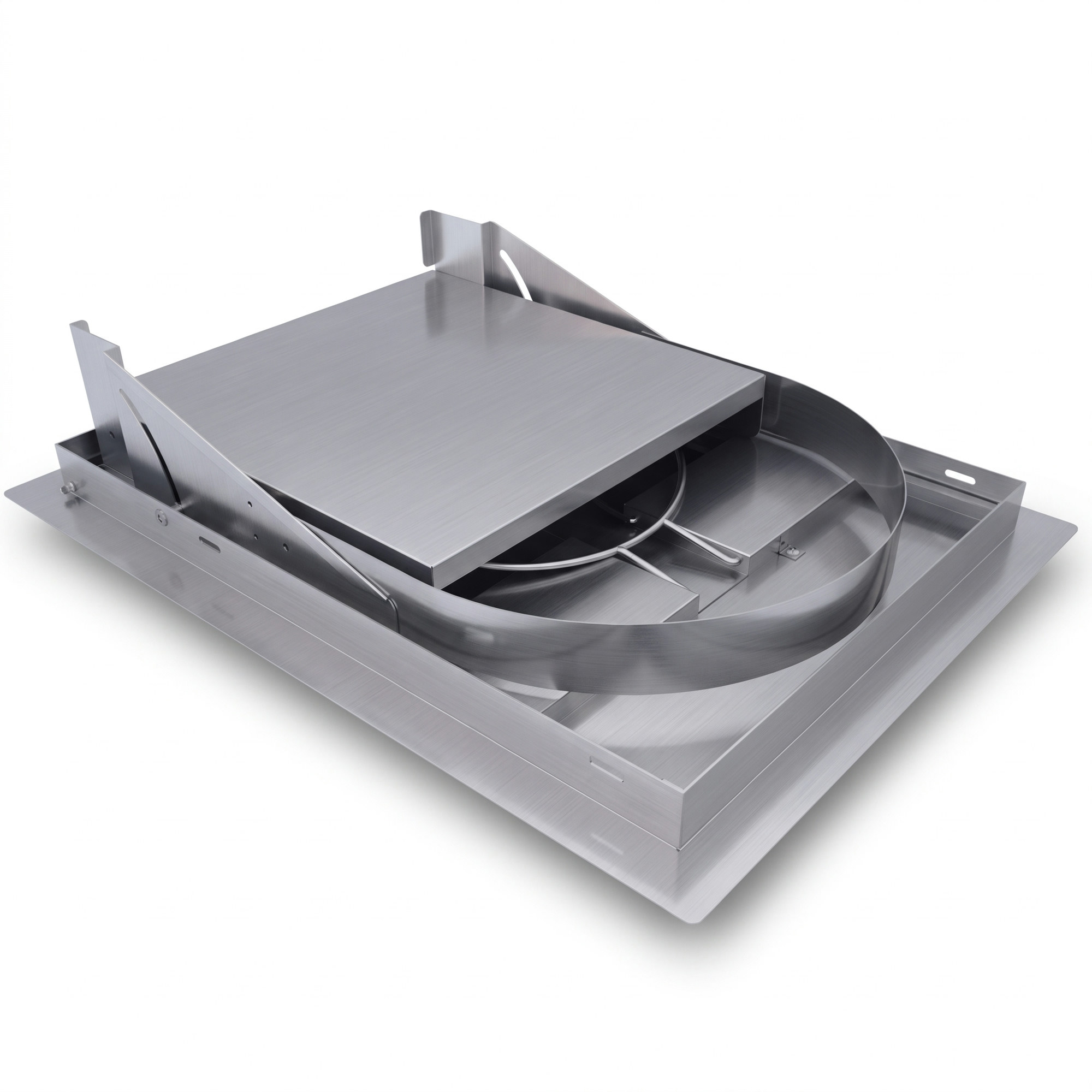

- Ships collapsed; handle installs with a Phillips screwdriver; secures with screws through pre-cut side holes
Description

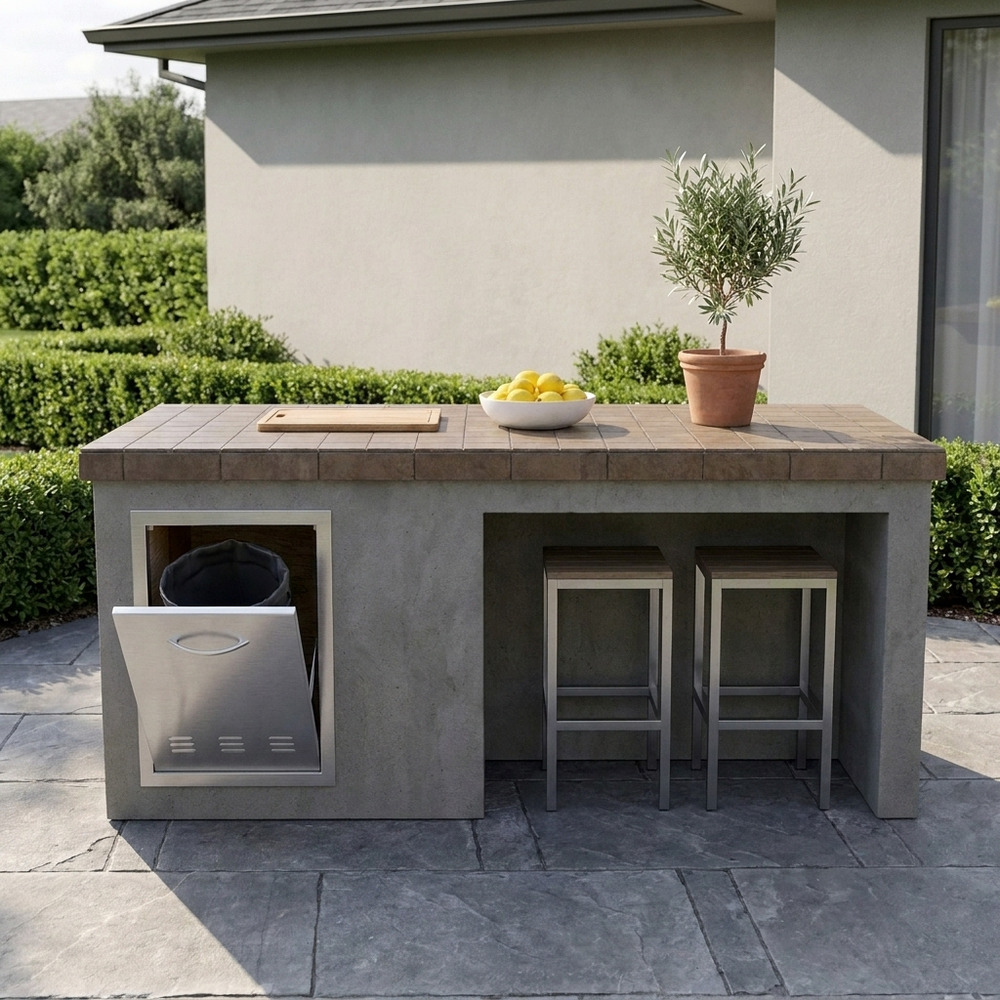

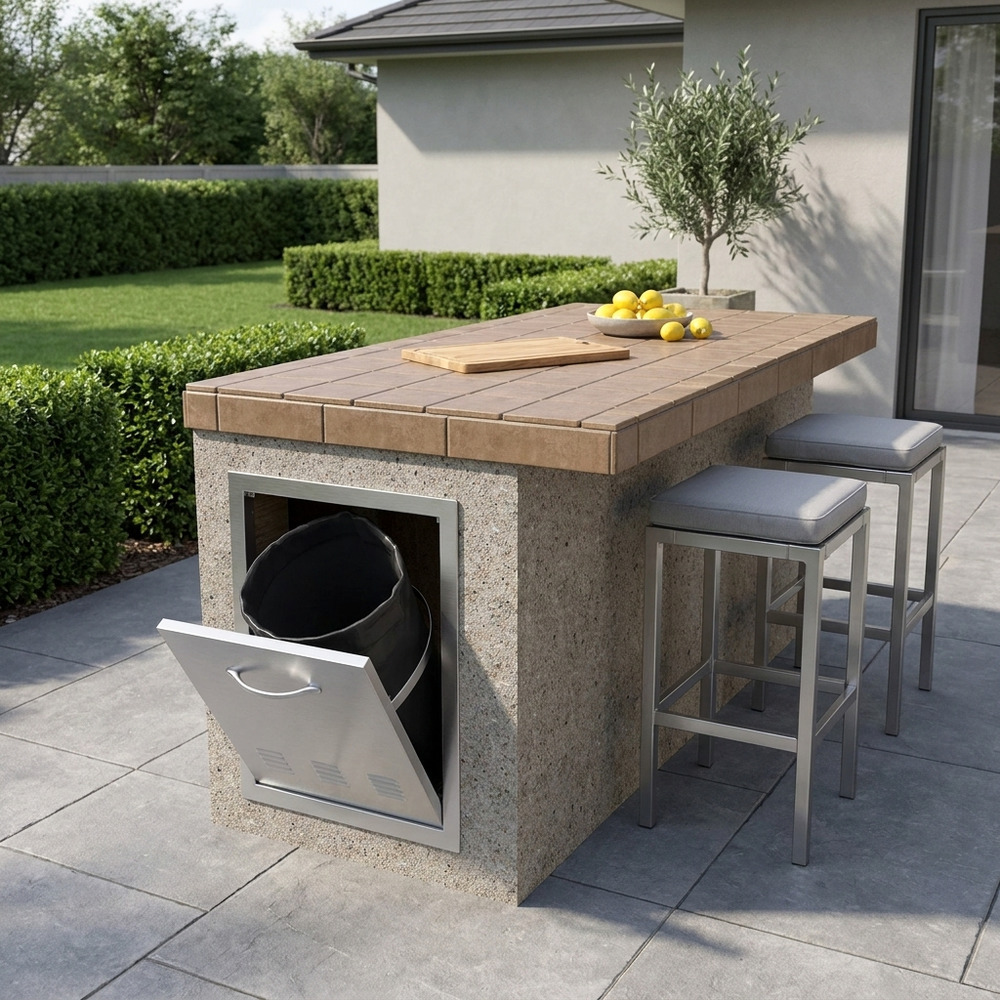

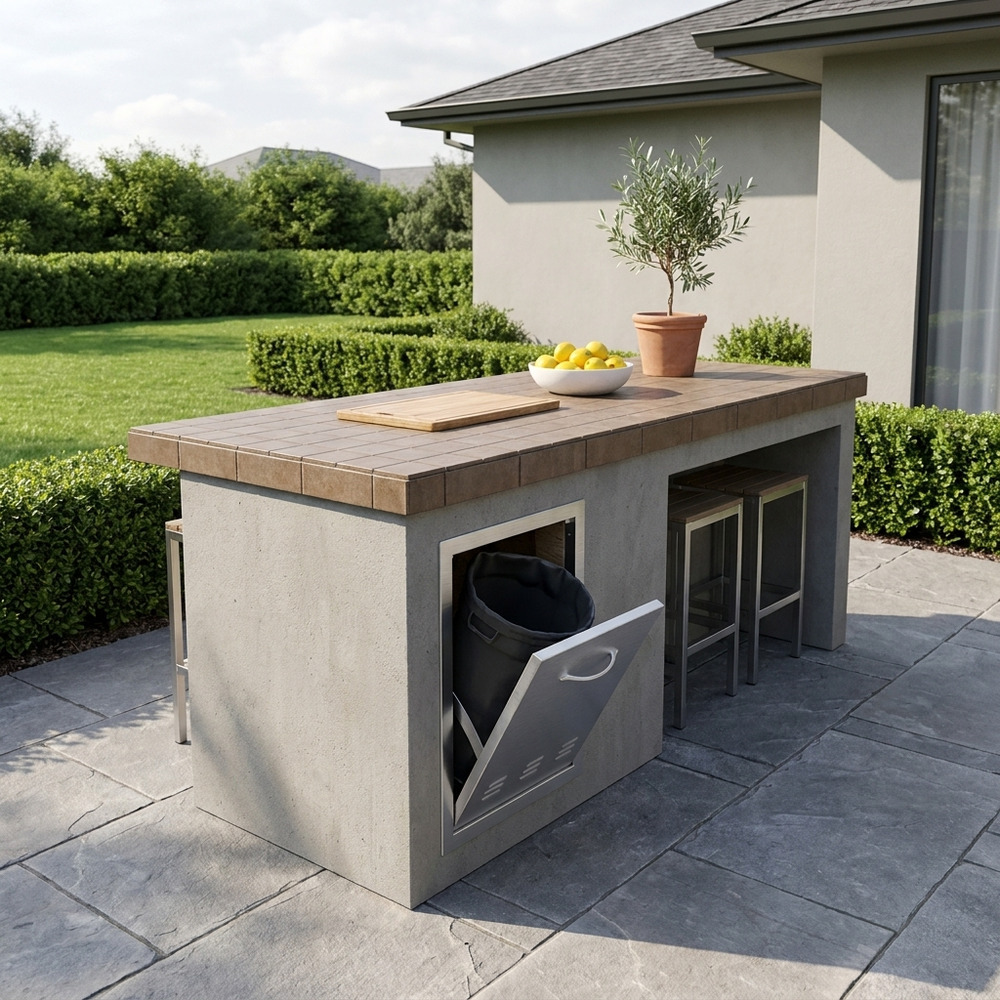

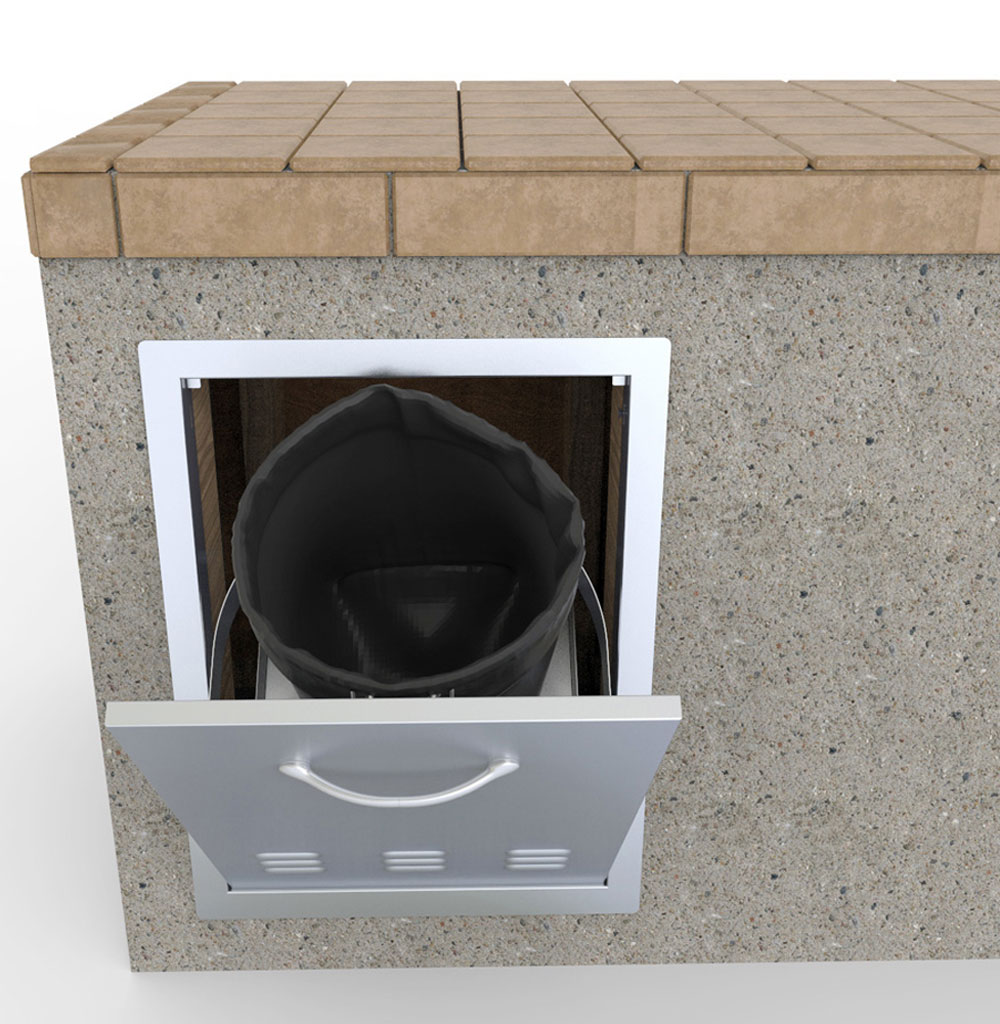

The Classic Series 20" Tank Tray Swivel Action Door Combo (C-LPCD20) holds a 25 lb propane tank and a trash bag behind one vented swivel door.
It measures 20" W x 27" H x 17" D and fits an 18-1/2" W x 24-1/2" H x 16" D cut-out. The door tilts out on a swivel action, and a fold-out base shelf and support arm carry the tank and the trash bag ring.

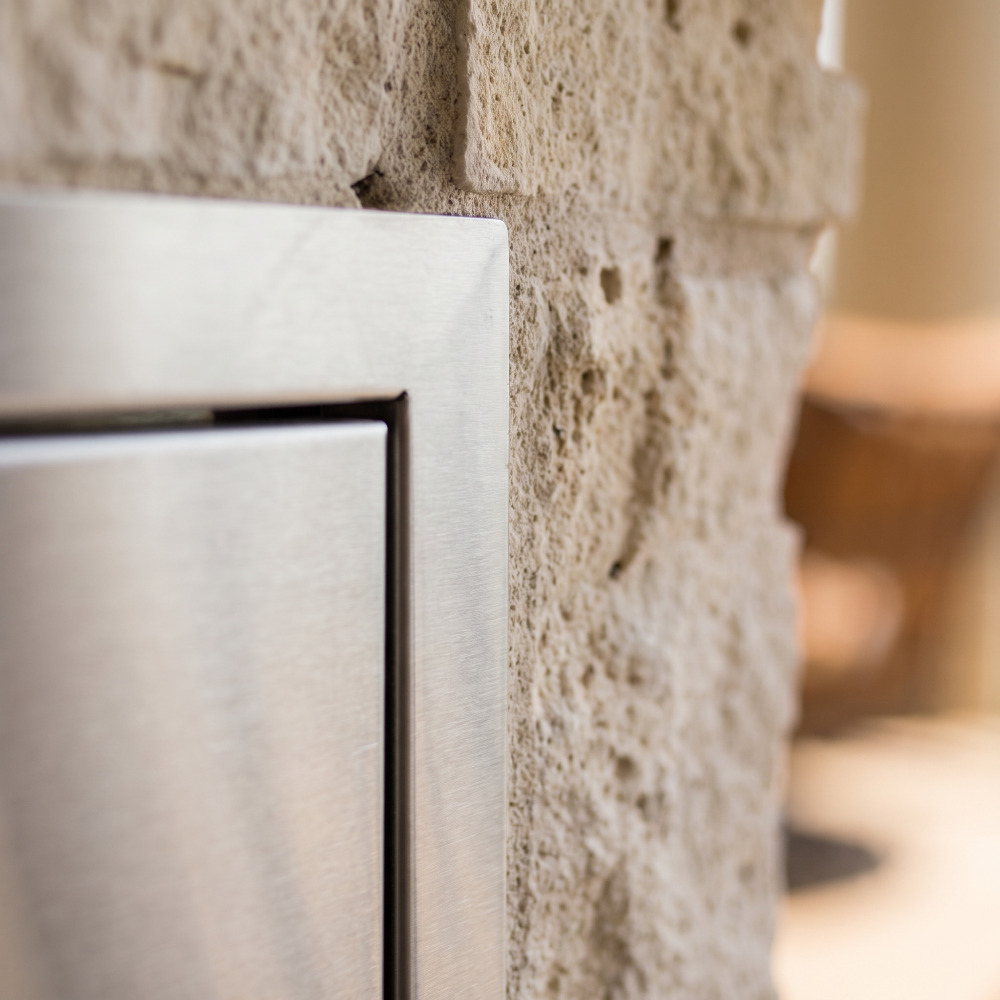

The frame and parts are 16 gauge 304 stainless steel and the door panel is 18 gauge 304, finished in No. 4 light brushed with the Classic Series flush style. It comes with a cast, chrome plated handle. The unit ships collapsed, the handle installs with a Phillips screwdriver, and the unit secures with screws through pre-cut side holes. See our warranty page for coverage.
| Name | Classic Series 20" Tank Tray Swivel Action Door Combo - C-LPCD20 |
|---|---|
| Item No. | C-LPCD20 |
| Series | Classic Series Flush Style |
| Product size | 20" W x 27" H x 17" D |
| Cut-out | 18-1/2" W x 24-1/2" H x 16" D |
Specifications
| Type | Propane tank door |
|---|---|
| Series | Classic Series Flush Style |
| Style | Classic |
| Width | 20" |
| Depth | 17" |
| Height | 27" |
| Dimensions | 20" W x 27" H x 17" D |
| Cut-Out Width | 18-1/2" |
| Cut-Out Depth | 16" |
| Cut-Out Height | 24-1/2" |
| Cut-Out Size | 18-1/2" W x 24-1/2" H x 16" D |
| Doors | 1 |
| Material | 16 gauge 304 stainless steel frame and parts, 18 gauge 304 door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Brand | Sunstone |
| Item Number | C-LPCD20 |
| Venting | Vented |
| Handle | Cast handle, chrome plated |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $262.00 | $235.00 | $235.00 | $198.00 | $198.00 |
| SKU | C-LPCD20 | A-DH1724 | A-DV1724 | A-DH1420 | A-DV1420 |
| Type | Propane tank door | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style |
| Style | Classic | Classic | Classic | Classic | Classic |
| Width | 20" | 27" | 20" | 23" | 17" |
| Depth | 17" | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" |
| Height | 27" | 20" | 27" | 17" | 23" |
| Cut-Out Width | 18-1/2" | 24-1/4" | 17-1/4" | 20-1/4" | 14-1/4" |
| Cut-Out Height | 24-1/2" | 17-1/4" | 24-1/4" | 14-1/4" | 20-1/4" |
| Doors | 1 | 1 | 1 | 1 | 1 |
| Door Swing | Not listed | Right swing (the left version is item A-DH1724-L) | Right swing (the left version is item A-DV1724-L) | Right swing (the left version is item A-DH1420-L) | Right swing (the left version is item A-DV1420-L) |
| Material | 16 gauge 304 stainless steel frame and parts, 18 gauge 304 door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Weight | Not listed | 11.5 lbs | Not listed | 11 lbs | Not listed |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | C-LPCD20 | A-DH1724 | A-DV1724 | A-DH1420 | A-DV1420 |
| Venting | Vented | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) | Vented (bottom louvers) |
| Handle | Cast handle, chrome plated | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) |
| Door Opening | Not listed | 180 degrees | 180 degrees | 180 degrees | 180 degrees |
| Hinges | Not listed | Exposed | Exposed | Exposed | Exposed |
| Depth To Frame Hole | Not listed | 1" | 1" | 1" | 1" |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (1)
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 48 hours after delivery.
Receiving Your Shipment
If you received an item that appears to have been damaged in-transit, call us immediately at 888-934-9449 or 512-487-5116, preferably while the driver is still there.
Inspect all freight before signing the driver's receipt. If damage is found, do not reject the shipment, note the damage on the receipt and contact us. For concealed damage, a claim must be filed within 48 hours of delivery.
FedEx and UPS claims are usually resolved within 14 business days. Freight shipper claims may take up to 120 calendar days.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
Items cannot have been installed or used. Customer is responsible for all return freight charges, unless the error is on our part. All returned goods must be in new condition and in original cartons, well packed.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
This tank tray and swivel door combo is exactly what my outdoor kitchen needed. The flush style looks super clean, and it's so convenient to have the propane tank hidden but easily accessible. Installation was straightforward, and the quality feels really solid.
I'm really impressed with the Sunstone Classic Series. I'm using mine for a propane tank, but the option to use it for a trash can is a smart design. The swivel action door operates smoothly and feels very durable, definitely built to last in an outdoor environment.
Overall, this 20" tank tray combo is a solid piece for my BBQ island. It integrates well and the stainless steel matches my other appliances. My only minor complaint is that the swivel action could be a tiny bit smoother, but it's not a deal-breaker.
This unit does exactly what it's supposed to do – keeps my propane tank out of sight and protected. The flush mount design is a nice touch, giving my outdoor kitchen a more finished look. For the price, it's a good value.
As a contractor, I appreciate well-made products, and this Sunstone combo fits the bill. The materials are robust, and the instructions made for a quick and easy installation into the outdoor kitchen frame. It's a reliable choice for clients.
