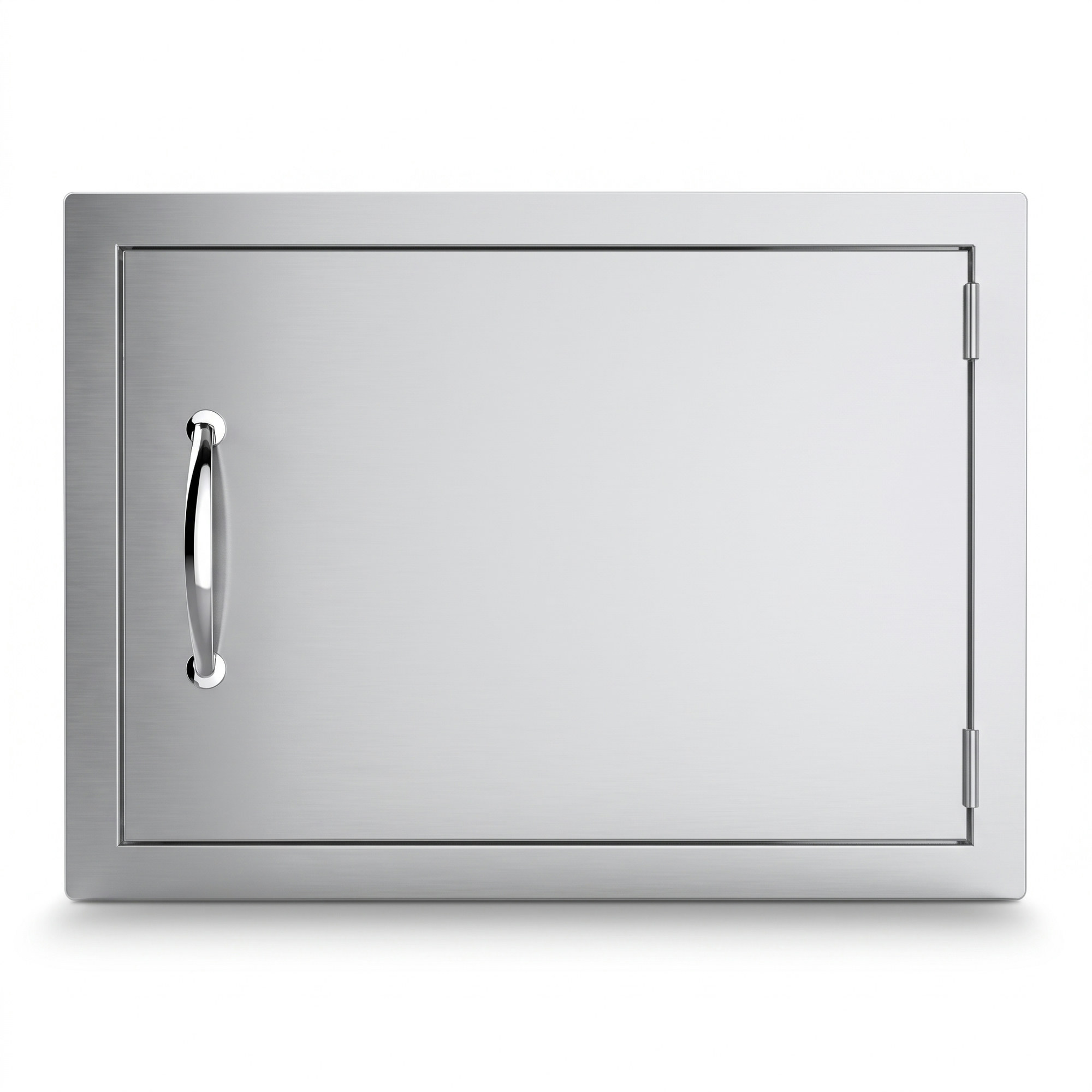

1 / 8Classic Series 17" x 24" Horizontal Door (Reversible) - DH1724
★★★★☆4.0 · 5 reviewsKey features
- Size: 27" W x 20" H x 1-5/8" D
- Cut-out: 24-1/4" W x 17-1/4" H
- Non-vented, reversible: rotate 180 degrees for left or right swing, opens 180 degrees
- Exposed hinges, 1-1/2" flange
- Magnets with a 430 stainless steel strike plate hold the door closed
- 16 gauge 304 stainless steel frame, 18 gauge door panel, No. 4 light brushed finish
Description
The Classic Series 17" x 24" Horizontal Door (Reversible) (DH1724) gives access to storage or utility lines inside an outdoor kitchen island.
It measures 27" W x 20" H x 1-5/8" D and fits a 24-1/4" W x 17-1/4" H cut-out, with a 1-1/2" flange. The door is not vented, so it is reversible: rotate it 180 degrees for a left or right swing. The door opens 180 degrees. The hinges are exposed, and magnets against a 430 stainless steel strike plate hold the door closed. It weighs 11.5 lbs.
The frame is 16 gauge 304 stainless steel and the door panel 18 gauge 304 stainless steel, in a No. 4 light brushed finish with the flush look of the other Classic Series components. It ships with the Polished Chrome Handle (zinc alloy, chrome plated).
See our warranty page for coverage.
| Name | Classic Series 17" x 24" Horizontal Door (Reversible) - DH1724 |
|---|---|
| Item No. | DH1724 |
| Series | ODK Components |
| Product size | 27" W x 20" H x 1-5/8" D |
| Cut-out | 24-1/4" W x 17-1/4" H |
Specifications
| Type | Access door |
|---|---|
| Collection | ODK Components |
| Series | Classic Series Flush Style |
| Width | 27" |
| Depth | 1-5/8" |
| Height | 20" |
| Dimensions | 27" W x 20" H x 1-5/8" D |
| Cut-Out Width | 24-1/4" |
| Cut-Out Height | 17-1/4" |
| Cut-Out Size | 24-1/4" W x 17-1/4" H |
| Doors | 1 |
| Door Swing | Reversible: rotate 180 degrees for left or right swing |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge |
| Finish | No. 4 brushed stainless |
| Installation | Built-in |
| Weight | 11.5 lbs |
| Brand | Sunstone |
| Item Number | DH1724 |
| Venting | Non-vented |
| Door Opening | 180 degrees |
| Hinges | Exposed |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) |
| Warranty | View warranty |
Compare models
| Compare5 models | |||||
|---|---|---|---|---|---|
| Price | $235.00 | $198.00 | $235.00 | $188.00 | $198.00 |
| SKU | DH1724 | DH1420 | A-DV1724-L | A-DH1724-L | DV1420 |
| Type | Access door | Access door | Access door | Access door | Access door |
| Series | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style | Classic Series Flush Style |
| Width | 27" | 23" | 20" | 27" | 17" |
| Depth | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" | 1-5/8" |
| Height | 20" | 17" | 27" | 20" | 23" |
| Cut-Out Width | 24-1/4" | 20-1/4" | 17-1/4" | 24-1/4" | 14-1/4" |
| Cut-Out Height | 17-1/4" | 14-1/4" | 24-1/4" | 17-1/4" | 20-1/4" |
| Doors | 1 | 1 | 1 | 1 | 1 |
| Door Swing | Reversible: rotate 180 degrees for left or right swing | Reversible: rotate 180 degrees for left or right swing | Left swing (the right version is item A-DV1724) | Left swing (the right version is item A-DH1724) | Reversible: rotate 180 degrees for left or right swing |
| Material | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel | 16 gauge 304 stainless steel frame, 18 gauge 304 stainless steel door panel |
| Gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge | 16 gauge |
| Finish | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless | No. 4 brushed stainless |
| Installation | Built-in | Built-in | Built-in | Built-in | Built-in |
| Weight | 11.5 lbs | 10 lbs | Not listed | 11.5 lbs | 11 lbs |
| Brand | Sunstone | Sunstone | Sunstone | Sunstone | Sunstone |
| Item Number | DH1724 | DH1420 | A-DV1724-L | A-DH1724-L | DV1420 |
| Venting | Non-vented | Non-vented | Vented (bottom louvers) | Vented (bottom louvers) | Non-vented |
| Hinges | Exposed | Exposed | Exposed | Exposed | Exposed |
| Handle | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) | Polished Chrome Handle (zinc alloy, chrome plated) |
| Door Opening | 180 degrees | Not listed | 180 degrees | 180 degrees | Not listed |
| Depth To Frame Hole | Not listed | Not listed | 1" | 1" | Not listed |
| Warranty | |||||
| You're viewing this | View model | View model | View model | View model |
Documents (5)
ODK spec sheets
Installation guides
Warranty
Warranty
Coverage depends on the product. See the warranty page for the full terms.
Shipping & returns
Shipping & Delivery
All orders ship free to the 48 contiguous United States.
Larger (freight) shipments are curb-side only. A signature and possibly assistance may be required for unloading. We will work with you to arrange a delivery date and time, but the final details will be between you and the freight carrier.
IMPORTANT: ALL LTL DELIVERIES ARE CURBSIDE UNLESS WHITE GLOVE FEES ARE PAID. All reports of damage must be made within 48 hours after delivery.
Receiving Your Shipment
If you received an item that appears to have been damaged in-transit, call us immediately at 888-934-9449 or 512-487-5116, preferably while the driver is still there.
Inspect all freight before signing the driver's receipt. If damage is found, do not reject the shipment, note the damage on the receipt and contact us. For concealed damage, a claim must be filed within 48 hours of delivery.
FedEx and UPS claims are usually resolved within 14 business days. Freight shipper claims may take up to 120 calendar days.
Returns & Exchanges
Returns are accepted within 60 days of original purchase, in original packaging and unused, for a full refund minus a 15% Restocking Fee.
Items cannot have been installed or used. Customer is responsible for all return freight charges, unless the error is on our part. All returned goods must be in new condition and in original cartons, well packed.
We recommend insuring products when shipping back to us. Returns will be rejected if the product is received damaged.
Customer reviews
About our reviews: they come from verified direct customers and from our authorized dealer network, including Home Depot, Lowe's, Amazon and other Sunstone dealers.
I just installed this 17" x 24" access door in my new outdoor kitchen, and it's fantastic! The reversible feature made installation a breeze, and the stainless steel feels really solid. It's exactly what I needed to finish off my grilling area.
This horizontal access door from Sunstone is top-notch. The 17" x 24" size is perfect for accessing my plumbing and gas lines, and it blends seamlessly with the rest of my outdoor kitchen. Definitely adds a touch of class and keeps things tidy.
The door itself is good quality stainless steel and the reversible hinge is a nice touch. However, for a single access door at $235, I expected a slightly more robust latching mechanism. It does the job, but it's not outstanding for the price.
The DH1724 door looks great once it's in, and the 17" x 24" opening is very practical. I found the instructions for reversing the door a little unclear, which added some time to the installation. It's sturdy, but getting it perfectly flush took some effort.
This Sunstone access door is a solid choice for any outdoor kitchen. The stainless steel construction feels durable and I appreciate the horizontal orientation for my specific setup. It's holding up well to the elements so far.
